| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Temperature Fluctuation: | ±1℃ | Standards:: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperatur |
|---|---|---|---|
| Heating Rate (heat Storage Area): | Up From RT To + 150℃ About 35min Is Required(or Specify) | Observation Window: | W300 *H400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation. |
| Carton Size: WxHxD(mm): | 1480×1450 ×1950(or Specify) | Safety Protection Device: | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection;. Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Re |
| Temperature Recovery Time: | Within 5 Mint | Condenser Mode: | Air-cooled(or Specify) |

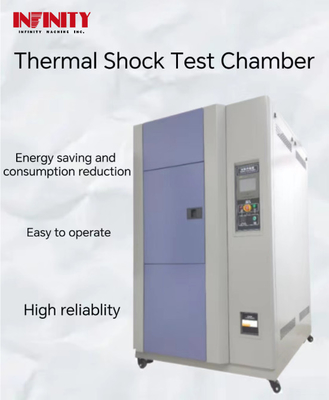

Multi-layer Insulating Glass Programmable High-Low Temperature Shock Test Chamber with Non-fluorine Refrigerant
The Thermal Shock Test Chamber has a temperature range of -40℃ to +150℃, making it suitable for a wide range of testing applications. The heating rate in the heat storage area is about 35 minutes, from RT to +150℃. The cooling rate in the cold storage area is approximately 55 minutes, from RT to -40℃. This allows for quick and accurate testing of the material's ability to withstand sudden temperature changes.
The Thermal Shock Test Chamber has a temperature fluctuation of ±1℃, ensuring that the temperature remains stable throughout the testing process. The chamber's door is designed to be opened alone, and the door frame has a heating wire to prevent condensation at low temperatures, ensuring accurate and reliable test results. This feature is especially important for products that require a precise and stable testing environment.
In summary, the Thermal Shock Test Chamber is an essential piece of equipment for industries that require high-quality and reliable products. Its temperature range, heating and cooling rates, and temperature fluctuation ensure the accurate and reliable testing of materials and products under extreme temperature changes. The addition of a door frame heating wire further enhances the product's reliability and accuracy. Choose the Thermal Shock Test Chamber for your testing needs and ensure the durability and reliability of your products.
| Safety protection device | Heater Air Defense Incineration Protection; Heater Over Current Protection; Circulation Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheating Protection; Compressor Over Current Protection; Over Voltage Under Reverse Phase Protection; Circuit Breaker; Leakage Protection. |
| Cooling rate (cold storage area) | Down From RT To-40℃ About 55min Is Required(or Specify) |
| Carton size | WxHxD(mm): 1480×1450 ×1950(or Specify) |
| Temperature recovery time | Within 5 Mint |
| Features | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Simple Operation: Programmed Color LCD Touch Controller Reference Group PID Control; Experimental Data Recording And Processing Mode Is Flexible. High Reliability: The Key Parts Are Imported Parts To Ensure The Service Life And Reliability. |
| Cooling medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Source | Source AC380V;50Hz;18KW(or Specify) |
| Thermal insulation chamber | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Material: Hard Polyurethane Foam Thermal Insulation Layer + Glass Fiber. |
| Temperature fluctuation | ±1℃ |
| Product name | Programmed Cold And Hot Impact Test Chamber |
The cooling medium used in this chamber is non-fluorine environmental protection refrigerant R404A R23, which complies with environmental protection regulations and is safe and non-toxic. The gas-liquid bypass mode is used to adjust the cooling capacity to achieve constant temperature and humidity, resulting in energy savings and consumption reduction.
The Programmable High-Low Temperature Shock Test Chamber features a programmed color LCD touch controller with reference group PID control, making operation simple and flexible. The experimental data recording and processing mode is also flexible. The key parts are imported to ensure the service life and reliability of the product.
The chamber door can be opened alone, and the door frame is equipped with a heating wire to prevent condensation at the door frame at low temperatures. The temperature recovery time is within 5 minutes.
The minimum order quantity for this product is 1, and the price is negotiable. The packaging details include clear sheet, sponge, and wood carton. The delivery time is 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram, and more. The supply ability is 200 sets per month.
Introducing the INFINITY IE31 Series Programmable High-Low Temperature Shock Test Chamber, a top-of-the-line thermal shock test chamber designed to meet your testing needs. Made in China with high-quality materials, this product is certified with CE and ISO standards, ensuring its reliability and safety.
Our minimum order quantity is 1, and we offer negotiable prices to fit your budget. Each product is carefully packaged in clear sheet, sponge, and wood carton to ensure safe delivery. Delivery time is estimated at 20-30 days after order confirmation, and we accept various payment methods such as TT, PayPal, and Moneygram.
With a supply ability of 200 sets per month, the INFINITY IE31 Series Programmable High-Low Temperature Shock Test Chamber is equipped with a range of features to meet your testing requirements. The carton size is WxHxD(mm): 1480×1450 ×1950 (or Specify), and it meets various standards such as GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, Military Standard GJB150.4-86, Military Standard GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367. 2-87 405 Temperature Shock Test, J / T10187-91Y73 Series Temperature Change Test Box-three Box Type, and IEC68-2-14_ Test Method N_ Temperature Change.
The thermal insulation chamber is made with high-quality carbon steel plate, with the surface treated with electrostatic color spray plastic. The left side of the box has a diameter of φ 50mm hole, and the inner wall is made with SUS304 # fog surface stainless steel plate. The thermal insulation material includes hard polyurethane foam thermal insulation layer and glass fiber.
The specimen holder is made with stainless steel and includes 2 layers of adjustable height, with each layer capable of bearing a weight of 30kg.
The cooling rate (cold storage area) is down from RT to -40℃, requiring about 55 minutes (or specify) to complete.
The Thermal Shock Test Chamber is a sophisticated product that requires expert technical support and services. Our team of experienced technicians and engineers are available to provide comprehensive support throughout the product lifecycle, from installation and commissioning to maintenance and repair.
We offer a range of services to ensure that your Thermal Shock Test Chamber operates at peak performance and delivers accurate and reliable results. Our services include:
Our team is committed to providing timely and effective support to minimize downtime and maximize productivity. We also offer customized service plans to meet the specific needs of your business and ensure the long-term reliability of your Thermal Shock Test Chamber.
Contact us today to learn more about our technical support and services for the Thermal Shock Test Chamber.
Product Packaging:
The Thermal Shock Test Chamber will be securely packaged in a wooden crate to ensure safe delivery. The crate will be lined with foam padding to protect the product from any potential damage during transportation. The product will also be wrapped in plastic to prevent any dust or debris from entering the chamber.
Shipping:
The Thermal Shock Test Chamber will be shipped via a freight carrier to the address provided by the customer. The customer will be responsible for unloading the product from the truck upon delivery. A tracking number will be provided to the customer once the product has been shipped.
Q: What is the brand name of the Thermal Shock Test Chamber?
A: The brand name of the Thermal Shock Test Chamber is INFINITY.
Q: What is the model number of the Thermal Shock Test Chamber?
A: The model number of the Thermal Shock Test Chamber is IE31 Series.
Q: Where is the Thermal Shock Test Chamber made?
A: The Thermal Shock Test Chamber is made in China.
Q: What certifications does the Thermal Shock Test Chamber have?
A: The Thermal Shock Test Chamber has CE and ISO certifications.
Q: What is the minimum order quantity for the Thermal Shock Test Chamber?
A: The minimum order quantity for the Thermal Shock Test Chamber is 1.
Q: What is the price of the Thermal Shock Test Chamber?
A: The price of the Thermal Shock Test Chamber is negotiable.
Q: What are the packaging details for the Thermal Shock Test Chamber?
A: The packaging details for the Thermal Shock Test Chamber are clear sheet+sponge+wood carton.
Q: What is the delivery time for the Thermal Shock Test Chamber?
A: The delivery time for the Thermal Shock Test Chamber is 20-30 days after order confirmed.
Q: What payment terms are accepted for the Thermal Shock Test Chamber?
A: The payment terms accepted for the Thermal Shock Test Chamber are TT, PAYPAL, Moneygram, and so on.
Q: What is the supply ability of the Thermal Shock Test Chamber?
A: The supply ability of the Thermal Shock Test Chamber is 200 sets per month.
