±0.05mm Displacement Measurement Accuracy Connector Insertion And Extraction Force Tester Plug And Pull Force Testing

Product Description:

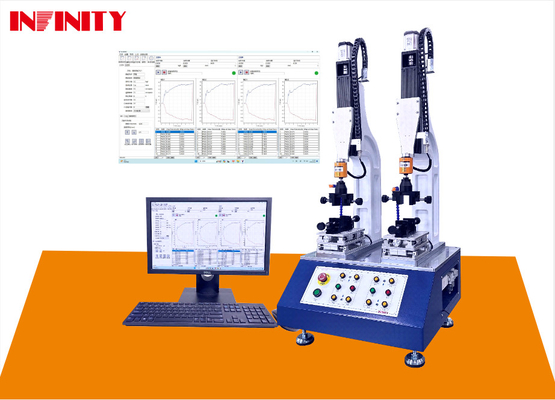

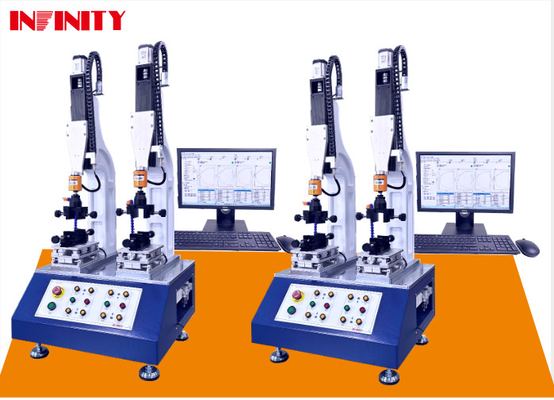

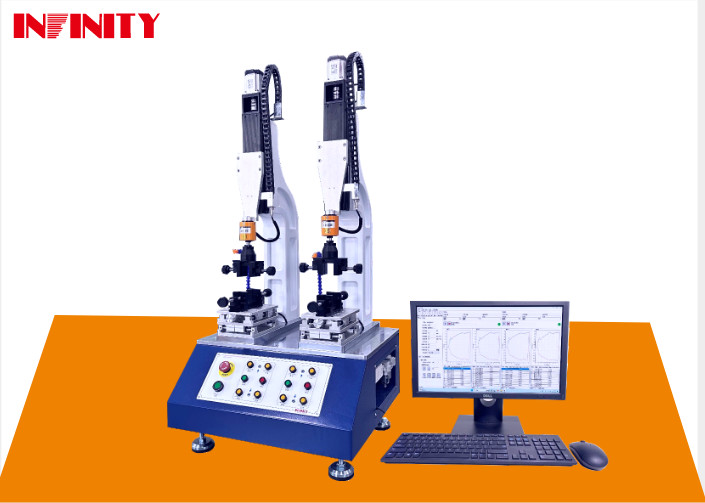

The IF5112 Series is a state-of-the-art force testing machine used for testing the force and displacement of connectors during insertion and extraction processes. It is specially designed for dual-station plug and pull force testing, making it the perfect solution for quality control and product development in various industries.

The IF5112 Series has a force value sensor capacity of 0.5KN (50Kg F), allowing for precise and accurate force measurements. Its maximum test trip is 150mm, providing a wide range for testing different connector sizes and types. The displacement decomposition degree of the machine is 0.001mm, ensuring high sensitivity in measuring the displacement of connectors.

• Dual-station Plug and Pull Insertion and Extraction Force Testing: The IF5112 Series is equipped with two stations for testing the force and displacement of connectors simultaneously, increasing efficiency and productivity.
• Connector Insertion and Extraction Testing: This machine is specifically designed for testing the force and displacement of connectors during insertion and extraction processes, providing accurate and reliable data for quality control.
• High Precision: With a displacement measurement accuracy of ±0.05mm, the IF5112 Series ensures precise and reliable force testing results.
• Easy to Use: The machine is user-friendly and easy to operate, making it suitable for both experienced and novice users.
• Product Number: The IF5112 Series is available in different models, each with a unique product number for easy identification and selection.

The IF5112 Series is widely used in various industries such as electronics, automotive, aerospace, and medical, for testing the force and displacement of connectors during insertion and extraction processes. It is an essential tool for quality control and product development, ensuring the reliability and durability of connectors.

The IF5112 Series is a versatile and reliable force testing machine that is essential for quality control and product development in various industries. With its dual-station plug and pull force testing, high precision, and easy operation, it is the perfect solution for accurate and efficient connector testing. Choose the IF5112 Series for your force testing needs and experience precise and reliable results every time.

Features:

• Product Name: Insertion and Extraction  Force Testing Machine
• Test speed accuracy: ±0.5%
• Force value sensor capacity: 0.5KN (50Kg F)
• Machine weight: About 185 Kg
• Machine size: 1426*618*1437mm
• Power: AC220V 5A 50Hz
• Key Features:
  • Plug and Pull Force Machine
  • Double Station Insertion Extraction Force Test Machine
  • Dual-station Plug and Pull Force Testing Connector Insertion and Extraction Force Testing Machine

Technical Parameters:

Applications:

INFINITY Insertion and Extraction Force Testing Machine - IF5112

This is a highly advanced and precise Double Station Insertion Extraction Force Test Machine designed and produced by INFINITY, a leading manufacturer in China. The IF5112 model is the perfect choice for testing the force and displacement of various materials and components. With its high accuracy and reliability, this machine is widely used in different industries and applications.

The INFINITY Insertion and Extraction Force Testing Machine - IF5112 is suitable for testing the force and displacement of various materials and components, such as rubber, plastic, metal, textile, and electronic components. It is widely used in industries like automotive, aerospace, construction, electronics, medical, and research laboratories. This machine is essential for quality control and product development, ensuring the safety and performance of the tested materials.

• Brand Name: INFINITY
• Model Number: IF5112
• Place of Origin: MADE IN CHINA
• Certification: CE, ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear sheet+sponge+wood carton
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT, PAYPAL, Moneygram, and so on
• Supply Ability: 300 sets / month
• Power: AC220V 5A 50Hz
• Machine Weight: About 185 Kg
• Displacement Measurement Accuracy: ±0.05mm
• Test Station: 2 Slot
• Displacement Decomposition Degree: 0.001mm

The IF5112 Insertion and Extraction Force Testing Machine is widely used in different scenarios, such as:

• Quality Control: This machine is essential for product testing and quality control in various industries. It ensures that the materials and components used in production meet the required standards and specifications.
• Research and Development: The high accuracy and reliability of the IF5112 make it an ideal choice for research and development purposes. It helps engineers and scientists to test and analyze the performance of different materials and components.
• Production Line: This machine can be integrated into the production line to perform real-time force and displacement testing. It helps to identify any defects or issues in the materials or components during the production process.
• Educational Purposes: The IF5112 is also used in educational institutions to teach students about force and displacement testing and its importance in different industries.

Overall, the INFINITY Insertion and Extraction Force Testing Machine - IF5112 is a highly versatile and reliable machine that meets the needs of various industries and applications. Its advanced features and precision make it a valuable asset for any company or organization looking to ensure the quality and performance of their products.

Customization:

Brand Name: INFINITY

Model Number: IF5112

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 300 sets / month

Displacement decomposition degree: 0.001mm

Product number: IF5112 Series

Maximum test trip: 150mm

Test speed accuracy: ±0.5%

Features:

• Real-time Display Of The Current Force Value And Displacement Changes
• Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram
• Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched
• The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers
• Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force, When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples
• The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information
• The Test Data Is Stored In A Local Database For Easy Access And Query
• The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English), And The Report Can Be Automatically Generated Without Input
• Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents
• Meet The Independent Control And Independent Testing Of 2 Groups Of Products

Key Words:

• Double Station Insertion Extraction Force Test Machine
• Two-station Plug and Pull Force Testing Connector Insertion and Extraction Force Testing Machine
• Two-station Plug and Pull Force Testing Connector Insertion and Extraction Force Testing Machine

Packing and Shipping:

Our Insertion and Extraction Force Testing Machine is carefully packaged and shipped with the utmost care to ensure safe delivery and protection of the product.

Each Insertion and Extraction Force Testing Machine is packaged in a sturdy and durable cardboard box to provide maximum protection during shipping. The product is also wrapped in bubble wrap to prevent any damage during transportation.

Our products are shipped through reliable and trusted shipping carriers to ensure timely and secure delivery. We offer both domestic and international shipping options to meet the needs of our customers.

For international shipping, the Insertion and Extraction Force Testing Machine is securely packed in a wooden crate for added protection during transit.

Once the product is shipped, customers will receive a tracking number to easily track the delivery status of their order.

For any inquiries or concerns regarding packaging and shipping, please contact our customer service team for assistance.

FAQ:

• Q: What is the brand name of this product?
• A: The brand name of this product is INFINITY.
• Q: What is the model number of this product?
• A: The model number of this product is IF5112.
• Q: Where is this product manufactured?
• A: This product is made in China.
• Q: Is this product certified?
• A: Yes, this product is certified with CE and ISO.
• Q: What is the minimum order quantity for this product?
• A: The minimum order quantity for this product is 1 set.
• Q: Can the price be negotiated?
• A: Yes, the price can be negotiated based on the order quantity.
• Q: How is this product packaged?
• A: This product is packaged with clear sheet, sponge, and wood carton.
• Q: How long is the delivery time?
• A: The delivery time is 20-30 days after the order is confirmed.
• Q: What are the accepted payment terms?
• A: The accepted payment terms for this product are TT, PayPal, Moneygram, and other methods.
• Q: What is the supply ability of this product?
• A: The supply ability of this product is 300 sets per month.
