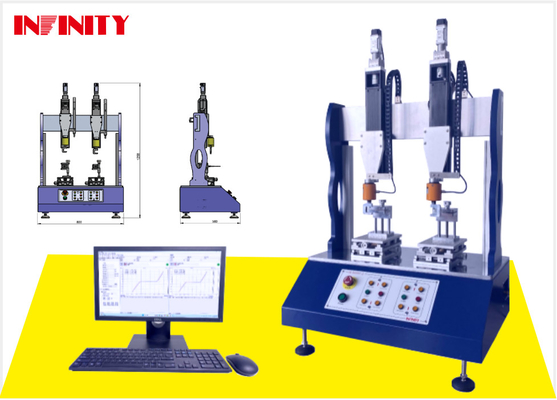

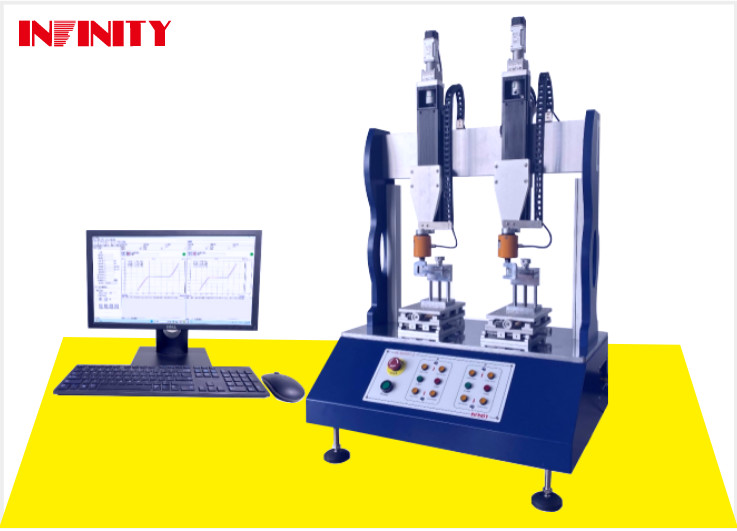

High Precision Dual-station Sway Force Testing Machine with Force value accuracy ±0.3%

Product Description:

The Dual-station Sway Force Testing Machine, also known as the Swing Force Tester or Double Station Sway Force Test Machine, is a high-precision and stable performance testing equipment used to measure the force and displacement of various materials and products. It is widely used in industries such as mechanical engineering, material science, and quality control.

The Dual-station Sway Force Testing Machine has a displacement decomposition degree of 0.001mm, which means it is able to accurately measure and record even the slightest displacement of the tested material. This ensures precise and reliable results for various testing purposes.

The machine has a displacement measurement accuracy of ±0.05mm, which guarantees high precision and accuracy in measuring the displacement of the tested material. This allows for precise analysis and evaluation of the material's performance under different force levels.

The Dual-station Sway Force Testing Machine is equipped with a force value sensor with a capacity of 0.5KN (50Kg F). This sensor is highly sensitive and is able to accurately measure the force applied to the material being tested, ensuring reliable and consistent results.

The machine requires an AC220V 3A 50Hz power supply, which is widely available and ensures stable and continuous operation of the equipment. It also comes with built-in protection mechanisms to prevent any damage to the machine or the tested material.

The Dual-station Sway Force Testing Machine is designed with advanced technology and has the following key features:

• High precision and accuracy in force and displacement measurement
• Stable and reliable performance
• Easy to operate and user-friendly interface
• Suitable for various materials and products
• Can perform both static and dynamic force testing

Overall, the Dual-station Sway Force Testing Machine is a versatile and essential equipment for any industry that requires precise and reliable force and displacement measurements. Its high-quality components and advanced features make it a valuable investment for any business looking to ensure the quality and performance of their products.

Features:

• Product Name: Dual-station Sway Force Testing Machine
• Force value sensor capacity: 0.5KN (50Kg F)
• Maximum test trip: 150mm
• Force value accuracy: ±0.3%
• Displacement decomposition degree: 0.001mm

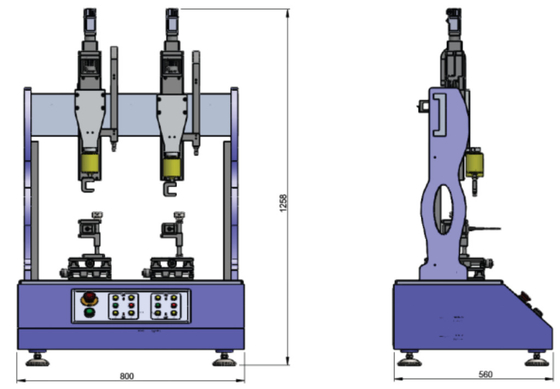

• Machine size: 1258*800*560mm
• Swing Force Tester
• Two-station Rocking Force Tester
• Two-station Rocking Force Tester
• LCD Display
• High Precision
• Compact Design

Technical Parameters:

Applications:

INFINITY Dual-station Sway Force Testing Machine is a high-quality and reliable product that is suitable for a wide range of applications. It is designed to accurately measure force and displacement, making it an essential tool for industries such as manufacturing, engineering, and research and development. With advanced features and a user-friendly interface, INFINITY Dual-station Sway Force Testing Machine is the perfect choice for businesses and professionals looking for precision and efficiency.

• Real-time Display: The current force value and displacement changes are displayed in real-time, allowing for accurate monitoring and analysis of the testing process.
• Force-displacement / Force-time Curve Diagram: The machine can display either a force-displacement or force-time curve diagram, providing a visual representation of the testing results.
• Language Interface: The machine has three language options: Simplified Chinese, Traditional Chinese, and English, making it suitable for customers from all over the world.
• Multiple Force Units: The force value unit can be switched between N, Lb, Gf, and Kgf, allowing for flexibility in testing different materials and products.
• Open Force Value Protection: The machine is equipped with a protection function that automatically stops movement when the set protection value is reached, reducing the risk of damage to the equipment and test samples.
• Test Method Management: The machine has a clear and logical test method management system, which includes a parameter correctness check and error information to ensure accurate testing results.
• Data Storage and Reporting: The test data is stored in a local database, making it easy to access and query. The report header can be customized and the reports can be automatically generated in multiple formats, including Word, Excel, and PDF.
• Double Station Sway Force Test Machine: With 2 test stations, the machine allows for independent control and testing of 2 groups of products simultaneously, increasing efficiency and productivity.

Customization:

Brand Name: INFINITY
Model Number: IF6112
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram, and so on
Supply Ability: 300 sets / month
Maximum Test Trip: 150mm

Machine weight: About 105 Kg
Application: The Equipment Is Suitable For All Kinds Of Small Appliances, Power Adapter, Connector Line Port For Various Swing Force Test, The Port After The Applied Dual-station Sway Force After Multiple Swing Test Results, So As To Evaluate Whether The Product Meets The Manufacturing Requirements.
Features:

• Real-time Display Of The Current Force Value And Displacement Changes
• Can Be Displayed: Force-displacement (kgf-mm), Or Force-time (kgf-time) Curve Diagram
• Language Has Simplified / Traditional / English Three Operation Interface Can Be Switched
• The Force Value Unit Has N, Lb, Gf, Kgf Can Be Switched, Suitable For Global Customers
• Open Force Value Protection Function, A Protection Value Is Set According To The Conventional Test Force
• When Operation Or Point Movement Will Automatically Stop Moving, To Reduce Damage To The Equipment And Precision Samples
• The Test Method Management Logic Is Clear, And The New Method Provides The Correctness Check Of The Parameters And Provides The Error Information
• The Test Data Is Stored In A Local Database For Easy Access And Query
• The Header Content Of The Report Can Be Modified At Any Time (both Chinese And English)
• The Report Can Be Automatically Generated Without Input
• Data Report, Curve Report Can Be Printed, And Exported As Word, Excel, PDF And Other Format Documents
• Meet The Independent Control And Independent Testing Of 2 Groups Of Products

Keywords: Dual-station Sway Force Testing Machine, Swing Force Tester, Real-time Display, Multiple Swing Test, Open Force Value Protection, Test Method Management Logic, Parameter Check, Local Database, Report Generation, Independent Control, Independent Testing

Packing and Shipping:

The Dual-station Sway Force Testing Machine will be carefully packaged to ensure safe delivery to our customers. The packaging will provide adequate protection against any potential damage during transportation.

• Dual-station Sway Force Testing Machine unit
• Power cord
• Instruction manual
• Calibration certificate

The Dual-station Sway Force Testing Machine will be packed in a sturdy cardboard box with sufficient padding to prevent any damage. The box will also be sealed with tape to ensure the contents remain secure during shipment.

The Dual-station Sway Force Testing Machine will be shipped via a reliable and reputable courier service to ensure timely and secure delivery. Customers will also have the option to select their preferred shipping method at the time of purchase.

For international orders, additional customs fees and taxes may apply. Customers are responsible for covering these fees.

FAQ:

• Q: What is the brand name of this force testing machine?
  A: The brand name of this force testing machine is INFINITY.
• Q: What is the model number of this force testing machine?
  A: The model number of this force testing machine is IF6112.
• Q: Where is this force testing machine made?
  A: This force testing machine is made in China.
• Q: Does this force testing machine have any certifications?
  A: Yes, this force testing machine is certified with CE and ISO.
• Q: What is the minimum order quantity for this force testing machine?
  A: The minimum order quantity for this force testing machine is 1.
• Q: Is the price negotiable for this force testing machine?
  A: Yes, the price for this force testing machine is negotiable.
• Q: How is this force testing machine packaged?
  A: This force testing machine is packaged with clear sheet, sponge, and wood carton.
• Q: What is the delivery time for this force testing machine?
  A: The delivery time for this force testing machine is 20-30 days after the order is confirmed.
• Q: What are the accepted payment terms for this force testing machine?
  A: The accepted payment terms for this force testing machine are TT, PayPal, Moneygram, and other methods.
• Q: What is the supply ability for this force testing machine?
  A: The supply ability for this force testing machine is 300 sets per month.
