| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Power: | AC220V;50Hz;5.5kw-13kw | Temperature Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And | Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. |
| Humidity Fluctuation: | ±1.0％RH | Temperature Decrease Rate: | From +20℃ To -20℃ Within 40min (No Load, Ambient Temperature +25℃) |
| Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） | Coolants: | Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic |

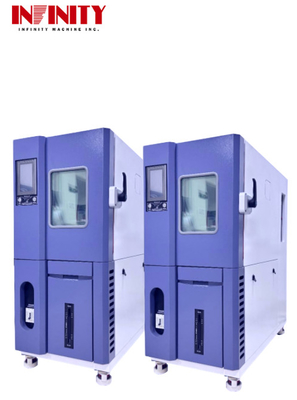

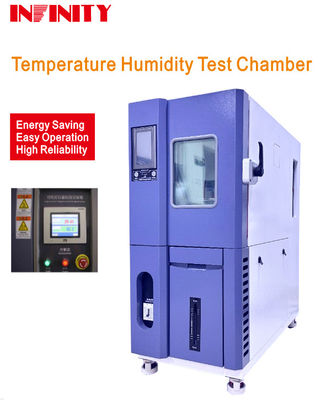

Constant Temperature Humidity Test Chamber Hard Polyurethane Foam Insulation Layer
This series of constant temperature and humidity box is a reliable product for environmental simulation tests on industrial products. It is equipped with precise temperature and humidity control, a wide control range, and meets the performance standards of GB5170.2.3.5.6-95. The product is designed to provide accurate and stable testing conditions for various industrial products.
The test chamber is equipped with 1 LED lighting device, installed on the window. This allows for clear visibility inside the chamber during testing.
The constant temperature and humidity test chamber is designed for environmental simulation reliability tests on industrial products. It is suitable for a wide range of testing requirements and meets the standards of GB5170.2.3.5.6-95. The chamber is equipped with advanced technology to provide precise and accurate control of temperature and humidity levels.
The humidity fluctuation of this test chamber is ±1.0％RH, ensuring that the testing conditions remain stable and consistent throughout the entire test process.
The condenser system of this test chamber is air-cooled, providing efficient cooling and ensuring a consistent temperature range for testing.
The heating rate of this test chamber is from -20℃ up to +100℃ within 40 minutes. This allows for quick and efficient heating, even when the chamber is unloaded and the ambient temperature is +25℃.
Overall, the constant temperature and humidity test chamber is a reliable and efficient product designed to meet the demanding testing requirements of various industrial products. Its advanced technology, precise control, and wide control range make it an ideal choice for environmental simulation tests.
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Sample holder: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.
Temperature fluctuation: ±0.5℃

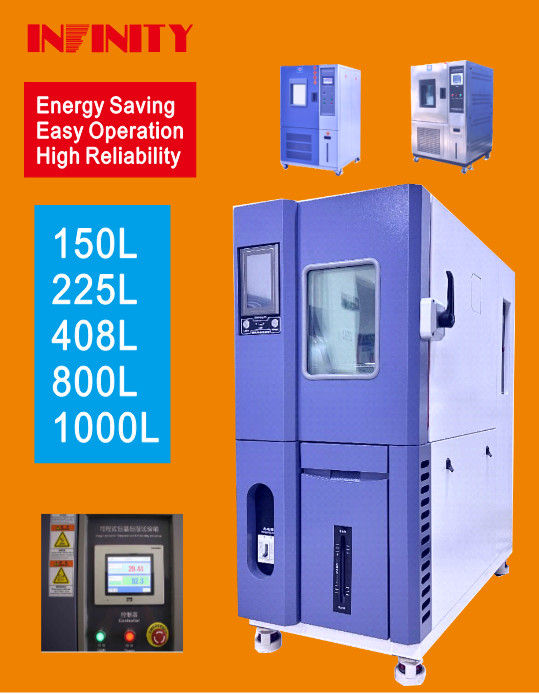

Models: IE10A1 150L, IE10A1 225L, IE10A1 408L, IE10A1 800L, IE10A1 1000L
Equipment Overview: This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicators Meet The Requirements Of GB5170.2.3.5.6-95.
Humidity uniformity: ±3.0％RH(no Load)
Key Features: Programmable constant temperature and humidity test chamber, Programmable High & Low Temperature humidity Test Chamber, Programmable constant temperature and humidity test chamber.
Application Scene:
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Models: IE10A1 150L, IE10A1 225L, IE10A1 408L, IE10A1 800L, IE10A1 1000L
Humidity deviation: ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
Temperature fluctuation: ±0.5℃
Heating rate: From -20℃ Up To +100℃ Within 40min (When Unloaded, The Ambient Temperature Is +25℃)
Environmental Testing Chambers: Our company, INFINITY, is a leading manufacturer of environmental testing chambers. We specialize in providing high quality and reliable climatic test chambers for various industries.
Climatic Test Chamber: Our constant temperature and humidity test chamber, model IE10A1, is designed to simulate various environmental conditions for testing the performance and durability of products.
Climatic Test Chamber Manufacturer: As a professional climatic test chamber manufacturer, we offer customized services to meet specific testing requirements of our clients. Our experienced engineers can work closely with you to design and manufacture a test chamber that meets your exact needs.
Customized Service: At INFINITY, we understand that every product and testing requirement is unique. That's why we offer customized services to ensure our constant temperature and humidity test chamber meets your specific testing needs.
Constant Temperature and Humidity Test Chamber: Our IE10A1 model is equipped with advanced temperature and humidity control system, ensuring precise and stable testing conditions. It is suitable for testing a wide range of products such as electronic components, pharmaceuticals, and other materials.
The constant temperature and humidity test chamber is carefully packaged to ensure safe delivery to our customers. The packaging materials used are durable and can withstand transportation and handling. Each unit is securely packed in a wooden crate to prevent any damage during shipping.
For international orders, the product is shipped via air or sea freight, depending on the customer's preference. Our team will coordinate with the chosen shipping company to ensure timely and efficient delivery.
Once the product reaches its destination, our team will assist with the unloading and installation process to ensure proper set-up and functioning of the test chamber.
For domestic orders, the product is shipped through a trusted courier service or our own delivery team, depending on the location. Our team will provide tracking information and estimated delivery time to keep customers updated on the status of their order.
Overall, our packaging and shipping process is designed to ensure the safe and timely delivery of our constant temperature and humidity test chamber, providing our customers with a seamless experience from purchase to installation.
