| Place of Origin: | MADE IN CHINA |
| Brand Name: | Infinity |
| Certification: | CE ISO |
| Model Number: | IE8-15 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Humidity Range: | 20%R.H～98%R.H | Specimen Limits: | This Test Equipment Prohibits: Testing And Storage Of Explosive, Flammable And Volatile Substance Samples Testing And Storage Of Corrosive Substance Samples Testing Or Storage Of Biological Specimens Testing And Storage Of Samples From Strong Electromagnet |
|---|---|---|---|
| Outer Box Size: | W3900×D2700×H2800mm | Outer Box Material: | The Outer Box Is Made Of Spray-coated Galvanized Color Steel Plate + Insulation Material + 304 Stainless Steel Plate Composite Assembly Plate, With A Total Thickness Of ≥150mm |
| Over Temperature Protector: | LED Digital Display Microcomputer Controller To Prevent The Test Sample From Being Damaged Due To Too High Or Too Low Temperature | Activity Slope: | Equipped With 2 Movable Slopes To Facilitate Products Entering And Exiting The Test Box |
| Box Door Structure: | Flat Recessed Rotatable Handle; Hinge: It Can Prevent The Door From Shaking At Will, And Its Material Is SUS #304; 2 Pieces Of High-tensile Silicone Foam Fasteners That Are Resistant To High And Low Temperatures; The Inner Frame Is Embedded With Heatin | Operation Mode: | Program Mode And Fixed Value Mode Automatically Select The Operating Status Of The Freezer According To Different Test Conditions. |
| Highlight: | Walk-in Humidity Testing Chamber,Constant Temperature Humidity Testing Chamber |
||

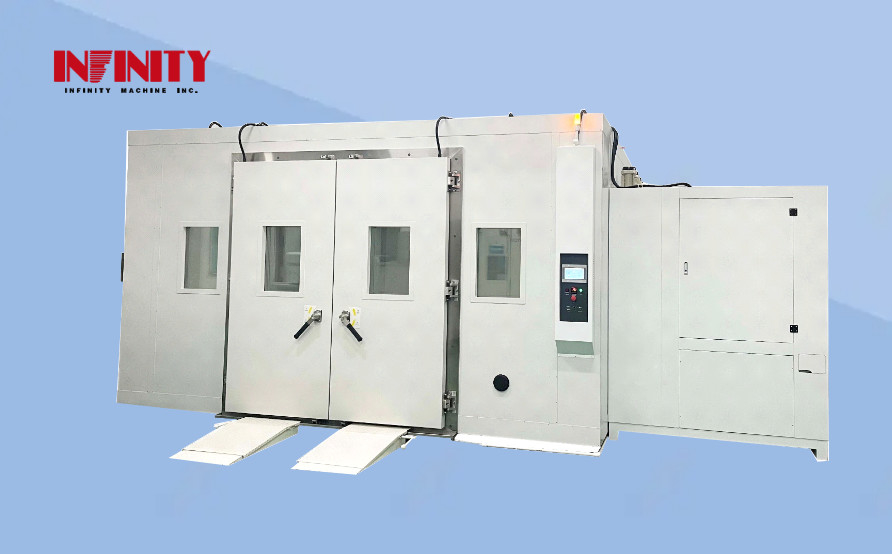

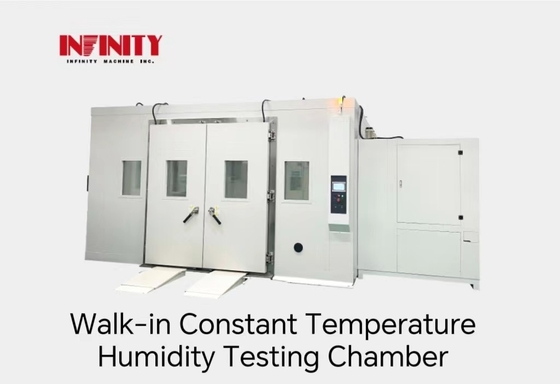

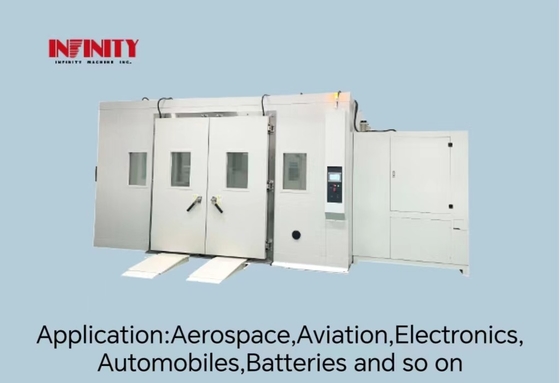

Walk-in Constant Temperature Humidity Testing Chamber With 16 Device Connection Capability
The air duct design of this Constant Temperature and Humidity Machine is unique as it adopts the structural design of air outlet from the upper part of the box and air return from the lower part. The air volume is also adjusted through the swing leaf window, which helps to achieve uniformity in the testing environment.
The controller of this Walk-in Temperature and Humidity Control Chamber is from Taiwan Wei Luntong, which ensures precise and stable temperature and humidity control. Additionally, it can communicate with the battery charge and discharge tester and can be integrated into the charge and discharge tester software. This feature allows for temperature and humidity adjustment of the environmental box, controlled through the software, making it more convenient to use.
The Constant Temperature Humidity Climatic Test Chamber is ideal for testing products and materials that require constant temperature and humidity conditions. This machine is widely used in various industries such as electronics, automotive, aerospace, and medical.
Keywords: Walk-in Temperature and Humidity Test Chamber, Walk-in Temperature and Humidity Control Chamber, Constant Temperature Humidity Climatic Test Chamber
| Product Name | Constant Temperature Humidity Climatic Test Chamber |
| Leakage/Surge Protection | Leakage Circuit Breaker Leakage Protection Electronic Surge Prevention Protection. Heater Short Circuit And Other Over Current Protection |
| Outer Box Size | W3900×D2700×H2800mm |
| Storage Environment Requirements | When The Equipment Is Working, The Temperature Of The Environment Should Be Kept Within 0~+4℃ (non-freezing) |
| Packaging | Transport Packaging Box That Meets The Requirements Of QB/BWD008-2001 |
| Water Tank Design | The Test Chamber Uses Tap Water To Automatically Enter The Water And Then Humidifies It After Treatment By A Pure Water Filtration Device. Water Conductivity ≤10us/cm; All Water Tanks And Water Trays In The Test Chamber Have The Lowest Drainage Outlet, Which Can Drain All The Water And Facilitate Cleaning. |
| Predetermined Area | Temperature: Adjust According To The Temperature Working Range Of The Equipment (upper Limit +5℃, Lower Limit -5℃) Humidity: (0~100)%RH (temperature And Humidity Test Equipment) |
| Test Data Display | Preset Value, Measured Value, Total Running Time, Running Time And Remaining Time Of Each Section, Heating Status; |
| Temperature and Humidity Measurement | Temperature: Class A PT100 Armored Thermocouple |
| Operation Mode | Program Mode And Fixed Value Mode Automatically Select The Operating Status Of The Freezer According To Different Test Conditions. |
| Humidity Measurement | Humidity: Electronic Sensor |
The Infinity IE8-15 Constant Temperature and Humidity Machine, made in China, is a high-quality product that is ideal for various testing scenarios where the temperature and humidity need to be controlled. This product has been certified with CE and ISO, which means that it meets all the quality standards required for such products.
The IE8-15 Constant Temperature and Humidity Machine is perfect for testing and storing samples that are not explosive, flammable, corrosive, biological, highly toxic, or radioactive. It has a temperature deviation of ≤±2℃ and can be controlled using the BTC Balanced Temperature Control Method + DCC (intelligent Cooling Control) + DEC (intelligent Electrical Control) (temperature Test Equipment) and BTHC Balanced Temperature And Humidity Control Method + DCC (intelligent Cooling Control) + DEC (intelligent Electrical Control) (temperature And Humidity Test Equipment).
The Infinity IE8-15 Constant Temperature and Humidity Machine can be used in various scenarios, including:
The IE8-15 Constant Temperature and Humidity Machine can also be used as a Walk-in Temperature and Humidity Control Chamber, which means that it can be used to simulate various environmental conditions for larger items or equipment.
The Infinity IE8-15 Constant Temperature and Humidity Machine comes with LAN interface, equipped with RS-485 interface, with local and remote communication functions. It also has a digital alarm communication with external equipment and communication protocol based on Modbus/TCP. The software usage environment requires an IBM PC compatible computer, PⅡ or above CPU, 128M or above memory, and Simplified (Traditional) Chinese (English) Windows 2000 or Windows XP operating system. The product can be packed using clear sheet+sponge+wood carton and has a delivery time of 20-30 days after order confirmed. The minimum order quantity is 1, and the supply ability is 200 sets per month. The price is negotiable and the payment terms include TT, PAYPAL, Moneygram, and so on.
The test chamber has 2 φ100mm holes on the side of the body, 2 stainless steel hole covers, and 2 φ100mm silicone plugs. The cooling rate is 85℃～-60℃ range, the whole process average is ≥1℃/min. It can communicate with the battery charge and discharge tester, and can be integrated into the charge and discharge tester software. The temperature and humidity adjustment of the environmental box can be controlled through the software.
The program capacity of the Infinity IE8-15 Constant Temperature Humidity Climatic Test Chamber is editable with a maximum of 120 pieces and 100 steps. The number of cycles can be set up to 999, and each time period can be set up to 999 hours in hours/minutes/seconds. Programs can be linked, and program segments can be set with inner loops.
The Constant Temperature And Humidity Test Chamber is a product designed to maintain specific levels of temperature and humidity to simulate various environmental conditions. It is ideal for testing the performance and reliability of materials, components, and products under different conditions. The product technical support and services offered include:
Our team of experts is dedicated to providing exceptional support and services to ensure that our customers get the most out of their Constant Temperature And Humidity Test Chamber.
Product Packaging:
The Constant Temperature and Humidity Test Chamber will be packaged in a sturdy wooden crate to ensure safe transportation. The chamber will be securely fastened to the crate with straps and bubble wrap will be used to provide additional protection.
Shipping:
The chamber will be shipped via a reliable and trusted freight carrier. The shipping cost will depend on the destination and the weight of the package. Once the shipment has been dispatched, the customer will be provided with a tracking number for their convenience.
Q1: What is the brand name of the constant temperature and humidity test chamber?
A1: The brand name of the product is Infinity.
Q2: What is the model number of the constant temperature and humidity test chamber?
A2: The model number of the product is IE8-15.
Q3: Where is the constant temperature and humidity test chamber made?
A3: The product is made in China.
Q4: What certifications does the constant temperature and humidity test chamber have?
A4: The product is certified with CE and ISO.
Q5: What is the minimum order quantity for the constant temperature and humidity test chamber?
A5: The minimum order quantity for the product is 1 set.
Q6: What is the price of the constant temperature and humidity test chamber?
A6: The price of the product is negotiable.
Q7: What are the packaging details for the constant temperature and humidity test chamber?
A7: The packaging details for the product include a clear sheet, sponge, and a wooden carton.
Q8: What is the delivery time for the constant temperature and humidity test chamber?
A8: The delivery time for the product is 20-30 days after order confirmation.
Q9: What are the payment terms for the constant temperature and humidity test chamber?
A9: The payment terms for the product include TT, PayPal, Moneygram, and other methods.
Q10: What is the supply ability for the constant temperature and humidity test chamber?
A10: The supply ability for the product is 200 sets per month.
