| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Models: | IE10A1 150L ,IE10A1 225L, IE10A1 408L, IE10A1 800L ,IE10A1 1000L | Temperature Uniformity: | ≦2.0℃ |
|---|---|---|---|
| Humidity Fluctuation: | ±1.0％RH | Safety Protection Device: | Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compres |
| Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And | Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Temperature Decrease Rate: | From +20℃ To -20℃ Within 40min (No Load, Ambient Temperature +25℃) |

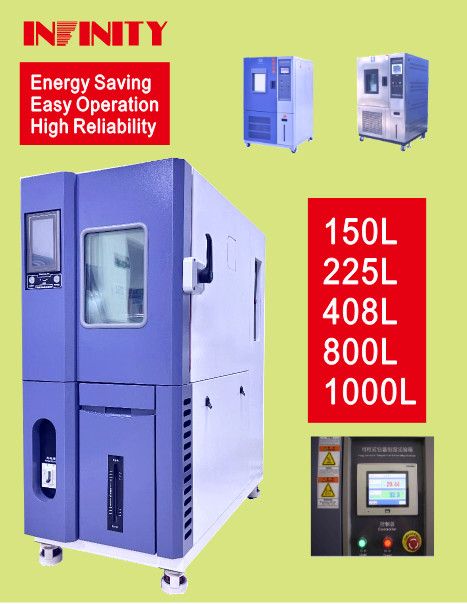

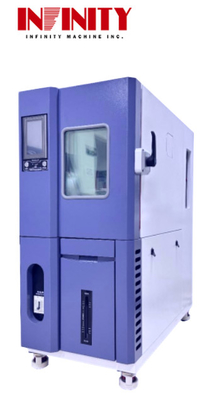

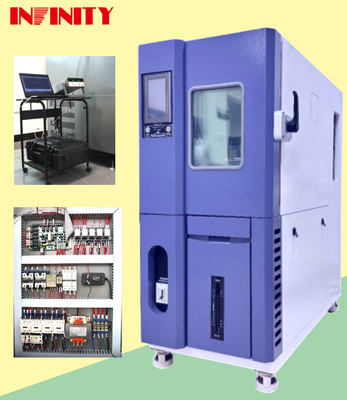

Materials Constant Temperature Humidity Test Chamber with Air-Cooled Condenser System
The constant temperature and humidity test chamber is a state-of-the-art environmental test chamber designed for precision control of temperature and humidity levels. This versatile chamber is ideal for a wide range of testing applications, including electronics, aerospace, pharmaceuticals, and more.
The humidity control range of this chamber is between 20%R.H to 98%R.H, making it suitable for a variety of testing needs. With this wide range, users can simulate various environmental conditions to ensure the reliability and performance of their products.
The humidity uniformity of this chamber is ±3.0％RH (no Load), ensuring precise and consistent humidity levels throughout the testing process. This feature is especially important for sensitive products that require a stable and controlled environment for accurate testing.
The chamber is equipped with 1 LED lighting device, installed on the window. This allows for better visibility and observation of the testing process, making it easier for users to monitor the progress and results of their tests.
The temperature uniformity of this chamber is ≦2.0℃, ensuring precise and consistent temperature levels throughout the testing process. This feature is crucial for testing products that are temperature-sensitive, as it provides accurate and reliable results.
The chamber is equipped with a France Tecumseh fully closed compressor for efficient and reliable cooling. This compressor is known for its high-quality and durability, making it ideal for long-term use in demanding testing environments.
The constant temperature and humidity test chamber is a reliable and versatile environmental test chamber that is essential for ensuring the quality and performance of products in various industries. With its precise control and wide range of features, it is an ideal choice for any environmental testing needs.
The constant temperature and humidity test chamber, also known as environmental chamber or climatic chamber, is a specialized equipment designed for testing the reliability of industrial products in simulated environmental conditions. This equipment is widely used in various industries such as electrical, electronic, mechanical, and automotive.
The INFINITY IE10A1 is a programmable constant temperature and humidity test chamber that can accurately control and maintain the temperature and humidity within a wide range. It meets the performance requirements of GB5170.2.3.5.6-95 and is suitable for various quality and reliability tests of products, parts, and materials.
The chamber is equipped with a high-performance refrigeration compressor from France Tecumseh, which ensures stable and efficient cooling. The temperature range of -20℃ to +150℃ can be easily achieved, making it suitable for both high and low temperature tests. The door of the chamber is designed to prevent condensation at low temperatures, ensuring the accuracy of the test results.
With its advanced programming and control capabilities, the INFINITY IE10A1 allows users to simulate various temperature and humidity change conditions for their products, parts, and materials. It is an essential tool for conducting reliability tests and ensuring the quality of products.
Don't compromise on the reliability of your products, choose the INFINITY IE10A1 for accurate and efficient constant temperature and humidity testing.
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Temperature range: -20℃ ～ +150℃
Sample holder: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.
Power: AC220V;50Hz;5.5kw-13kw
Inspection window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.
Equipment Overview: This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicators Meet The Requirements Of GB5170.2.3.5.6-95.
Customized Service: We offer customized service for our Constant Temperature and Humidity Test Chamber, including but not limited to size, temperature range, sample holder, power supply, and certification. Our experienced engineers will work closely with you to ensure that the chamber meets your specific requirements and standards. Contact us for more information on our Customized Service.
Keywords: Environmental Test Chamber, Environment Test Chamber, Programmable constant temperature and humidity test chamber, Customized Service
The constant temperature and humidity test chamber is packaged in a sturdy wooden case to ensure safe transportation. The interior of the case is lined with shock-absorbing materials to protect the chamber from any damage during shipping.
For international shipping, the product will be packed in compliance with international shipping standards and will include all necessary documentation for customs clearance.
We offer three shipping options for our customers:
Please note that any additional shipping charges or taxes imposed by the destination country will be the responsibility of the customer.
