| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Humidity Fluctuation: | ±1.0％RH | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |
|---|---|---|---|
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Door: | For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature. |
| Humidity Control Range: | 20%R.H～98%R.H | Equipment Overview: | This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicat |
| Power: | AC220V;50Hz;5.5kw-13kw | Condenser System: | Air-cooled |

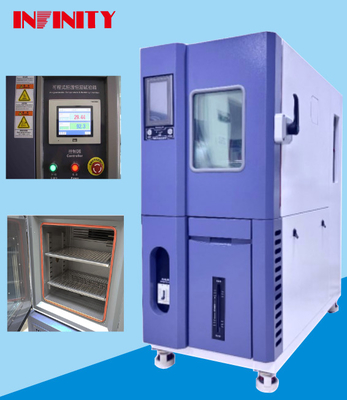

AC220V Programmable Constant Temperature Humidity Test Chamber with High Precision
This series of constant temperature and humidity test chamber is designed for environmental simulation reliability testing of industrial products. It is equipped with advanced temperature and humidity control system, providing accurate control and wide range of temperature and humidity settings. The performance indicators of this chamber meet the requirements of GB5170.2.3.5.6-95.
The humidity control range of this test chamber is between 20%R.H to 98%R.H, providing flexibility for users to simulate various environmental conditions for their products.
The test chamber is equipped with a W 300×H 400mm observation window on the door, allowing users to observe the test process without opening the door. The multi-layer hollow electrothermal coated glass on the observation window effectively prevents condensation and heat loss.
The humidity deviation of this test chamber is within ±3.0％RH (>75％RH) and ±5.0％RH (≤75％RH), ensuring accurate and stable humidity control during testing.
The constant temperature and humidity test chamber, also known as a climatic test chamber, is a highly advanced and versatile testing equipment designed to simulate different environmental conditions for various products. This chamber is specifically designed to maintain a constant temperature and humidity level, making it an ideal choice for testing the performance and durability of products under specific environmental conditions.
The constant temperature and humidity test chamber is suitable for a wide range of industries, including electronics, automotive, aerospace, and pharmaceuticals. It is used to test the quality, reliability, and performance of products under different temperature and humidity conditions. This chamber is also used to evaluate the effects of temperature and humidity on different materials, components, and finished products.
Imagine a company that manufactures electronic devices. They have just designed a new device that needs to be tested under extreme temperature and humidity conditions. They need to ensure that the device can perform well in various environments before it is released to the market.
The company decides to use the constant temperature and humidity test chamber, IE10A1 from INFINITY, to test their device. They set the temperature to -20℃ and the humidity to 80% and turn on the chamber. The device is placed inside the chamber and left for 40 minutes to reach the desired temperature and humidity level.
After the 40 minutes, the device is taken out and tested. The results show that the device has performed well under extreme conditions, proving its durability and reliability. The company is now confident to release the device to the market, thanks to the accurate and programmable testing capabilities of the constant temperature and humidity test chamber.

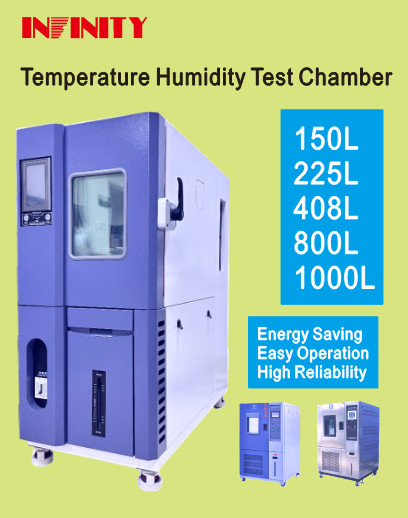

| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
From -20℃ Up To +100℃ Within 40min (When Unloaded, The Ambient Temperature Is +25℃)
Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And Reliability Test.
20%R.H～98%R.H
Programmable constant temperature and humidity test chamber, constant temperature and humidity test chamber, customization service
Our constant temperature and humidity test chamber is carefully packaged to ensure safe delivery and protection during transportation. The packaging includes a sturdy wooden crate and foam padding to prevent any damage to the chamber. The chamber is also wrapped in plastic to protect it from dust and moisture during transit.
For international shipping, we use air or sea freight depending on the destination and urgency of delivery. All necessary customs documentation and labeling will be provided to ensure smooth and timely delivery.
Once the chamber reaches its destination, our trained technicians will assist with installation and setup to ensure proper functioning of the equipment. We also provide on-site training and after-sales support to our customers.
For any inquiries or concerns regarding packaging and shipping, please do not hesitate to contact us.
