| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Equipment Overview: | This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicat | Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And |
|---|---|---|---|
| Safety Protection Device: | Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compres | Humidity Uniformity: | ±3.0％RH（no Load） |
| Temperature Range: | -20℃ ～ +150℃ | Power: | AC220V;50Hz;5.5kw-13kw |
| Condenser System: | Air-cooled | Temperature Decrease Rate: | From +20℃ To -20℃ Within 40min (No Load, Ambient Temperature +25℃) |
| Highlight: | High Low Temperature Humidity Test Chamber,Programmable Temperature Humidity Test Chamber |
||

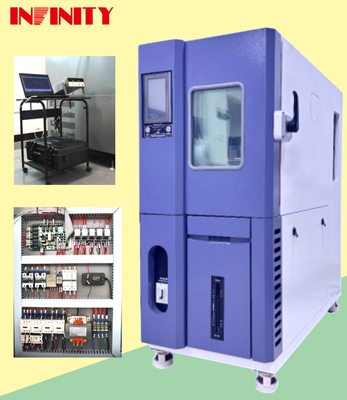

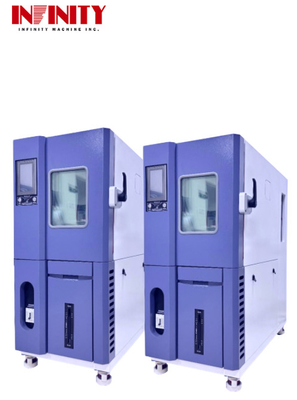

Programmable High Low Temperature humidity Test Chamber Temperature Range -20C ～ 150C
The Constant Temperature and Humidity Test Chamber is a high-quality environmental testing equipment designed for various industries. With its advanced technology and reliable performance, it helps to ensure the quality and reliability of products in different environmental conditions.
The chamber is equipped with 1 LED lighting device installed on the window, providing excellent visibility for monitoring and observation during testing.
The chamber has a temperature uniformity of less than 2.0℃, allowing for precise and accurate temperature control throughout the testing process.
The chamber is equipped with a fully closed compressor from France Tecumseh, known for its superior performance and reliability. This ensures stable and efficient cooling and heating functions for the chamber.
The temperature range of the chamber is -20℃ to +150℃, making it suitable for a wide range of testing needs in different industries.
Environment Test Chamber, Programmable Constant Temperature and Humidity Test Chamber, Programmable High & Low Temperature Humidity Test Chamber, Environmental Testing Equipment
The INFINITY IE10A1 constant temperature and humidity test chamber is a high-quality and reliable product designed to meet the testing needs of various industries. It is a programmable chamber that provides precise and stable temperature and humidity control, making it an ideal choice for climate and environmental testing.
The INFINITY IE10A1 constant temperature and humidity test chamber has the following key features:
The INFINITY IE10A1 constant temperature and humidity test chamber is suitable for various industries and products, including:
It is commonly used for quality and reliability testing to simulate temperature and humidity changes and assess product performance under different conditions. It is an essential tool for product development, production, and quality control.
The INFINITY IE10A1 constant temperature and humidity test chamber can be used in various testing scenarios, including:
It is also suitable for use in different environments, such as clean rooms, production lines, and testing rooms. Its compact size and easy installation make it a versatile choice for any testing setting.
The INFINITY IE10A1 constant temperature and humidity test chamber is a reliable and efficient product that meets international quality standards. With its precise and stable control, wide temperature range, and versatile application, it is your ideal choice for climate and environmental testing.
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Warm-keeping box:
Temperature Range: -20℃ ～ +150℃
Temperature Fluctuation: ±0.5℃
Features:
Equipment Overview:
This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicators Meet The Requirements Of GB5170.2.3.5.6-95
Key Words: Climatic Test Chamber, Programmable constant temperature and humidity test chamber, Programmable High & Low Temperature humidity Test Chamber, Environment Simulation Temperature and Humidity Test Chamber
The constant temperature and humidity test chamber is packaged in a sturdy wooden crate to ensure safe transportation. The chamber is securely wrapped and padded with foam to prevent any damage during shipping.
Shipping options:
Customs clearance and duties:
Customers are responsible for any customs clearance and duties that may apply for international shipments. Please consult with your local customs office for more information.
For more information on shipping and delivery, please contact us at info@constanttempchamber.com.
