| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. |
|---|---|---|---|
| Coolants: | Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo | Temperature Decrease Rate: | From +20℃ To -20℃ Within 40min (No Load, Ambient Temperature +25℃) |
| Temperature Uniformity: | ≦2.0℃ | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |

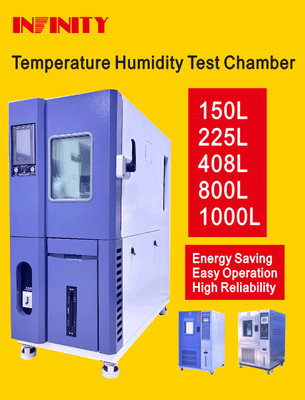

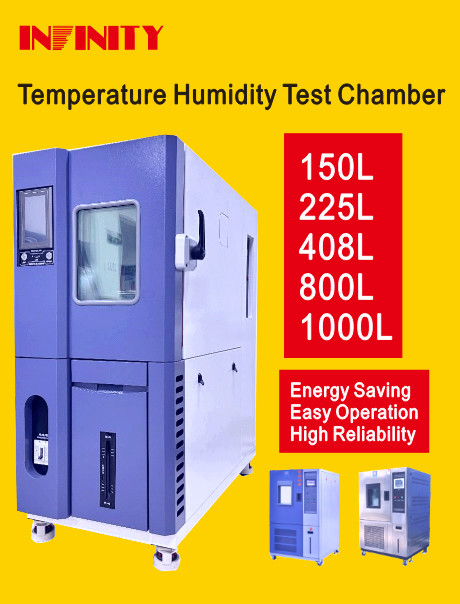

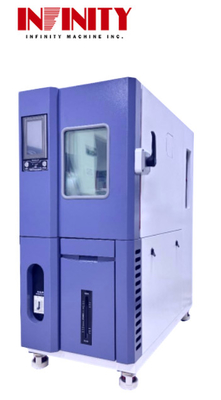

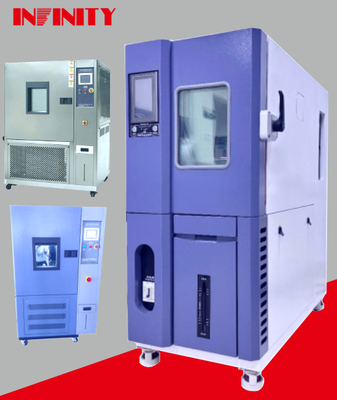

Safe Coolants Programmable Constant Temperature Humidity Test Chamber IE10A1 1000L
The constant temperature and humidity test chamber is a reliable and efficient equipment designed for environmental simulation testing of industrial products. With its advanced technology and precise control, it ensures accurate and stable temperature and humidity conditions for testing purposes.
This series of constant temperature and humidity test chamber is suitable for environmental simulation reliability test of industrial products. It is designed to meet the requirements of GB5170.2.3.5.6-95 and has the characteristics of high temperature and humidity control accuracy and a wide control range. It is an essential tool for product testing and quality control.
The constant temperature and humidity test chamber is equipped with a high-quality refrigeration compressor from France Tecumseh. The fully closed compressor ensures efficient and reliable cooling, making it suitable for long-term use.
The humidity fluctuation of the constant temperature and humidity test chamber is ±1.0％RH, ensuring stable and accurate humidity levels for testing purposes.
The constant temperature and humidity test chamber requires AC220V, 50Hz and has a power range of 5.5kw-13kw. It is equipped with a high-quality power system, ensuring stable and reliable operation.
Our INFINITY IE10A1 constant temperature and humidity test chamber is suitable for a wide range of industries, including electrical, electronic, mechanical and other products. It is also ideal for testing parts, materials and other products for quality and reliability. This chamber can simulate various temperature and humidity conditions to accurately test the performance of products.
Our INFINITY IE10A1 constant temperature and humidity test chamber uses a gas-liquid bypass mode to adjust the cooling capacity, ensuring precise and constant temperature and humidity control. The programmable color LCD touch controller with PID control makes it easy to operate and the flexible data recording and processing methods provide accurate and reliable results. The key parts of our chamber are imported to ensure a longer service life and improved reliability.
With a wide range of applications, accurate testing capabilities and user-friendly features, our INFINITY IE10A1 constant temperature and humidity test chamber is the perfect choice for your testing needs. Contact us today to learn more and to negotiate a price for your desired quantity.
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Humidity control range: 20%R.H～98%R.H
Refrigeration compressor: France Tecumseh Fully Closed Compressor
Condenser system: Air-cooled
Equipment Overview: This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicators Meet The Requirements Of GB5170.2.3.5.6-95
Temperature decrease rate: From +20℃ To -20℃ Within 40min (No Load, Ambient Temperature +25℃)
Our INFINITY IE10A1 model is a programmable constant temperature and humidity test chamber that offers precise and reliable temperature and humidity control. It is designed to meet the requirements of GB5170.2.3.5.6-95 and is suitable for environmental simulation reliability testing of various industrial products. With a wide control range and high accuracy, this test chamber provides advanced testing capabilities for your products.
Key Features:
We understand that every industry and product has unique testing requirements. That's why we offer customization services to cater to your specific needs. Our expert team will work closely with you to design and manufacture a constant temperature and humidity test chamber that meets your exact specifications. Whether it's a different control range, faster temperature decrease rate, or additional features, we are dedicated to providing a tailored solution for your testing needs.
Place your order now and experience the unbeatable quality and reliability of our INFINITY IE10A1 constant temperature and humidity test chamber.
Our constant temperature and humidity test chambers are carefully packaged to ensure safe delivery to our customers. Each chamber is first placed inside a sturdy wooden crate to protect it from any damage during transportation.
For international shipments, the chambers are then placed inside a waterproof container and loaded onto a freight ship or plane. We also provide necessary documentation and customs clearance to ensure smooth delivery.
Delivery time may vary depending on the destination and shipping method. Please contact us for more information.
We accept payment through bank transfer and letter of credit. Payment terms may vary depending on the order size and customer's credit history.
