| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Temperature Decrease Rate: | From +20℃ To -20℃ Within 40min (No Load, Ambient Temperature +25℃) |
|---|---|---|---|
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo | Humidity Control Range: | 20%R.H～98%R.H |
| Power: | AC220V;50Hz;5.5kw-13kw | Temperature Uniformity: | ≦2.0℃ |
| Refrigeration Compressor: | France Tecumseh Fully Closed Compressor | Humidity Fluctuation: | ±1.0％RH |

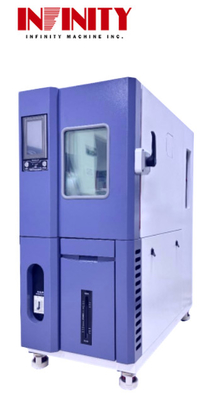

Programmable Constant Temperature Humidity Test Chamber for Customer Requirements
This series of constant temperature and humidity test chamber is a programmable and energy-saving equipment designed for environmental simulation reliability testing of industrial products. It is equipped with advanced features such as precise temperature and humidity control, easy operation, and high reliability to ensure accurate and reliable test results.
Coolants: The test chamber uses non-fluorine environmental refrigerant R404A, which is in line with environmental regulations and is safe and non-toxic.
Temperature Uniformity: The temperature uniformity of the test chamber is ≦2.0℃, ensuring consistent and accurate temperature control during testing.
Humidity Control Range: The humidity control range of the test chamber is between 20%R.H and 98%R.H, providing a wide range of humidity levels for various testing needs.
Features:
Equipment Overview: This constant temperature and humidity test chamber meets the requirements of GB5170.2.3.5.6-95 and is suitable for a wide range of environmental simulation reliability tests for industrial products.
With its advanced features and high-performance indicators, this programmable constant temperature and humidity test chamber is the ideal choice for precise and reliable testing of industrial products. It is compliant with environmental regulations, safe and easy to operate, and guarantees high reliability and accuracy for all your testing needs.
The INFINITY IE10A1 constant temperature and humidity test chamber is a programmable environmental test equipment that is designed to simulate various climates and conditions for testing the performance of products. It is widely used in industries such as electronics, aerospace, automotive, and medical for reliability and quality testing.
Equipped with advanced technology, the IE10A1 can precisely control the temperature and humidity levels inside the chamber. It has a temperature uniformity of ≦2.0℃ and a humidity deviation of ±3.0％RH(＞75％RH) and ±5.0％RH(≤75％RH), ensuring accurate and consistent testing results.
The INFINITY IE10A1 is suitable for various testing scenarios, including:

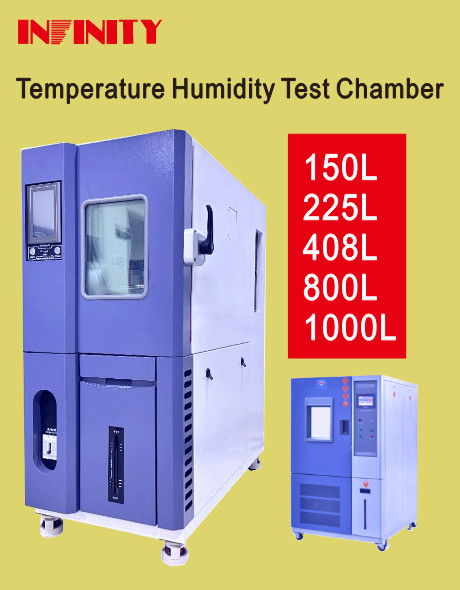

| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Our constant temperature and humidity test chamber is fully customizable to meet your specific testing needs. With our comprehensive range of features and options, you can tailor the chamber to suit your unique requirements.
Our brand, INFINITY, stands for high quality and reliability. With our constant temperature and humidity test chamber, you can trust that your products will be tested with the utmost precision and accuracy.
Our model, IE10A1, is designed for environmental simulation reliability testing of industrial products. It offers a wide control range and high temperature and humidity control accuracy, meeting the requirements of GB5170.2.3.5.6-95.
Our constant temperature and humidity test chamber is proudly made in China, utilizing state-of-the-art technology and superior craftsmanship.
Our chamber is CE and ISO certified, ensuring that it meets international standards for quality and safety.
We have no minimum order quantity, allowing you to order only what you need for your testing purposes.
We offer competitive and negotiable prices for our constant temperature and humidity test chamber, making it accessible for all businesses.
Our chamber is packaged with care to ensure safe delivery. It includes a clear sheet, sponge, and wood carton for added protection.
With a fast delivery time of 20-30 days, you can receive your constant temperature and humidity test chamber in a timely manner.
We offer multiple payment options, including TT, PayPal, and Moneygram, giving you flexibility and convenience in paying for your order.
Our production capacity allows us to supply 200 sets of constant temperature and humidity test chambers per month, ensuring we can meet your demand.
Our chamber has a rapid temperature decrease rate, going from +20℃ to -20℃ in just 40 minutes, with no load and an ambient temperature of +25℃.
Our chamber is equipped with 1 LED lighting device, installed on the window, allowing you to easily monitor your products during testing.
Our chamber has a precise humidity control, with a fluctuation of only ±1.0％RH.
Our constant temperature and humidity test chamber is suitable for a wide range of applications, including testing of electrical, electronic, and mechanical products, as well as parts and materials. It can simulate high and low temperature, wet and hot conditions, allowing you to test the quality and reliability of your products.
This series of constant temperature and humidity test chamber is designed for environmental simulation reliability testing of industrial products. It offers precise temperature and humidity control, wide control range, and reliable performance, meeting industry standards for testing.
We use high quality and durable packaging materials to ensure the safety of the constant temperature and humidity test chamber during transportation. The packaging materials are also designed to protect the product from any potential damage or moisture. Our packaging process follows strict quality control measures to ensure that the product reaches our customers in perfect condition.
Our standard packaging for the constant temperature and humidity test chamber includes:
To further ensure the safety of the product, we also offer customized packaging solutions according to our customers' specific requirements.
For shipping, we work with reliable and efficient logistics partners to deliver the product to our customers in a timely and cost-effective manner. We offer various shipping options, including air, sea, and land transportation, to meet different needs and budgets.
Upon delivery, we provide detailed instructions for unpacking and setting up the constant temperature and humidity test chamber. Our customer service team is also available to assist with any questions or concerns.
