| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Temperature Fluctuation: | ±0.5℃ | Humidity Uniformity: | ±3.0％RH（no Load） |
|---|---|---|---|
| Temperature Range: | -20℃ ～ +150℃ | Equipment Overview: | This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicat |
| Lighting Device: | 1 LED Lighting Device, Installed On The Window. | Temperature Uniformity: | ≦2.0℃ |
| Heating Rate: | From -20℃ Up To +100℃ Within 40min (When Unloaded, The Ambient Temperature Is +25℃) | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |

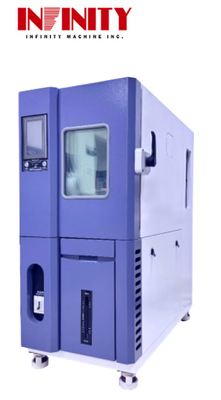

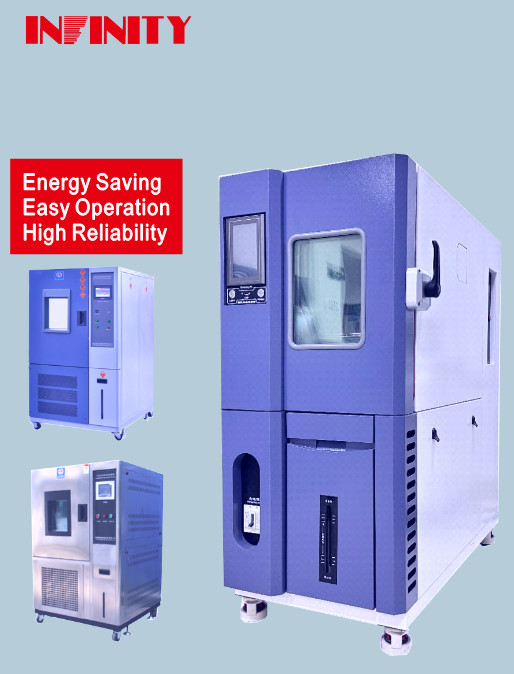

Temperature Uniformity ≤2.0C -20C～150C Constant Temperature Humidity Test Chamber
The constant temperature and humidity test chamber is a highly advanced and reliable product designed to accurately simulate a wide range of environmental conditions. It is commonly used in various industries such as electronics, automotive, aerospace, and pharmaceuticals for testing the performance and durability of products under different climate conditions. This chamber is an essential tool for quality control and research and development purposes.
Climate Test Chamber, Climatic Test Chamber, Environmental Test Chambers, Temperature and Humidity Chambers
The INFINITY IE10A1 Constant Temperature and Humidity Test Chamber is a high-quality industrial test chamber designed to provide precise environmental testing for a variety of applications. With its advanced technology and reliable performance, this test chamber is perfect for use in laboratories, research facilities, production plants, and other industrial settings.
The INFINITY IE10A1 is a programmable constant temperature and humidity test chamber that offers a wide range of customizable testing options. It is equipped with a microprocessor-based controller that allows for precise temperature and humidity control, making it ideal for conducting various climatic tests.
Safety is our top priority, which is why our test chamber is equipped with multiple safety features to ensure safe operation. These include:
The humidity deviation of our test chamber is ±3.0％RH(＞75％RH) and ±5.0％RH(≤75％RH), ensuring accurate and consistent results for all your testing needs.
The temperature decrease rate of our test chamber is from +20℃ to -20℃ within 40 minutes (No Load, Ambient Temperature +25℃), providing fast and efficient cooling for your testing requirements.
Our test chamber uses non-fluorine environmental refrigerant R404A, which is in line with environmental regulations and is safe and non-toxic. This makes it an environmentally friendly choice for your testing needs.
The INFINITY IE10A1 is suitable for a wide range of applications and can be used in various scenarios, such as:
The INFINITY IE10A1 Constant Temperature and Humidity Test Chamber can be ordered with the following specifications:
With its advanced features, reliable performance, and customizable options, the INFINITY IE10A1 Constant Temperature and Humidity Test Chamber is the perfect choice for all your environmental testing needs. Contact us today to place your order!
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
This is a customizable service for our INFINITY brand constant temperature and humidity test chamber.
We specialize in industrial test chambers, including programmable constant temperature and humidity test chambers, programmable high & low temperature humidity test chambers, temperature and humidity test chambers, and constant temperature and humidity chambers. Our INFINITY brand test chambers are reliable, efficient, and customizable to meet your specific needs. Contact us now to discuss your requirements and get a quote.
Package: The constant temperature and humidity test chamber will be packed in a sturdy wooden box to ensure its safety during transportation. The wooden box will be lined with foam to provide extra protection against any potential damage.
Shipping: The test chamber will be shipped via a reliable and experienced courier service to ensure timely and safe delivery. The shipping cost will be calculated based on the destination and weight of the package.
Delivery Time: The delivery time will depend on the destination and the shipping method chosen. Generally, it will take 3-5 business days for international shipping and 1-2 business days for domestic shipping.
Tracking: Once the test chamber is shipped, a tracking number will be provided to the customer for easy tracking of the package.
Customs: Any necessary customs duties or taxes will be the responsibility of the customer. Please check with your local customs office for any applicable fees.
Installation: The constant temperature and humidity test chamber will be pre-assembled before shipping. Detailed installation instructions will be provided to ensure easy and proper installation upon arrival.
Warranty: The test chamber will be covered by a 1-year warranty. In case of any defects or malfunctions, please contact us for prompt assistance.
For any further questions or concerns regarding packaging and shipping of the constant temperature and humidity test chamber, please don't hesitate to contact us.
