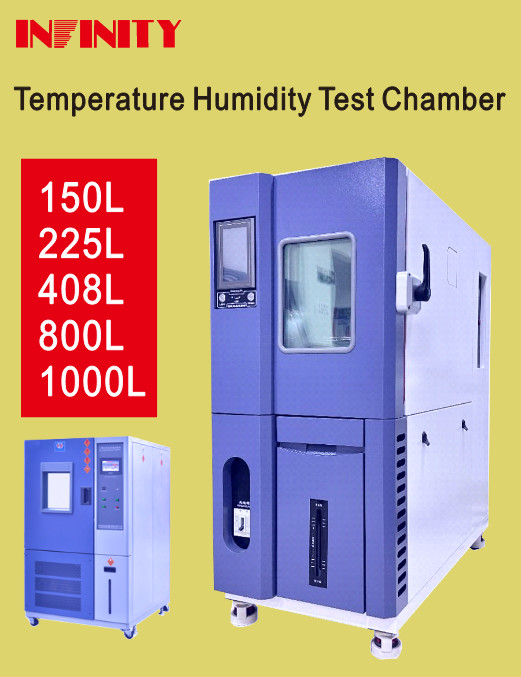

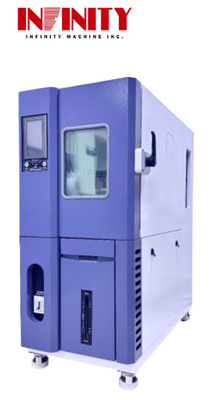

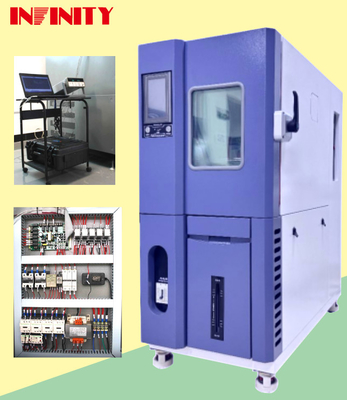

Programmable Constant Temperature Humidity Test Chamber For Environmental Testing
The Constant Temperature and Humidity Test Chamber is a programmable high & low temperature humidity test chamber designed to provide precise and stable temperature and humidity control for various testing applications. It is suitable for use in laboratories, quality control departments, and research facilities.
The product is available in multiple models, including the IE10A1 150L, IE10A1 225L, IE10A1 408L, IE10A1 800L, and IE10A1 1000L, to meet different testing needs and sample sizes.
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Overall, the Constant Temperature and Humidity Test Chamber is a reliable and efficient tool for conducting precise and accurate temperature and humidity tests for various products. Its programmable control, high & low temperature humidity test capabilities, and temperature uniformity make it a valuable asset for any testing facility.
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
This constant temperature and humidity test chamber, also known as environment test chamber or climatic test chamber, is a high-quality product designed and manufactured by INFINITY. It is widely used in various industries including electronics, pharmaceuticals, automotive, aerospace, and others, for testing and evaluating the performance and reliability of products under different temperature and humidity conditions.
Choose INFINITY's constant temperature and humidity test chamber for accurate and reliable testing results. With its energy-saving design, user-friendly operation, and high-quality components, it is the perfect choice for your testing needs. Contact us now for more information and to get a competitive quote!
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Humidity Uniformity: ±3.0％RH (no Load)
Humidity Deviation: ±3.0％RH (>75％RH) ±5.0％RH (≤75％RH)
Door: For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature.
Features: Energy saving and consumption reduction: Use gas-liquid bypass mode to adjust the cooling capacity to achieve constant temperature and humidity. Easy to operate: Programmable color LCD touch controller includes PID control; experimental data recording and processing methods are flexible. High reliability: The key parts are imported parts to ensure service life and reliability.
Refrigeration Compressor: France Tecumseh fully closed compressor
Customized Services: Our company provides customized services for our Climatic Test Chamber to meet the specific needs of our customers. We offer various options for size, temperature and humidity range, and additional features according to customer requirements.
Our Climatic Test Chamber is energy efficient and easy to operate, making it an ideal choice for various testing and research purposes. With high reliability and quality components, our products are made in China with the highest standards.
