| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Humidity Fluctuation: | ±1.0％RH | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |
|---|---|---|---|
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo | Temperature Decrease Rate: | From +20℃ To -20℃ Within 40min (No Load, Ambient Temperature +25℃) |
| Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. | Temperature Range: | -20℃ ～ +150℃ |
| Models: | IE10A1 150L ,IE10A1 225L, IE10A1 408L, IE10A1 800L ,IE10A1 1000L | Equipment Overview: | This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicat |

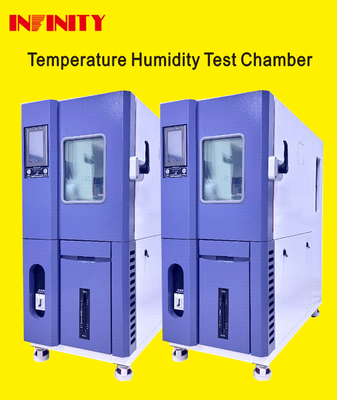

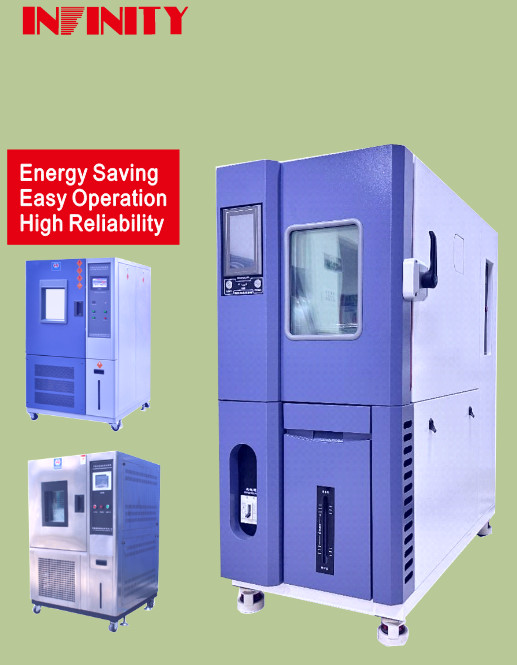

This programmable constant temperature and humidity test chamber is designed for precise testing and evaluation of various products in a controlled environment. It ensures consistent and accurate results by maintaining a constant temperature and humidity level throughout the testing process. The chamber is equipped with a variety of safety protection devices to ensure the safety of both the user and the products being tested.
The outer chamber of this test chamber is made of high quality carbon steel plate with an electrostatic color spray treatment for durability. The left side of the box features a φ50mm diameter hole for easy access. The inner chamber is made of SUS304# stainless steel plate for corrosion resistance and easy cleaning. The insulation material is a hard polyurethane foam insulation layer with a glass fiber for maximum energy efficiency.
This constant temperature and humidity test chamber is available in multiple models to suit various testing needs:
The heating rate of this test chamber is impressive, reaching from -20℃ up to +100℃ within just 40 minutes. This is achieved even when the chamber is unloaded and the ambient temperature is +25℃.
This test chamber uses non-fluorine environmental refrigerant R404A, in line with environmental regulations. This coolant is safe and non-toxic, ensuring the safety of both the user and the environment.
With its industrial design, precise temperature and humidity control, and advanced safety features, this constant temperature and humidity test chamber is an essential tool for accurate testing and evaluation in various industries. Choose the right model for your needs and experience efficient and reliable testing results.
The INFINITY IE10A1 Constant Temperature and Humidity Test Chamber is a reliable and high-performance climatic test chamber designed for various industrial and scientific applications. It is equipped with advanced technology to provide precise and stable temperature and humidity control for testing and evaluating products in different environmental conditions.
With its programmable design, the IE10A1 can simulate a wide range of temperature and humidity conditions, making it suitable for testing products in industries such as electronics, automotive, pharmaceuticals, and food. Its temperature uniformity of ≦2.0℃ and humidity uniformity of ±3.0％RH(no Load) ensure accurate and consistent test results.
The chamber's energy-saving feature, using gas-liquid bypass mode to adjust cooling capacity, helps reduce energy consumption and operating costs. The programmable color LCD touch controller, with PID control, allows for easy operation and flexible recording and processing of experimental data.
The IE10A1 also boasts high reliability, with key parts imported to ensure a long service life and consistent performance. Its single door design includes a heating wire in the door frame to prevent condensation, even at low temperatures, ensuring the safety and integrity of the testing process.
Overall, the INFINITY IE10A1 Constant Temperature and Humidity Test Chamber is a versatile and efficient tool for various testing and evaluation needs, making it an essential equipment for any laboratory or production facility.
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Brand Name: INFINITY
Model Number: IE10A1
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Heating Rate: From -20℃ Up To +100℃ Within 40min (When Unloaded, The Ambient Temperature Is +25℃)
Humidity Control Range: 20%R.H～98%R.H
Humidity Deviation: ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
Lighting Device: 1 LED Lighting Device, Installed On The Window.
Condenser System: Air-cooled
Introducing the INFINITY IE10A1 Constant Temperature and Humidity Test Chamber, the ultimate solution for all your environmental testing needs. This programmable chamber is designed and manufactured by INFINITY, a leading environmental test chamber manufacturer in China.
With a wide temperature range of -20℃ to +100℃ and a heating rate of within 40 minutes, the IE10A1 is perfect for testing the effects of extreme temperatures on your products. The humidity control range of 20%R.H to 98%R.H, with a deviation of only ±3.0％RH (for humidity levels above 75%) and ±5.0％RH (for humidity levels at or below 75%), ensures accurate and reliable results every time.
The IE10A1 also features a convenient LED lighting device installed on the window, allowing for easy observation of your product during testing. The air-cooled condenser system ensures efficient and reliable operation, making this test chamber a valuable addition to any laboratory or testing facility.
Order your INFINITY IE10A1 Constant Temperature and Humidity Test Chamber today and experience the highest level of customization, quality, and performance. Contact us now to negotiate the price and delivery time, and choose from our flexible payment terms including TT, PAYPAL, and Moneygram. With a supply ability of 200 sets per month, we guarantee timely delivery to meet your testing needs.
The constant temperature and humidity test chamber will be packaged in a sturdy wooden case to ensure its safety during transportation. The case will be lined with foam and cushioning materials to prevent any damages or impacts. The chamber will also be securely strapped and sealed to prevent any movement or tampering during transit.
The package will be clearly labeled with the product name, model number, and shipping address. It will also include a packing list and user manual for easy identification and assembly.
For shipping, we offer various options to ensure timely and safe delivery to our customers. These include air freight, sea freight, and land transportation. Our experienced logistics team will carefully select the most suitable shipping method based on your location and requirements.
Upon receipt of the package, please carefully inspect the chamber for any damages or missing parts. If any issues are found, please contact our customer service team immediately for assistance.
