| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A1 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） | Safety Protection Device: | Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compres |
|---|---|---|---|
| Condenser System: | Air-cooled | Humidity Uniformity: | ±3.0％RH（no Load） |
| Temperature Decrease Rate: | From +20℃ To -20℃ Within 40min (No Load, Ambient Temperature +25℃) | Temperature Uniformity: | ≦2.0℃ |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Lighting Device: | 1 LED Lighting Device, Installed On The Window. |

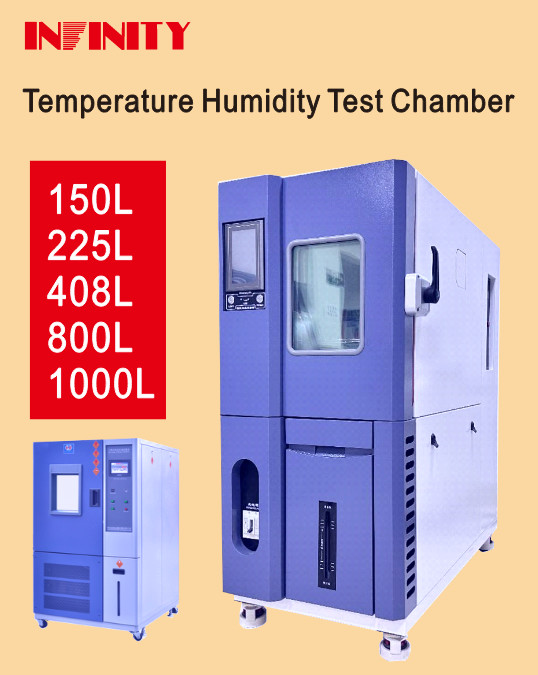

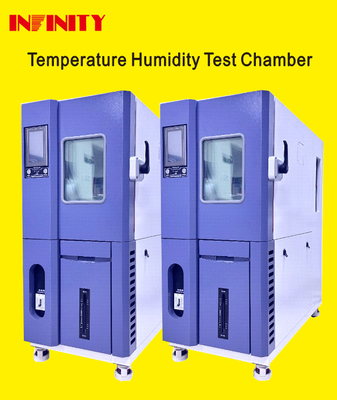

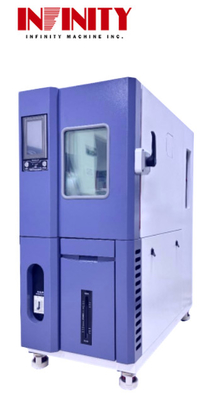

Programmable High Low Temperature Humidity Test Chamber For Pharmaceutical Products
The Programmable Constant Temperature And Humidity Test Chamber is a high-quality testing equipment designed for accurately simulating and controlling temperature and humidity conditions for various products. With its advanced features and reliable safety protection devices, it is an essential tool for product testing and quality control in industries such as electronics, automotive, pharmaceutical, and more.
These safety protection devices ensure the safe operation of the test chamber and protect against potential hazards, such as overheating, overloading, and low water levels.
The test chamber has a temperature fluctuation of ±0.5℃, ensuring precise and consistent temperature control for accurate testing results.
The temperature range of the test chamber is -20℃ ～ +150℃, making it suitable for a wide range of products and testing requirements.
The warm-keeping box of the test chamber has the following features:
The combination of these materials ensures excellent insulation and durability, making the test chamber suitable for long-term and repeated use.
Invest in the Programmable Constant Temperature And Humidity Test Chamber for reliable and accurate testing results, and ensure the quality and safety of your products.
The INFINITY IE10A1 Programmable Constant Temperature And Humidity Test Chamber is a top-of-the-line product in the field of climate test chambers and environmental test chambers. It is designed and manufactured by INFINITY, a leading company in the industry. This test chamber is perfect for conducting high and low temperature tests in various industries.
With its advanced programming capabilities, the IE10A1 allows for precise control of temperature and humidity levels, making it ideal for simulating real-life conditions for products, parts, and materials. It is suitable for use in electrical, electronic, and mechanical industries, as well as for testing the quality and reliability of various products and materials.
The humidity fluctuation of the IE10A1 is only ±1.0％RH, ensuring accurate and consistent results for all tests. Additionally, its air-cooled condenser system makes it energy-efficient and environmentally friendly.
The test chamber also features a large inspection window, measuring W 300×H 400mm, which is installed on the door of the box. The multi-layer hollow electrothermal coated glass of the window effectively keeps heat inside the chamber and prevents condensation, allowing for clear observation of the test process.
The INFINITY IE10A1 Programmable Constant Temperature And Humidity Test Chamber is a must-have for any laboratory or testing facility. With its reliable performance and user-friendly design, it is sure to meet all your testing needs. Contact us today to negotiate the price and place your order!
| Model | IE10A1 150L | IE10A1 225L | IE10A1 408L | IE10A1 800L | IE10A1 1000L | |||||
| Temp. range | -20℃ ～ +150℃ | |||||||||
| Temp. fluctuation | ±0.5℃ | |||||||||
|
Temp. uniformity
|
≦2.0℃ | |||||||||
| Heating rate | from -20℃ up to +100℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Temp.decrease rate | from +20℃ down to -20℃ within 40min (No load, ambient temperature +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness | ±3.0％RH (no-load test) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid Warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 set LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | |||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||
Experience the best-in-class performance and precise control with INFINITY Constant Temperature and Humidity Test Chamber. Contact us now for customized solutions to meet your specific testing needs.
Here are the packaging details for our constant temperature and humidity test chamber:
For shipping, we offer the following options:
Please contact us for more information on packaging and shipping options for our constant temperature and humidity test chamber.
