| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Temperature Fluctuation: | ±0.5℃ |
|---|---|---|---|
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo | Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. |
| Temperature Range: | -70℃ ～ +150℃ | Humidity Uniformity: | ±3.0％RH（no Load） |
| Lighting Device: | 1 LED Lighting Device, Installed On The Window. | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |

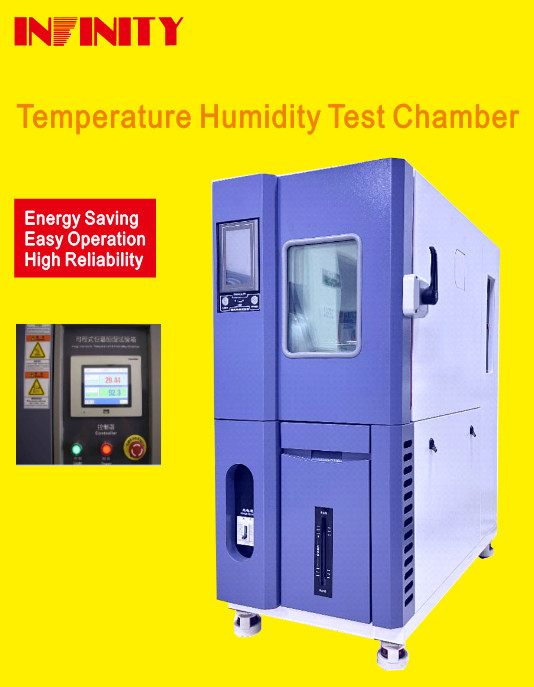

Programmable Constant Temperature Humidity Test Chamber For Environmental Testing
The Constant Temperature and Humidity Test Chamber is an essential tool for conducting environmental tests on various products. It is designed to simulate and maintain precise temperature and humidity conditions, allowing for accurate and reliable testing results.
The Constant Temperature and Humidity Test Chamber is a type of Environmental Test Chamber that is specifically designed for testing products in controlled temperature and humidity conditions. It is equipped with a programmable controller that allows users to set and control the temperature and humidity levels according to their testing requirements. This chamber is widely used in industries such as electronics, pharmaceuticals, food, and automotive for product quality control and reliability testing.
The Constant Temperature and Humidity Test Chamber comes with a user-friendly programmable controller that allows for easy and precise temperature and humidity control. The controller has a LCD display that shows the current temperature and humidity levels, as well as the set values. It also has a built-in memory function that can store multiple testing programs for efficient and convenient testing.
The chamber is designed to provide excellent humidity uniformity with a deviation of ±3.0％RH (no load). This ensures that the humidity levels are consistent throughout the chamber, allowing for accurate and reliable testing results.
The Humidity Deviation of the chamber is ±3.0％RH for humidity levels above 75％RH and ±5.0％RH for levels below 75％RH. This ensures that the chamber can maintain precise humidity levels, even at lower levels, for a wide range of testing requirements.
The Temperature Uniformity of the chamber is ≦2.0℃, which ensures that the temperature is consistent throughout the chamber. This is crucial for conducting accurate and reliable testing, as temperature fluctuations can affect the results of the test.
The chamber has a humidity fluctuation of ±1.0％RH, which refers to the variation in humidity levels within the chamber during operation. This is an important factor to consider for testing sensitive products, as even slight fluctuations in humidity can affect the results of the test.
The Warm-keeping box of the chamber is designed for long-term testing and storage of products. It is equipped with high-quality carbon steel plates on the outer chamber, which are treated with electrostatic color spray for a durable and corrosion-resistant finish. The left side of the box has a φ50mm diameter hole, which can be used for cable routing or introducing external test equipment.
The outer chamber material is made of high-quality carbon steel plates, which provide excellent durability and corrosion resistance. The electrostatic color spray treatment adds an extra layer of protection and a sleek finish to the chamber.
The inner chamber material is made of SUS304# stainless steel plates, which are highly resistant to corrosion and wear. This ensures that the chamber can withstand long-term use and maintain its performance and accuracy.
The insulation material of the chamber is a combination of hard polyurethane foam insulation layer and glass fiber. This provides excellent insulation properties, ensuring that the chamber can maintain precise temperature and humidity levels for extended periods of time. It also helps to reduce energy consumption and maintain a stable testing environment.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||

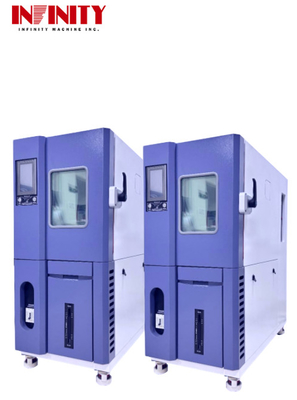

The INFINITY IE10A constant temperature and humidity test chamber is a state-of-the-art testing equipment designed for industrial and laboratory use. It provides precise and reliable temperature and humidity control to simulate various environmental conditions for testing and evaluating the performance and reliability of products.
The INFINITY IE10A is commonly used in various industries such as electronics, automotive, aerospace, pharmaceuticals, and research laboratories for product development, quality control, and research purposes. It is suitable for testing and evaluating the effects of temperature and humidity on materials, components, and finished products.
Imagine a company that manufactures electronic devices such as smartphones, laptops, and tablets. They need to ensure that their products can withstand various environmental conditions and maintain their performance and reliability. The INFINITY IE10A constant temperature and humidity test chamber is an essential equipment for their quality control process.
First, the products are placed on the stainless steel sample rack inside the chamber. The temperature and humidity levels are set according to the testing requirements. The programmable control system ensures precise and stable temperature and humidity control. The temperature is decreased from +20℃ to -40℃ within 60 minutes, simulating extreme cold conditions for testing. The humidity level is also maintained at a uniform level of ±3.0％RH (No Load) to simulate high humidity environments.
After the testing is completed, the company can evaluate the performance of their products under extreme conditions and make necessary improvements. This ensures that their products can withstand various environmental conditions and meet the expectations of their customers.
The INFINITY IE10A constant temperature and humidity test chamber is also suitable for research purposes, where scientists and researchers can study the effects of temperature and humidity on different materials and products. It is also a valuable tool for testing the durability and reliability of products before they are released into the market.
The INFINITY IE10A constant temperature and humidity test chamber is a versatile and reliable equipment that provides precise and stable temperature and humidity control for testing and evaluating the performance and reliability of products. With its advanced features and safety protection devices, it is an essential tool for industries and research laboratories. Contact us now to learn more about our products and services!
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1 Set
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Models: IE10A 150L, IE10A 225L, IE10A 408L, IE10A 800L, IE10A 1000L
Refrigeration Compressor: France Tecumseh Fully Closed Compressor
Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.
Humidity Control Range: 20%R.H～98%R.H
Features:
Our constant temperature and humidity test chamber is carefully packaged to ensure safe delivery to our customers. Each unit is wrapped in protective materials and placed in a sturdy cardboard box. The box is then sealed with tape and labeled with the product information and shipping details.
For larger orders, the test chambers are placed on a pallet and secured with straps to prevent any movement during transportation. The pallet is then shrink-wrapped for added protection.
We work with trusted shipping companies to ensure timely and efficient delivery of our products. Our team carefully tracks each shipment to ensure it arrives at its destination in perfect condition.
Upon arrival, our customers can expect to receive their constant temperature and humidity test chamber in the same high-quality condition as when it left our facility. We take pride in providing a seamless and worry-free delivery experience for our customers.
