| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Power: | AC220V;50Hz;5.5kw-13kw | Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. |
|---|---|---|---|
| Temperature Range: | -70℃ ～ +150℃ | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |
| Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） | Temperature Uniformity: | ≦2.0℃ |
| Humidity Fluctuation: | ±1.0％RH | Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And |

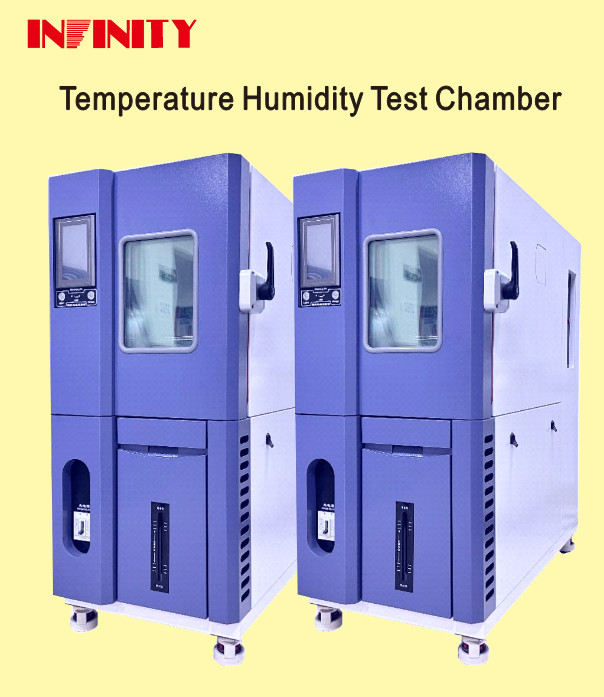

Programmable Constant Temperature Humidity Test Chamber 20%R.H～98%R.H Humidity Control
Temperature fluctuation: ±0.5℃
This series of constant temperature and humidity boxes are suitable for environmental simulation reliability tests of industrial products. They have the characteristics of precise temperature and humidity control and a wide control range. The performance indicators meet the requirements of GB5170.2.3.5.6-95.
Air-cooled
This programmable constant temperature and humidity test chamber is suitable for electrical, electronic, mechanical, and other products, parts, and materials. It can perform high and low temperature, wet and hot tests, and simulate the temperature and humidity changes of products, parts, and materials for quality and reliability tests.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
The INFINITY IE10A constant temperature and humidity test chamber is a highly reliable and energy-saving product designed for environmental simulation reliability tests of industrial products. It is suitable for a wide range of applications and meets the requirements of GB5170.2.3.5.6-95. With its high accuracy and easy operation, this test chamber is an essential tool for various industries.
The INFINITY IE10A constant temperature and humidity test chamber is suitable for a variety of applications, including:
To place an order for the INFINITY IE10A constant temperature and humidity test chamber, please provide the following information:
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram, and so on
Supply Ability: 200 sets / month
Humidity Fluctuation: ±1.0％RH
Sample Holder: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.
Condenser System: Air-cooled
Heating Rate: From -70℃ Up To +100℃ Within 90min (When Unloaded, The Ambient Temperature Is +25℃)
Equipment Overview: This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicators Meet The Requirements Of GB5170.2.3.5.6-95.
Environment Test Chamber, Programmable Constant Temperature and Humidity Test Chamber, Temperature and Humidity Control Accuracy, Wide Control Range, Performance Indicators, Meet the Requirements, Environmental Simulation Reliability Test, Industrial Products, Stainless Steel Sample Rack, Air-cooled Condenser System
The Constant Temperature and Humidity Test Chamber will be carefully packaged to ensure safe delivery to our customers. The packaging process includes the following steps:
Once the packaging process is complete, the chamber will be ready for shipping. We offer various shipping options to accommodate our customers' needs, including:
Our team will work closely with our trusted shipping partners to ensure timely and secure delivery of the Constant Temperature and Humidity Test Chamber to our customers. We take great care in our packaging and shipping process to provide the best possible experience for our customers.
