| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) | Models: | IE10A 150L ,IE10A 225L, IE10A 408L, IE10A 800L ,IE10A 1000L |
|---|---|---|---|
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo | Temperature Uniformity: | ≦2.0℃ |
| Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |
| Heating Rate: | From -70℃ Up To +100℃ Within 90min (When Unloaded, The Ambient Temperature Is +25℃) | Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. |

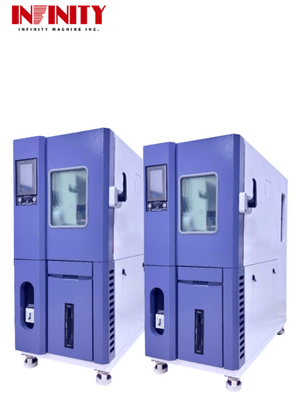

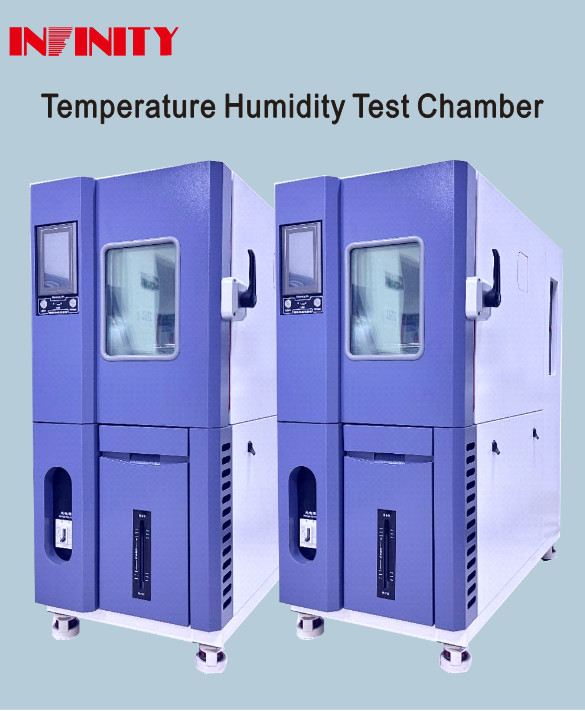

Programmable Constant Temperature Humidity Test Chamber For Stable Humidity Control
The constant temperature and humidity test chamber is a highly advanced and specialized environmental test chamber designed for testing the effects of temperature and humidity on various products. It is an essential tool for quality control and product development in industries such as electronics, automotive, aerospace, and pharmaceuticals.
Equipped with advanced technology, this programmable constant temperature and humidity test chamber provides precise and reliable testing conditions to simulate real-life environments. It is a versatile and powerful testing instrument that can accurately replicate a wide range of temperature and humidity conditions.
The temperature decrease rate of this test chamber is remarkable, going from +20℃ to -40℃ within just 60 minutes, even with no load and an ambient temperature of +25℃. This feature makes it perfect for testing products that are sensitive to temperature changes. The temperature fluctuation is also minimal, with a range of ±0.5℃, ensuring consistent and accurate results.
The humidity fluctuation of this test chamber is just ±1.0％RH, which is well below the industry standard. This feature guarantees precise and stable humidity levels, making it ideal for testing products that are susceptible to moisture. The humidity deviation is also minimal, with a range of ±3.0％RH (>75％RH) and ±5.0％RH (≤75％RH).
The outer chamber of this test chamber is made of high-quality carbon steel plate that is coated with electrostatic color spray treatment. This makes it durable, corrosion-resistant, and aesthetically pleasing. The left side of the box is equipped with a φ50mm diameter hole for easy access and monitoring.
The inner chamber is made of SUS304# stainless steel plate, a material known for its excellent resistance to corrosion and high temperatures. It is also easy to clean and maintain, ensuring the integrity of the testing environment.
The insulation material used is a combination of hard polyurethane foam insulation layer and glass fiber, providing excellent thermal insulation and reducing energy consumption.
This environmental test chamber is also equipped with a warm-keeping box, which helps maintain the temperature and humidity levels within the chamber even when opened. It also has a programmable control system that allows for easy and precise adjustments of temperature and humidity settings.
With its compact design and user-friendly interface, this programmable high & low temperature humidity test chamber is a reliable and efficient tool for all your temperature and humidity testing needs.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
The INFINITY IE10A constant temperature and humidity test chamber is a high-quality testing equipment designed to provide precise and stable environmental conditions for various testing purposes. It is suitable for industries such as electronics, automotive, aerospace, and pharmaceuticals.
With advanced programmable control system and state-of-the-art technology, this test chamber can simulate a wide range of temperature and humidity conditions to meet different testing requirements. Its reliable performance and user-friendly design make it an essential tool for quality control and product development.
The INFINITY IE10A constant temperature and humidity test chamber is suitable for a wide range of testing applications, including:
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Temperature decrease rate: From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃)
Temperature uniformity: ≦2.0℃
Humidity fluctuation: ±1.0％RH
Heating rate: From -70℃ Up To +100℃ Within 90min (When Unloaded, The Ambient Temperature Is +25℃)
