| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |
|---|---|---|---|
| Models: | IE10A 150L ,IE10A 225L, IE10A 408L, IE10A 800L ,IE10A 1000L | Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. |
| Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. | Humidity Fluctuation: | ±1.0％RH |
| Refrigeration Compressor: | France Tecumseh Fully Closed Compressor | Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) |

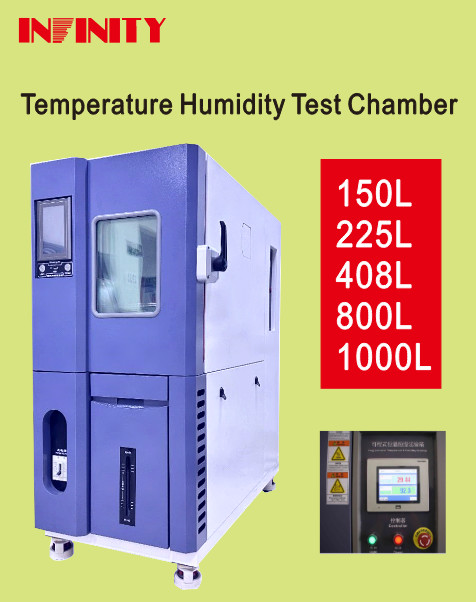

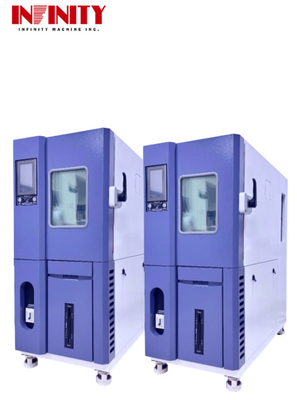

Temperature Humidity Control Accuracy Constant Temperature Humidity Test Chamber
The constant temperature and humidity test chamber is an advanced environmental test chamber designed for testing the effects of temperature and humidity on various products. It is also known as a climatic test chamber or a programmable constant temperature and humidity test chamber.
The test chamber requires an AC220V power supply with a frequency of 50Hz and a power consumption ranging from 5.5kw to 13kw, depending on the model. This ensures stable and reliable operation of the test chamber.
The test chamber is equipped with a high-quality LED lighting device, which is installed on the window of the chamber. This allows for clear observation and monitoring of the test sample during the test process.
The temperature control range of the test chamber is from +20℃ to -40℃, and it can achieve a temperature decrease rate of 1℃ per minute. This means that the chamber can quickly and accurately simulate extreme temperature conditions for testing purposes.
The test chamber has a humidity fluctuation of ±1.0％RH, ensuring precise control of the humidity level. It can simulate different humidity environments to test the effects of humidity on products.
The heating rate of the test chamber is from -70℃ up to +100℃ within 90 minutes. This means that the chamber can quickly reach high temperatures for testing purposes. It also has a temperature accuracy of ±0.5℃, ensuring the reliability of test results.
Overall, the constant temperature and humidity test chamber is an essential tool for product testing, research, and development. Its advanced features and precise control make it suitable for a wide range of industries, including electronics, automotive, pharmaceuticals, and more.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
The INFINITY constant temperature and humidity test chamber is a highly reliable and accurate testing equipment for various environmental conditions. It is widely used in industries such as electronics, pharmaceuticals, aerospace, and automotive to test the performance and durability of products under different temperature and humidity conditions.
As a programmable constant temperature and humidity test chamber, the INFINITY IE10A model is designed to provide precise and stable temperature and humidity control. It is proudly made in China and has obtained CE and ISO certifications, ensuring its high quality and safety standards.
The minimum order quantity is only 1 unit, and the price is negotiable depending on the specific requirements of the customer. The packaging is carefully designed with clear sheet, sponge, and wood carton to ensure the safe delivery of the equipment.
The humidity deviation of the chamber is ±3.0％RH(＞75％RH) and ±5.0％RH(≤75％RH), and the temperature uniformity is ≦2.0℃, making it suitable for conducting precise and accurate tests. It is equipped with various safety protection devices such as heater and humidifier anti-burning protection, overcurrent protection, and high pressure protection for the compressor, ensuring the safety of the testing process.
The heating rate of the chamber is impressive, capable of reaching from -70℃ to +100℃ within 90 minutes, even when unloaded and at an ambient temperature of +25℃. The coolants used in the chamber are non-fluorine environmental refrigerant R404A, complying with environmental regulations and being safe and non-toxic.
The INFINITY constant temperature and humidity test chamber is a reliable and efficient choice for any industry that needs to test products under different environmental conditions. Its programmable features, high-quality build, and safety measures make it a valuable addition to any testing facility.
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Inspection window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.
Coolants: Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic
Lighting device: 1 LED Lighting Device, Installed On The Window.
Refrigeration compressor: France Tecumseh Fully Closed Compressor
Temperature fluctuation: ±0.5℃
Key words: Programmable constant temperature and humidity test chamber, Environment Test Chamber, Programmable constant temperature and humidity test chamber for electronics
Our constant temperature and humidity test chambers are carefully packaged to ensure safe delivery to our customers. The chambers are first wrapped in protective materials to prevent any damage during transportation. They are then placed in sturdy, custom-made crates to provide additional protection.
For international shipping, the chambers are securely loaded onto pallets and then placed in shipping containers. We work with trusted shipping companies to ensure timely and safe delivery of our products to our customers all over the world.
Upon arrival, our customers can expect their constant temperature and humidity test chambers to be in excellent condition and ready for use.
Contact us for more information on our packaging and shipping process.
