| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Coolants: | Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic | Models: | IE10A 150L ,IE10A 225L, IE10A 408L, IE10A 800L ,IE10A 1000L |
|---|---|---|---|
| Lighting Device: | 1 LED Lighting Device, Installed On The Window. | Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And |
| Power: | AC220V;50Hz;5.5kw-13kw | Condenser System: | Air-cooled |
| Temperature Range: | -70℃ ～ +150℃ | Temperature Uniformity: | ≦2.0℃ |

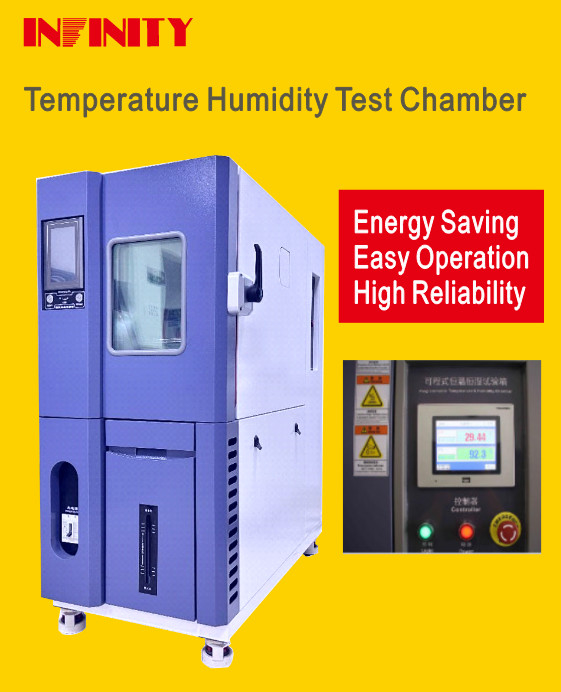

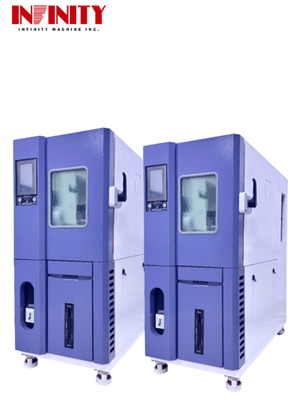

Programmable Constant Temperature Humidity Test Chamber Temperature Uniformity ≦2.0C
This series of constant temperature and humidity box is a reliable and efficient solution for industrial products' environmental simulation tests. It is equipped with advanced technology to ensure precise temperature and humidity control with a wide range of control options. The performance indicators meet the requirements of GB5170.2.3.5.6-95 Standard, making it a highly accurate and reliable testing equipment.
The Programmable Constant Temperature And Humidity Test Chamber is specifically designed for industrial test chambers, offering a programmable high and low-temperature humidity test capability. It is ideal for conducting reliability tests on various industrial products, providing accurate and consistent results.
The temperature and humidity control accuracy of this equipment is ≤2.0℃, ensuring precise and stable testing conditions. The humidity control range of 20%R.H to 98%R.H provides versatility to simulate different environmental conditions. With a power supply of AC220V;50Hz;5.5kw-13kw, it can handle a wide range of industrial products with different power requirements.
Overall, the Programmable Constant Temperature And Humidity Test Chamber is a top-of-the-line environmental simulation test chamber that offers accurate and reliable results. It is a must-have equipment for industries that require precise and consistent testing of their products' performance under varying temperature and humidity conditions.
The Programmable Constant Temperature And Humidity Test Chamber from INFINITY, model IE10A, is the perfect solution for environmental testing. Designed and manufactured in China, this chamber is certified with CE and ISO, ensuring high quality and reliability.
With a minimum order quantity of 1, the price for the test chamber is negotiable. It is packed with a clear sheet, sponge, and wood carton for secure transportation. The delivery time is 20-30 days after the order is confirmed, and various payment options such as TT, PAYPAL, and Moneygram are accepted.
INFINITY is able to supply 200 sets of this test chamber per month, making it a trusted and reliable supplier. The humidity control range of 20%R.H～98%R.H ensures precise and accurate testing, while the humidity uniformity of ±3.0％RH(no Load) guarantees consistent results. The air-cooled condenser system further enhances the stability and accuracy of the chamber.
Whether for research and development, quality control, or production testing, the Programmable Constant Temperature And Humidity Test Chamber from INFINITY is the ideal choice for any industry. Trust in INFINITY for your environmental testing needs.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Key Features:
Safety Protection Device:
Temperature Uniformity: ≦2.0℃
Lighting Device: 1 LED Lighting Device, Installed On The Window.
Humidity Control Range: 20%R.H～98%R.H
Humidity Uniformity: ±3.0％RH(no Load)
This constant temperature and humidity test chamber will be packaged in a sturdy wooden crate to ensure safe delivery to our customers. The product will be securely wrapped in protective materials and sealed with tape to prevent any damage during transportation. The wooden crate will also be marked with important labels and handling instructions for the carrier to follow.
Shipping for this product will be arranged by our trusted logistics partners, who will ensure timely delivery to your desired location. We offer both air and sea freight options, depending on your preference and urgency of the delivery. Our team will also provide you with a tracking number so you can monitor the status of your shipment.
For international orders, we will take care of all necessary customs documentation and clearance procedures to ensure a smooth delivery process. We strive to provide our customers with a hassle-free experience from purchase to delivery.
