| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) | Humidity Control Range: | 20%R.H～98%R.H |
|---|---|---|---|
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo | Power: | AC220V;50Hz;5.5kw-13kw |
| Humidity Uniformity: | ±3.0％RH（no Load） | Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. |
| Equipment Overview: | This Series Of Constant Temperature And Humidity Box Is Suitable For Environmental Simulation Reliability Test Of Industrial Products, With The Characteristics Of Temperature And Humidity Control Accuracy And Wide Control Range, And The Performance Indicat | Temperature Range: | -70℃ ～ +150℃ |

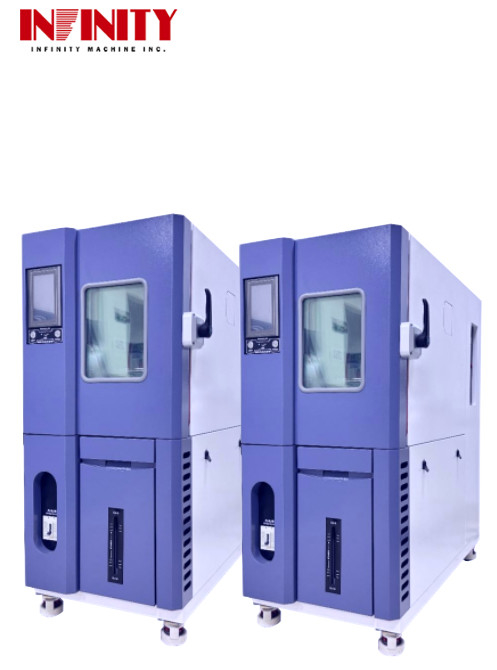

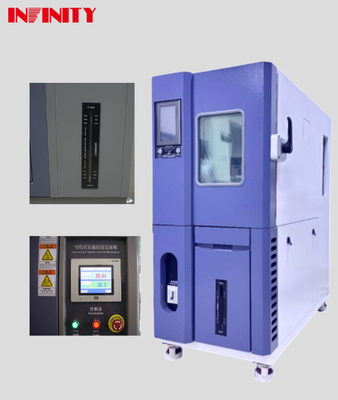

Programmable Constant Temperature Humidity Test Chamber For Accurate Measurements
The Programmable Constant Temperature And Humidity Test Chamber is a highly advanced and efficient testing equipment designed to simulate extreme environmental conditions for various products. It is equipped with state-of-the-art features and technologies to ensure accurate and reliable test results. This product is widely used in industries such as electronics, automotive, aerospace, and pharmaceutical for quality control and product development purposes.
The sample holder of this test chamber is made of high-quality stainless steel and is equipped with 2 layers. The height of the sample rack is adjustable, allowing for flexibility in accommodating different sample sizes. Each layer is capable of bearing a weight of up to 30 kg, making it suitable for a wide range of products.
The refrigeration compressor used in this test chamber is a France Tecumseh fully closed compressor, known for its high efficiency and reliability. It is designed to maintain a constant temperature and humidity level, ensuring accurate and consistent test conditions.
The test chamber is equipped with an inspection window with dimensions of W 300×H 400mm. This observation window is installed on the door of the box, allowing for easy monitoring of the test process. The multi-layer hollow electrothermal coated glass used in the window effectively keeps heat inside the chamber and prevents condensation, ensuring clear visibility at all times.
The air-cooled condenser system of this test chamber is designed for efficient heat dissipation, ensuring stable temperature and humidity levels inside the chamber. It also eliminates the need for additional water supply, making it a convenient and cost-effective option.
The constant temperature and humidity test chamber is a programmable environmental test chamber suitable for a wide range of industries such as electronic products, LED, rubber, plastics, chemicals, automotive, aerospace, military, medical, universities, research institutions, and quality control testing. It is designed to simulate and test the effects of different temperature and humidity conditions on products.
The test chamber is equipped with a programmable temperature and humidity control system, allowing users to set and adjust the temperature and humidity levels according to their testing needs. This ensures precise and stable testing conditions, making it suitable for temperature and humidity simulation tests, as well as temperature and humidity cycling tests.
With the ability to control humidity levels from 20%R.H to 98%R.H and maintain a temperature uniformity of ≦2.0℃, this constant temperature and humidity test chamber can provide reliable and accurate results for product reliability testing. The temperature decrease rate from +20℃ to -40℃ within 60 minutes (no load, ambient temperature +25℃) also allows for efficient testing processes.
The test chamber is equipped with a high-quality refrigeration compressor from France Tecumseh, ensuring stable and efficient cooling performance. It also comes with a durable and customizable packaging design, making it suitable for shipping and transportation.
In summary, the INFINITY constant temperature and humidity test chamber is a reliable and efficient tool for product testing and quality control. With its high precision, stability, and versatility, it is widely used in various industries for temperature and humidity testing, ensuring the reliability and quality of products.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Inspection window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.
Warm-keeping box:
Humidity deviation: ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
Sample holder: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.
Temperature fluctuation: ±0.5℃
Key words: Environmental Testing Chambers, Programmable constant temperature and humidity test chamber, Programmable constant temperature and humidity test chamber manufacturer
Our constant temperature and humidity test chamber is carefully packaged to ensure its safe delivery to our customers. It is packed with high-quality materials and handled with care to prevent any damage during transportation.
The test chamber is first wrapped in a protective layer to prevent scratches or dents. It is then placed in a sturdy cardboard box and sealed with tape.
For added protection, the box is then placed in a larger box and filled with foam or bubble wrap to absorb any potential impact during shipping.
Our shipping team takes great care in handling and loading the test chamber onto the delivery truck. We work with trusted and reliable shipping carriers to ensure timely and safe delivery to our customers' designated locations.
We also provide tracking information so our customers can monitor the status of their shipment and ensure its safe arrival.
At constant temperature and humidity test chamber, we understand the importance of delivering our products in pristine condition and we strive to provide the best packaging and shipping services for our customers.
