| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) |
|---|---|---|---|
| Humidity Uniformity: | ±3.0％RH（no Load） | Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo |
| Power: | AC220V;50Hz;5.5kw-13kw | Safety Protection Device: | Heater Anti-burning Protection; Humidifier Anti-burn Protection; Heater Overcurrent Protection; Humidifier Overcurrent Protection; Circulating Fan Overcurrent Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compres |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Condenser System: | Air-cooled |

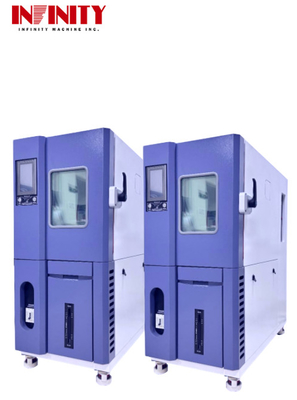

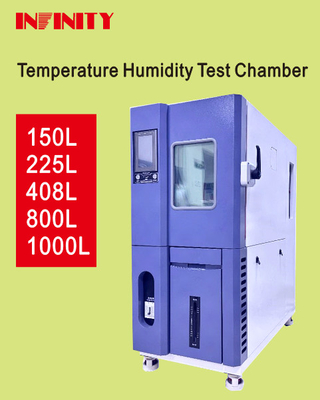

Advanced Constant Temperature Humidity Test Chamber Heating Rate -70C Up To 100C Within 90min
The constant temperature and humidity test chamber is a highly efficient and reliable testing equipment, designed for industrial and environmental testing. It is programmable and can control both temperature and humidity levels to simulate real-life conditions for the desired testing purposes.
The temperature range of this test chamber is from -70℃ to +150℃, making it suitable for a wide range of testing applications. It can accurately maintain the desired temperature, ensuring consistent and reliable test results.
The temperature uniformity of this test chamber is ≦2.0℃, ensuring that the temperature is evenly distributed throughout the chamber. This eliminates any temperature variations and ensures the accuracy of the test results.
The chamber is equipped with a W 300×H 400mm observation window on the door. The multi-layer hollow electrothermal coated glass used in the window effectively keeps heat inside and prevents condensation, allowing for clear observation of the testing process.
The humidity control range of this test chamber is from 20%R.H to 98%R.H. It can accurately control and maintain the desired humidity levels, creating the ideal testing environment for various applications.
The heating rate of this test chamber is rapid, capable of reaching from -70℃ up to +100℃ within 90 minutes. This makes it efficient and time-saving for testing purposes, even when the ambient temperature is +25℃.
With its advanced features and reliable performance, the constant temperature and humidity test chamber is an essential tool for various industrial and environmental testing needs.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
The INFINITY IE10A Constant Temperature and Humidity Test Chamber is a state-of-the-art testing equipment designed to simulate various environmental conditions for the purpose of testing and evaluating the performance and durability of products. It is widely used in industries such as electronics, automotive, aerospace, and pharmaceuticals.
The chamber is designed to provide precise temperature and humidity control, allowing for the creation of a wide range of environmental conditions for testing. It is suitable for both research and development purposes as well as quality control and production testing.
Some of the key applications of the INFINITY IE10A Constant Temperature and Humidity Test Chamber include:
The lighting device provides adequate and uniform lighting inside the chamber for better visibility and monitoring of the testing process.
The warm-keeping box ensures that the temperature and humidity levels inside the chamber remain constant, providing a stable environment for testing.
The chamber has a humidity uniformity of ±3.0％RH, which ensures that the humidity levels are consistent throughout the testing process.
The chamber has a humidity fluctuation of ±1.0％RH, which ensures that there are minimal variations in the humidity levels during the testing process.
The air-cooled condenser system helps to remove excess moisture from the chamber, maintaining the desired humidity levels.
The INFINITY IE10A Constant Temperature and Humidity Test Chamber is a highly versatile and reliable testing equipment that can accurately simulate various environmental conditions. Its advanced features and precise controls make it an ideal choice for a wide range of applications. With its exceptional performance and durability, it is a valuable asset for any company looking to ensure the quality and reliability of their products.
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Temperature decrease rate: From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃)
Sample holder: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.
Features:
Safety Protection Device:
Application: Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And Reliability Test.
Keywords: Programmable constant temperature and humidity test chamber, CE certified constant temperature and humidity test chamber, energy efficient constant temperature and humidity test chamber
Our constant temperature and humidity test chamber is carefully packaged and shipped to ensure safe delivery to our customers. Each chamber is packaged in a sturdy wooden crate to protect it from damage during transportation. The crate is also lined with shock-absorbing materials to further safeguard the chamber.
Once packaged, the chamber is then loaded onto a pallet and secured with straps for added stability. The pallet is then loaded onto a truck or cargo container for shipping.
We offer various shipping options to our customers, including air, sea, and land transportation. Our experienced logistics team will work closely with our customers to determine the most efficient and cost-effective shipping method based on their location and specific requirements.
Upon arrival at the destination, our customers can expect to receive their constant temperature and humidity test chamber in perfect condition, ready for use.
