| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Condenser System: | Air-cooled |
|---|---|---|---|
| Heating Rate: | From -70℃ Up To +100℃ Within 90min (When Unloaded, The Ambient Temperature Is +25℃) | Temperature Decrease Rate: | From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃) |
| Humidity Control Range: | 20%R.H～98%R.H | Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. |
| Door: | For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature. | Humidity Fluctuation: | ±1.0％RH |

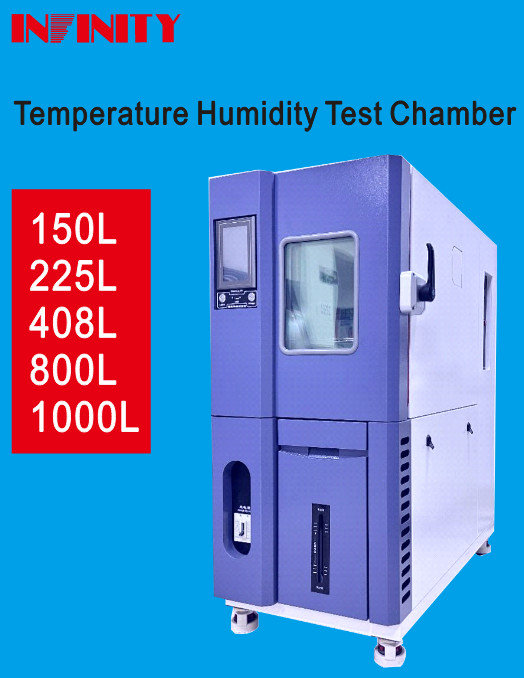

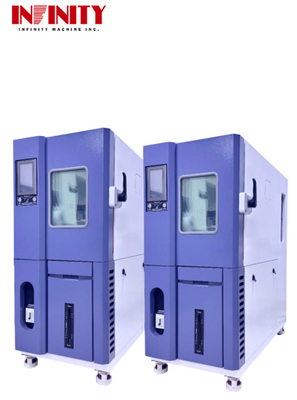

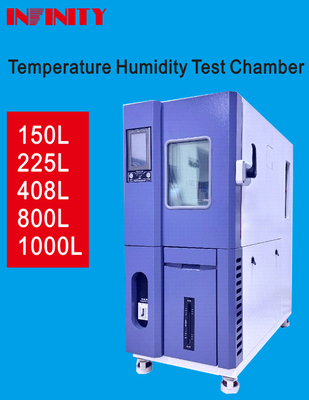

Programmable Constant Temperature Humidity Test Chamber Stainless Steel Sample Rack 2 Layers
Product Overview:
The Constant Temperature and Humidity Test Chamber is a programmable environmental test chamber designed for testing the reliability of industrial products. It features precise temperature and humidity control, a wide control range, and meets the performance requirements of GB5170.2.3.5.6-95. This chamber is equipped with various advanced features to ensure accurate and efficient testing.
Inspection Window:
The chamber is equipped with a W 300×H 400mm observation window on the door, which is made of multi-layer hollow electrothermal coated glass. This window effectively retains heat and prevents condensation, providing a clear view of the inside of the chamber during testing.
Warm-keeping Box:
The outer chamber material is made of high quality carbon steel plate with an electrostatic color spray treatment. The left side of the box has a φ50mm diameter hole for easy cable access. The inner chamber material is made of SUS304# stainless steel plate for durability. The insulation material consists of a hard polyurethane foam insulation layer and glass fiber, ensuring efficient heat preservation.
Coolants:
The chamber uses non-fluorine environmental refrigerant R404A, which is compliant with environmental regulations and safe for use. This coolant is non-toxic and has excellent cooling properties, allowing for accurate temperature control.
Humidity Deviation:
The humidity deviation of the chamber is ±3.0％RH(＞75％RH) and ±5.0％RH(≤75％RH). This ensures precise humidity control during testing, providing reliable and accurate results.
Overall, the Constant Temperature and Humidity Test Chamber is a highly advanced and efficient product for environmental simulation reliability testing. Its programmable features, precise temperature and humidity control, and compliance with environmental regulations make it an ideal choice for industrial product testing.
The Constant Temperature and Humidity Test Chamber - INFINITY IE10A is a highly efficient and reliable product designed to simulate temperature and humidity changes for various products, parts, and materials. It is suitable for use in electrical, electronic, mechanical, and other industries to ensure the quality and reliability of products through high and low temperature, wet and hot tests.
The Constant Temperature and Humidity Test Chamber - INFINITY IE10A uses a gas-liquid bypass mode to adjust the cooling capacity, achieving constant temperature and humidity while saving energy and reducing consumption.
The Programmable Color LCD Touch Controller equipped in the Constant Temperature and Humidity Test Chamber - INFINITY IE10A includes PID control, making it easy to operate. The experimental data recording and processing methods are flexible, allowing for accurate and efficient testing.
The key parts of the Constant Temperature and Humidity Test Chamber - INFINITY IE10A are imported to ensure a long service life and high reliability. This guarantees the accuracy and precision of the testing process, providing reliable results.
The Constant Temperature and Humidity Test Chamber - INFINITY IE10A is suitable for use in electrical, electronic, mechanical, and other industries to simulate the temperature and humidity changes of products, parts, and materials. This ensures the quality and reliability of the tested products.
AC220V; 50Hz; 5.5kw-13kw
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And Reliability Test.
From +20℃ To -40℃ Within 60min (No Load, Ambient Temperature +25℃)
AC220V;50Hz;5.5kw-13kw
All constant temperature and humidity test chambers are carefully packaged and shipped in sturdy wooden cases to ensure safe arrival at their destination. The chambers are also securely strapped and padded to prevent any damage during transportation.
For international shipments, the chambers are shipped via air or sea freight, depending on the customer's preference and urgency. All necessary customs documentation and labeling are taken care of by our team to facilitate smooth clearance at the destination country.
For domestic shipments, we offer express or standard shipping options, depending on the customer's needs. Our team works closely with reliable shipping partners to ensure timely and efficient delivery of the chambers.
Customers can also choose to pick up their orders directly from our warehouse location. Our team will assist with loading and securing the chambers onto the customer's preferred mode of transportation.
Overall, we take great care in packaging and shipping our constant temperature and humidity test chambers to ensure they arrive in perfect condition and on time.
