| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Humidity Control Range: | 20%R.H～98%R.H |
|---|---|---|---|
| Heating Rate: | From -70℃ Up To +100℃ Within 90min (When Unloaded, The Ambient Temperature Is +25℃) | Condenser System: | Air-cooled |
| Temperature Fluctuation: | ±0.5℃ | Coolants: | Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic |
| Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Temperature Uniformity: | ≦2.0℃ |

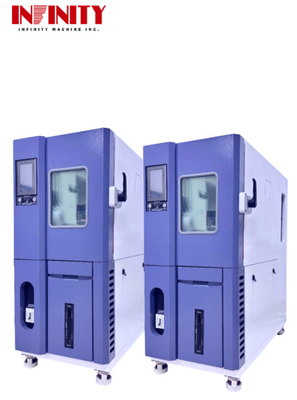

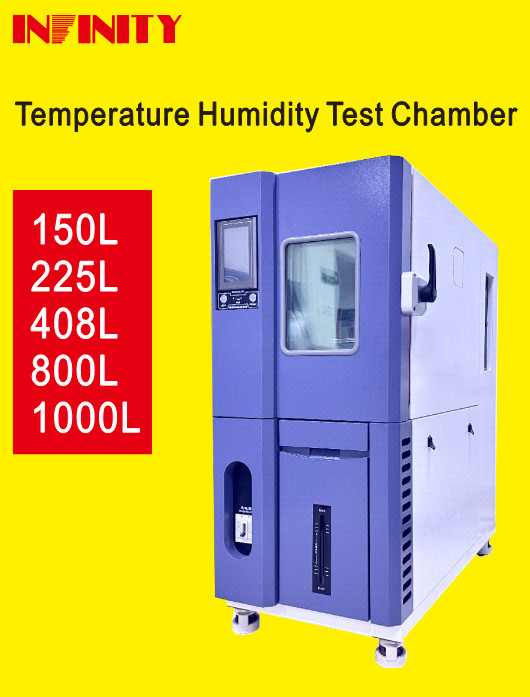

20%R.H～98%R.H Humidity Control Range Constant Temperature Humidity Test Chamber
Welcome to our Programmable Constant Temperature And Humidity Test Chamber, the ultimate solution for conducting reliable climatic tests for various industries. This product is designed to provide precise and stable temperature and humidity control, making it ideal for testing the effects of environmental conditions on products. Our test chamber is also equipped with programmable features to cater to your specific testing needs.
Our programmable constant temperature and humidity test chamber, also known as climatic test chamber, is the perfect choice for your testing needs. With its precise temperature and humidity control, programmable features, and wide range of models, it is suitable for various industries such as electronics, pharmaceuticals, and automotive. Our test chamber is designed to provide reliable and accurate results for your product testing.
The Constant Temperature and Humidity Test Chamber is an advanced testing equipment designed and manufactured by INFINITY. It is perfect for testing the performance of various products under specific temperature and humidity conditions. This chamber is widely used in industries such as electronics, aerospace, automotive, and pharmaceuticals for quality control and research purposes.
With its programmable high and low temperature humidity control, the chamber allows for precise and accurate testing of products in extreme environmental conditions. It can simulate a wide range of temperature and humidity levels, making it suitable for a variety of testing requirements.
The IE10A model is made in China and has been certified with CE and ISO standards, ensuring its quality and reliability. It has a minimum order quantity of 1 and the price is negotiable, making it accessible for both small and large businesses.
The chamber is equipped with non-fluorine environmental refrigerant R404A, which is safe and non-toxic, in line with environmental regulations. It has a temperature decrease rate of 20℃ to -40℃ within 60 minutes, and a heating rate of -70℃ up to +100℃ within 90 minutes. The humidity control range is 20%R.H to 98%R.H, providing a wide range of testing capabilities.
The inspection window of the chamber is W 300×H 400mm, allowing for easy observation of the testing process. The multi-layer hollow electrothermal coated glass effectively keeps heat inside and prevents condensation, ensuring accurate and consistent testing results.
The packaging details of the chamber include clear sheet, sponge, and a wood carton, ensuring safe transportation. The delivery time is 20-30 days after order confirmation and the payment terms include TT, PayPal, Moneygram, and other options. With a supply ability of 200 sets per month, INFINITY's Constant Temperature and Humidity Test Chamber is a reliable and efficient choice for all your testing needs.
| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Humidity fluctuation: ±1.0％RH
Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.
Temperature fluctuation: ±0.5℃
Humidity uniformity: ±3.0％RH(no Load)
Temperature range: -70℃ ～ +150℃
Programmable constant temperature and humidity test chamber
Environmental Test Chambers
CE Certification
ISO Certification
Our constant temperature and humidity test chamber is carefully packaged to ensure safe delivery to our customers. The packaging materials used are durable and provide protection against any potential damage during transportation.
The product will be packed in a sturdy wooden case that is suitable for long-distance shipping. The chamber will be securely placed inside the case and surrounded by shock-absorbing materials to prevent any movement or impact during transit.
We will also use moisture-proof and waterproof materials to protect the chamber from any environmental factors that may affect its performance.
For shipping, we offer both air and sea freight options to accommodate our customers' needs. We work with reliable and efficient logistics partners to ensure timely and safe delivery of our products to any destination worldwide.
Upon delivery, our customers can expect to receive a fully functional and intact constant temperature and humidity test chamber that has been carefully handled and transported with utmost care.
