| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Chamber Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Fo | Refrigeration Compressor: | France Tecumseh Fully Closed Compressor |
|---|---|---|---|
| Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products, High And Low Temperature, Wet And Hot Test, Simulate The Temperature And Humidity Change Conditions Of Products, Parts, Materials And Other Quality And | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |
| Humidity Uniformity: | ±3.0％RH（no Load） | Humidity Fluctuation: | ±1.0％RH |
| Door: | For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature. | Temperature Uniformity: | ≦2.0℃ |

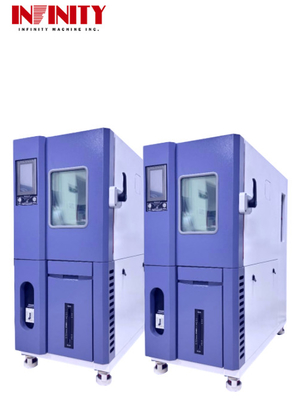

Programmable High Low Temperature Humidity Test Chamber With GB5170.2.3.5.6-95 Standards
The Constant Temperature and Humidity Test Chamber is a high-quality climatic test chamber designed for environmental simulation reliability testing of industrial products. It features precise temperature and humidity control accuracy and a wide control range, meeting the performance requirements of GB5170.2.3.5.6-95.

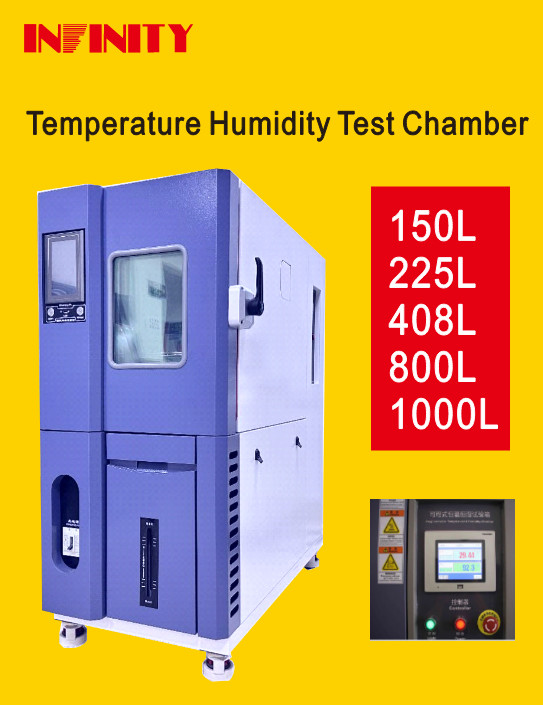

| Model | IE10A150L | IE10A225L | IE10A408L | IE10A800L | IE10A1000L | |||||
| Temperature range | -70℃ ～ +150℃ | |||||||||
| Temperature fluctuation | ±0.5℃ | |||||||||
| Temperature uniformity | ≦2.0℃ | |||||||||
| Heating rate | from -70℃ up to +100℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Temperature decrease rate | from +20℃ down to -70℃ within 90min (When unloaded, the ambient temperature is +25℃) | |||||||||
| Humidity control range | 20%R.H～98%R.H | |||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity | ±3.0％RH(unloaded) | |||||||||
| Humidity fluctuation | ±1.0％RH | |||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Warm-box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner chamber material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device | 1 LED lighting device, installed on the window. | |||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor (2 sets) | |||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system | air-cooled | |||||||||
| Safety protection device |
Tank low water level warning. |
|||||||||
| Power | AC220V;50Hz;5.5KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC380;V50Hz;13KW | |||||
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and more
Supply Ability: 200 sets / month
The INFINITY Constant Temperature and Humidity Test Chamber is a reliable and efficient solution for environmental simulation testing of industrial products. With its precise temperature and humidity control accuracy and wide control range, this series of test chambers meets the requirements of GB5170.2.3.5.6-95. It is a programmable chamber that can simulate various environmental conditions for testing the reliability and durability of products.
The chamber is designed to maintain a constant temperature and humidity level, making it ideal for testing products that are sensitive to changes in environmental conditions. It is equipped with advanced technology and high-quality components to ensure the accuracy and stability of test results.
The INFINITY Constant Temperature and Humidity Test Chamber is widely used in various industries for testing the reliability and durability of products under different environmental conditions. Some common applications include:
Choose the INFINITY Constant Temperature and Humidity Test Chamber for accurate and efficient testing of your products. Contact us for more information and to request a quote.
Brand Name: INFINITY
Model Number: IE10A
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets/month
Temperature range: -70℃ ～ +150℃
Features: Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity.
Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording And Processing Methods Are Flexible.
High Reliability: The Key Parts Are Imported Parts To Ensure Service Life And Reliability.
Heating rate: From -70℃ Up To +100℃ Within 90min (When Unloaded, The Ambient Temperature Is +25℃)
Coolants: Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic
Humidity deviation: ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH)
Key words: Environmental Test Chambers, Programmable constant temperature and humidity test chamber
Our constant temperature and humidity test chamber is carefully packaged to ensure safe delivery to our customers. The packaging materials used are sturdy and durable, providing protection against any potential damage during transportation.
Each chamber is first wrapped with a layer of protective foam, followed by a layer of bubble wrap. It is then placed in a strong and secure cardboard box, which is sealed with tape to prevent any openings. The box is then labeled with the product name, model number, and handling instructions.
We offer both standard and customized packaging options to meet the specific requirements of our customers. We can also add additional protection and labeling upon request.
For shipping, we work with reliable and efficient freight companies to ensure timely delivery to our customers. We offer various shipping methods such as by sea, air, or land, depending on the destination and urgency of the order.
Upon receiving the product, customers are advised to carefully inspect the package for any signs of damage during transportation. If any issues are found, please contact our customer service team immediately for assistance.
Thank you for choosing our constant temperature and humidity test chamber. We are committed to providing high-quality products and excellent customer service.
