| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE10 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Features: | Energy Saving And Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Easy To Operate: Programmable Color LCD Touch Controller Includes PID Control; Experimental Data Recording An | Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. |
|---|---|---|---|
| Warm-keeping Box: | ● Outer Chamber Material: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole ● Inner Material :SUS304# Stainless Steel Plate. ● Insulation Material: Hard Polyurethane Foam Insul | Humidity Deviation: | ±3.0％RH（＞75％RH） ±5.0％RH（≤75％RH） |
| Refrigeration Compressor: | France Tecumseh Fully Closed Compressor | Coolants: | Non-fluorine Environmental Refrigerant R404A, In Line With Environmental Regulations, Safe And Non-toxic |
| Lighting Device: | 1 LED Lighting Device, Installed On The Window. | Power: | AC220V;50Hz;4.5kw-11kw |

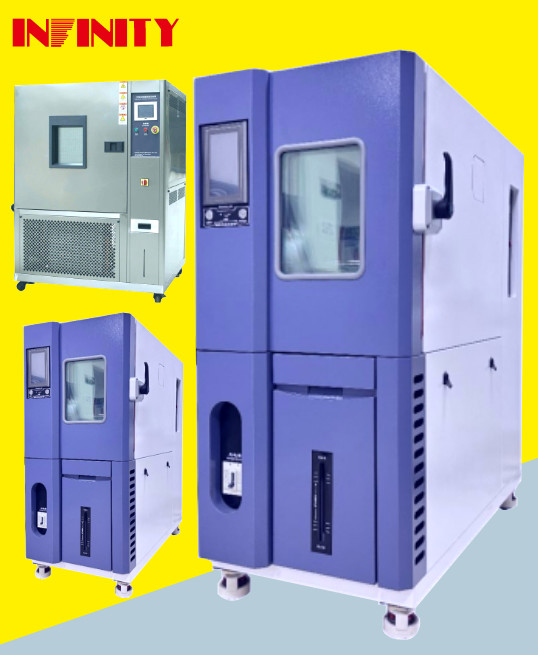

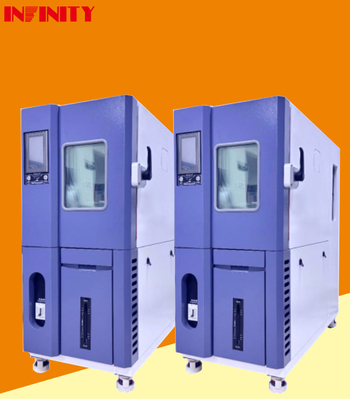

±0.5C Temperature Fluctuation Constant Temperature Humidity Test Chamber with Energy Saving Features
This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products. It has the characteristics of temperature and humidity control accuracy and wide control range. The performance indicators meet the requirements of GB5170.2.3.5.6-95.
Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic.
From -40℃ to +100℃ within 60 minutes (no load, ambient temperature +25℃).
±3.0％RH (no load)
Brand Name: INFINITY
Model Number: IE10
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
The INFINITY Constant Temperature and Humidity Test Chamber is an essential equipment for conducting environmental simulation reliability tests of industrial products. It is widely used in various industries such as electronics, automotive, aerospace, and pharmaceuticals. The chamber provides precise control over temperature and humidity conditions, making it an ideal choice for testing the performance and durability of products under extreme weather conditions.
The INFINITY Constant Temperature and Humidity Test Chamber is designed to meet the requirements of GB5170.2.3.5.6-95. It is equipped with a high precision temperature and humidity control system, allowing for a wide control range and accurate control of fluctuations. The chamber also features an air-cooled condenser system, ensuring efficient heat dissipation and stable temperature and humidity levels.
The chamber is equipped with 1 LED lighting device, installed on the window. This allows for easy observation and monitoring of the testing process.
The temperature fluctuation of the chamber is ±0.5℃, ensuring precise and stable testing conditions.
The temperature range of the chamber is -40℃ ～ +150℃, making it suitable for testing products under extreme temperature conditions.
The air-cooled condenser system of the chamber ensures efficient heat dissipation and stable temperature and humidity control.
To order the INFINITY Constant Temperature and Humidity Test Chamber, please contact us with your specific requirements and we will provide you with a competitive quote. We accept various payment methods and have a supply ability of 200 sets per month, ensuring timely delivery of your order.
| Model | IE10 150L | IE10 225L | IE10 408L | IE10 800L | IE10 1000L | ||||
| Temp. range | -40℃ ～ +150℃ | ||||||||
| Temp. fluctuation | ±0.5℃ | ||||||||
| Temp. uniformity | ≦2.0℃ | ||||||||
| Heating rate | from -40℃ to +100℃ within 60min (No load, ambient temperature +25℃) | ||||||||
| Temp. decrease rate | from +20℃ to -40℃ within 60min (No load, ambient temperature +25℃) | ||||||||
| Humidity control range | 20%R.H～98%R.H | ||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
||||||||
| Humidity uniformity | ±3.0％RH(no load) | ||||||||
| Humidity fluctuation | ±1.0％RH | ||||||||
|
|
|||||||||
|
Inside dimensions: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | ||||
|
Outside box size: WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | ||||
| Warm-keeping box |
● Outer chamber material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | ||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electro thermal coated glass can effectively keep heat and prevent condensation. | ||||||||
| Lighting device | 1 LED lighting device, installed on the window. | ||||||||
| Sample holder | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | ||||||||
| Refrigeration compressor | France Tecumseh fully closed compressor | ||||||||
| Coolants | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | ||||||||
| Condenser system | air-cooled | ||||||||
| Safety protection device | Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. | ||||||||
| Power | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | ||||
Brand Name: INFINITY
Model Number: IE10
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Features:
Specifications:
Programmable Constant Temperature and Humidity Test Chamber:
Our INFINITY Constant Temperature and Humidity Test Chamber is designed to provide precise and stable temperature and humidity control for various testing applications. With our programmable system, you can easily set and adjust the desired temperature and humidity levels according to your testing needs.
Our chambers are available in different sizes to accommodate different sample sizes and testing requirements. The models include IE10 150L, IE10 225L, IE10 408L, IE10 800L, IE10 1000L.
Our test chamber is designed with energy-saving and consumption reduction in mind. We use a gas-liquid bypass mode to adjust the cooling capacity, ensuring that the temperature and humidity are maintained at a constant level without wasting energy.
The programmable color LCD touch controller makes it easy to operate the chamber. It includes PID control and offers flexible options for recording and processing experimental data.
We use high-quality imported parts for key components to ensure the reliability and longevity of our chambers. The sample holder is made of stainless steel and can hold up to 30kg per layer, with 2 adjustable layers to accommodate different sample sizes.
With a temperature fluctuation of only ±0.5℃ and humidity uniformity of ±3.0％RH (no load), our test chamber provides precise and consistent testing conditions for reliable results.
Choose INFINITY for your constant temperature and humidity testing needs, and experience the convenience, accuracy, and reliability of our programmable test chambers.
The constant temperature and humidity test chamber is carefully packaged to ensure safe delivery to our customers. It is first wrapped in protective film to prevent any scratches or damage during transportation. Then, it is placed in a sturdy wooden box and securely fastened with straps to prevent any movement or shifting.
For international shipments, the product is packed in compliance with international regulations and standards. This includes proper labeling and documentation to ensure smooth customs clearance.
Our company works with reliable and experienced shipping companies to ensure timely and safe delivery of our products. We also offer the option of air or sea freight, depending on the customer's preference and urgency of delivery.
Once the shipment is ready, we will provide our customers with the necessary tracking information so they can monitor the progress of their order.
At our company, we take pride in our packaging and shipping process to ensure that our customers receive their constant temperature and humidity test chamber in pristine condition.
