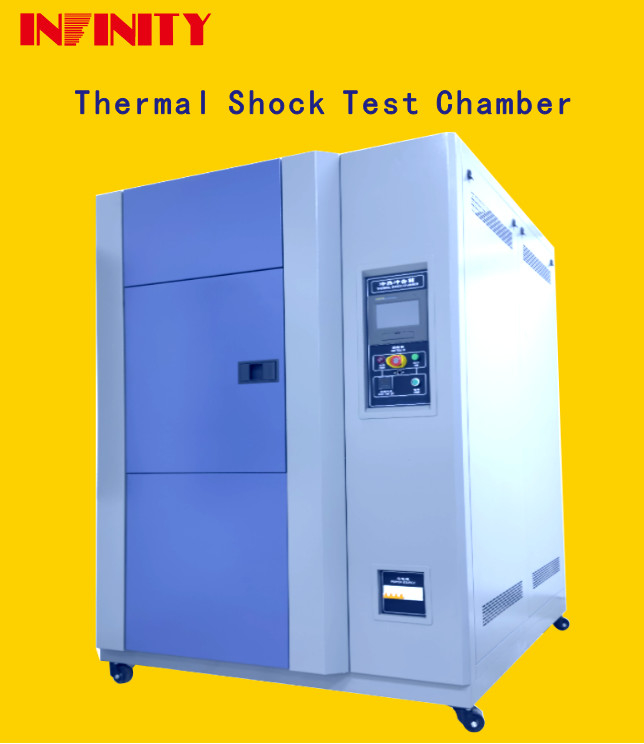

Thermal Shock Test Chamber IE31 Heating Rate 80L 100L Capacity SUS304 Inner Material

Product Description:

The Thermal Shock Test Chamber is a high-quality testing equipment designed to simulate extreme temperature conditions and assess the performance of materials, components, and products. It is ideal for manufacturers, research laboratories, and quality control departments to ensure the reliability and durability of their products.

The sample holder of this chamber is made of stainless steel and has 2 layers. It is height adjustable and can bear a weight of 30kg per layer. This allows for the testing of various sizes and types of samples, making it a versatile and efficient testing equipment.

The Thermal Shock Test Chamber complies with various international and national standards, including GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001 GB/T2423.22-1989 Temperature Change Test, National Military Standard GJB150.3-86, National Military Standard GJB150.4-86, National Military Standard GJB150.5-86, GJB150.5-86 Temperature Shock Test, GJB360.7-87 Temperature Impact Test, GJB367.2-87405 Temperature Impact Test, J/T10187-91Y73 Series Temperature Change Test Box - Three Box Type, and IEC68-2-14 Test Method N Temperature Change. This ensures that the test results are accurate and reliable.

The Thermal Shock Test Chamber is a type of programmable rapid temperature change test chamber, also known as a programmable hot cold shock test chamber. It can quickly and accurately change the temperature between high and low extremes, making it an ideal testing equipment for materials and products that are subjected to drastic temperature changes.

The Thermal Shock Test Chamber has several features that make it stand out from other testing equipment:

• Consumption Reduction: This chamber uses a gas-liquid bypass mode to adjust the cooling capacity, achieving constant temperature and humidity. This results in reduced energy consumption and cost savings for the user.
• High Reliability: The key parts of this chamber are imported to ensure a longer service life and reliability. This makes it a valuable investment for businesses, as it reduces maintenance and replacement costs.
• Easy to Use: The chamber is equipped with a user-friendly control panel and interface, allowing for easy programming and operation. It also has a large observation window for monitoring the testing process.

The Thermal Shock Test Chamber is designed with safety as a top priority. It is equipped with various safety protection devices, including heater anti-burning protection, heater over current protection, circulating fan over current overload protection, compressor high pressure protection, compressor overheat protection, compressor over current protection, over voltage under inverse-phase protection, circuit breaker, and leakage protection. These safety features ensure the protection of the user and the equipment.

Overall, the Thermal Shock Test Chamber is a reliable and efficient testing equipment that can accurately simulate extreme temperature conditions and provide valuable insights into the performance of materials and products. Its versatility, ease of use, and safety features make it a valuable asset for any business or laboratory.

Applications:

The INFINITY IE31 Series Programmable Thermal Shock Test Chamber is a state-of-the-art testing equipment designed for testing the effects of sudden temperature changes on various materials and components. It is suitable for use in a wide range of industries, including electronics, aerospace, automotive, and more.

The INFINITY IE31 Series offers different cooling rates depending on the size of the chamber. For the IE31 80L and 100L models, it takes approximately 55 minutes for the temperature to drop from room temperature to -55℃. For the IE31A 150L to 408L models, it takes about 60 minutes to reach the same temperature.

The IE31 80L model is equipped with a fully closed compressor from France Tecumseh, while the IE31A 100L to 408L models use a semi-compact compressor from German Bitzer. These compressors ensure efficient and reliable cooling performance, even under extreme temperature conditions.

The sample holder for the INFINITY IE31 Series is made of stainless steel and can hold up to 30kg per layer. It is designed with 2 layers, which are height-adjustable to accommodate various sample sizes. This ensures that the samples are evenly exposed to the temperature changes during the testing process.

The IE31 Series boasts a temperature recovery time of within 5 minutes. This means that after the thermal shock test, the chamber can quickly return to room temperature, allowing for more efficient and continuous testing.

The INFINITY IE31 Series Programmable Thermal Shock Test Chamber is suitable for testing the effects of sudden temperature changes on materials such as electronic components, rubber, plastic, and more. It is widely used in industries such as electronics, aerospace, automotive, and research institutes.

• Programmable Cryogenic Thermal Shock Chamber
• Programmable Rapid Temperature Change Test Chamber
• Temperature Recovery Time within 5 minutes
• Efficient Cooling Rate
• Stainless Steel Sample Holder with 2 adjustable layers
• Reliable Refrigeration Compressor

The INFINITY IE31 Series Programmable Thermal Shock Test Chamber is a high-quality and reliable testing equipment that can help ensure the quality and reliability of various materials and components. With its advanced features and customizable options, it is a valuable tool for any industry that requires testing for sudden temperature changes.

Customization:

Brand Name: INFINITY

Model Number: IE31 Series

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 200 sets/month

Inspection Window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.

Chamber Volume Size: 80L to 408L

Inner Material: SUS304# Stainless Steel Plate

Cooling Rate: IE31 80L - 100L: It Takes About 55min For RT To Drop To -55℃; IE31A 150L - 408L: It Takes About 60min For RT To Drop To -55℃

Type: Thermal Shock Testing Chamber

Key Features: Programmable Rapid Temperature Change Test Chamber, Programmable Thermal Cycling Shock Test Chamber, Programmable Temperature Impact Test Chamber
