Name: Thermal Shock Test Chamber High-Performance with Semi-compact Compressor
Brand: Infinity Machine International Inc.
SKU: IE31 Series
Price: negotiable USD
Availability: InStock

Home Products Thermal Shock Test Chamber

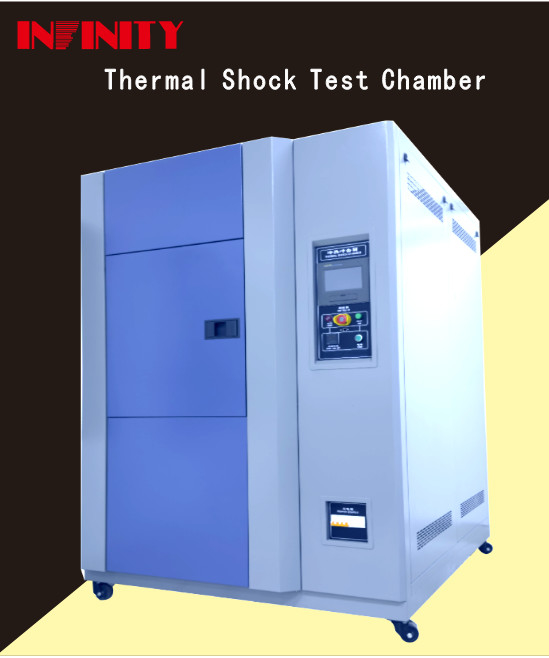

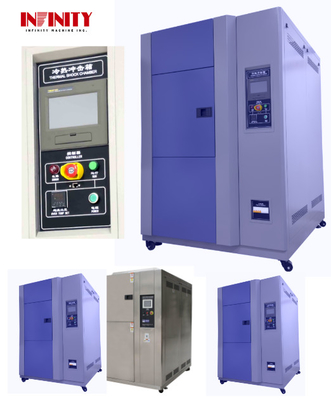

Thermal Shock Test Chamber High-Performance with Semi-compact Compressor

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	INFINITY
Certification:	CE ISO
Model Number:	IE31 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	TT PAYPAL Moneygram and so on
Supply Ability:	200 sets / month

Contact Now

Detailed Product Description

Models::	IE31 80L IE31 100L, IE31 150L, IE31 225L, IE31 408L	Test Standards:	GB/T2423.1-2001 Low Temperature Test Method; GB / T2423.2 - 2001 GB/T2423.22-1989 Temperature Change Test ; National Military Standard GJB150.3-86; National Military Standard GJB150.4-86; National Military Standard GJB150.5-86; GJB150.5-86 Temperatu
Inner Material:	SUS304# Stainless Steel Plate.	Safety Protection Device:	Heater Anti-burning Protection; Heater Over Current Protection; Circulating Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Inverse-phase Prot
Test Temperature Range:	-40°C~+150°C	Heating Rate:	IE31 80L - 100L: It Takes About 35min For RT To Drop To -55℃; IE31A 150L - 408L: It Takes About 40min For RT To Drop To -55℃
Equipment Overview:	For Users Of The Product Machine (or Components), Electrical Appliances, Instruments, Materials, Coatings, Coatings, Etc., For The Corresponding Climate Change Test, Suitable For Electrical, Electronic, Mechanical Industries And Other Products, Parts, Mate	Refrigeration Compressor:	IE31 80L France Tecumseh Fully Closed Compressor ; IE31A 100L-408L Use German Bitzer Semi-compact Compressor

Thermal Shock Test Chamber High-Performance with Semi-compact Compressor IE31

Product Description:

Product Overview: Programmable Thermal Shock Chamber

The Programmable Thermal Shock Chamber is designed to simulate extreme temperature changes, allowing for the testing of products under extreme conditions. This chamber is perfect for industries such as electronics, automotive, aerospace, and more, ensuring the reliability and durability of products in harsh environments.

Product Attributes:

Inner Material: Made of high-quality SUS304# stainless steel plate, providing excellent durability and corrosion resistance. This material ensures the chamber's long-term stability and reliability.
Heating Rate: The chamber is equipped with IE31 technology, which enables a rapid heating rate. For 80L to 100L chambers, it takes approximately 35 minutes for room temperature to drop to -55℃. For 150L to 408L chambers, it takes about 40 minutes for the same temperature drop.
Sample Holder: The chamber comes with a stainless steel sample rack with 2 layers, which are height adjustable. Each layer can bear up to 30kg of weight, providing ample space for testing various samples.
Coolants: The chamber uses non-fluorine environmental refrigerant R404A and R23, which conform to environmental regulations and are safe and non-toxic. This coolant ensures the chamber's efficient cooling and heating performance.
Outer Material: The chamber's outer material is made of high-quality carbon steel plate and treated with electrostatic color spray, making it resistant to corrosion and wear. The left side of the box has a φ50mm diameter hole for convenient testing.

Product Keywords:

Programmable Thermal Shock Chamber, Programmable Rapid Temperature Change Test Chamber, Programmable Temperature Impact Test Chamber

Applications:

INFINITY Thermal Shock Test Chamber

Product Overview

The INFINITY Thermal Shock Test Chamber is a state-of-the-art equipment designed for testing the effects of thermal shock on various products and materials. It is suitable for use in electrical, electronic, mechanical industries and other products, parts, materials, etc. The chamber can simulate temperature and humidity changes under the condition of cold and thermal shock test, allowing users to evaluate the quality of their products.

Product Attributes

Brand Name: INFINITY
Model Number: IE31 Series
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and more
Supply Ability: 200 sets / month

Equipment Models

IE31 80L
IE31 100L
IE31 150L
IE31 225L
IE31 408L

Refrigeration Compressor

The IE31 80L model uses a fully closed compressor from France Tecumseh, while the IE31A 100L-408L models use a semi-compact compressor from German Bitzer. Both options ensure efficient and reliable performance.

Heating Rate

The heating rate of the IE31 80L - 100L models is approximately 35 minutes for room temperature to drop to -55℃. For the IE31A 150L - 408L models, it takes about 40 minutes for room temperature to drop to -55℃.

Condenser System

The IE31 80L-100L models are air-cooled, while the IE31 150L-408L models are water-cooled, ensuring efficient and stable cooling for the chamber.

Application and Usage

The INFINITY Thermal Shock Test Chamber is widely used in various industries for testing the effects of thermal shock on products, components, electrical appliances, instruments, materials, coatings, and more. It is essential for conducting quality control tests and ensuring the reliability and durability of products.

Model	IE 3180L		IE 31100L		IE 31150L		IE 31225L	IE 31408L
Temperature Range	-40℃ ～ +150℃
Temperature Fluctuation	±1℃
Temperature Uniformity	≦2.0℃
Temperature Recovery Time	Within 5 min
Heating rate (heat storage area)	Up from RT to + 150℃ About 35m in is required				Up from RT to + 150℃ About 40m in is required
Cooling rate (cold storage area)	Down from RT to-40℃ Approximately 55min is required				Down from RT to-40℃ Approximately 60min is required
Internal box size: WxHxD(mm )	500x 400x400		500x 400x500		500x 600x500		500x750x600	600×850×800
Out chamber size: WxHxD(mm )	1480×1450 ×1950		1480×1485×2050		1500×1750×2150		1600×1900×2250	1800x2000x2500
Thermal insulation box	● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber.
Box door	Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature.
Observation window	A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation.
Specimen holder	Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer.
Refrigeration Compressor	France Tecumseh fully closed compressor	France Tecumseh fully closed compressor			Half-compact compressor in Bizel, Germany	Half-compact compressor in Bizel, Germany		Half-compact compressor in Bizel, Germany
Cooling medium	Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic
Condenser mode	air-cooled	air-cooled			water-cooled	water-cooled		water-cooled
Safety protection device	Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection.
Power source	AC380V;50Hz;18KW			AC 380;V50Hz;18KW	AC 380;V50Hz;22KW	AC 380;V50Hz;22KW		AC 380;V50Hz;25KW

Customization:

Brand Name: INFINITY

Model Number: IE31 Series

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Chamber Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.

Models: IE31 80L, IE31 100L, IE31 150L, IE31 225L, IE31 408L

Safety protection device: Heater Anti-burning Protection; Heater Over Current Protection; Circulating Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Inverse-phase Protection; Circuit Breaker; Leakage Protection.

Type: Thermal Shock Testing Chamber

Inner material: SUS304# Stainless Steel Plate.

Key Features: Programmable Temperature Impact Test Chamber, Programmable Thermal Shock Chamber, Programmable High-Low Temperature Shock Test Chamber

Packing and Shipping:

Packaging and Shipping for Thermal Shock Test Chamber

Our Thermal Shock Test Chamber is carefully packaged to ensure its safe delivery to our customers. We use high-quality materials and techniques to protect the chamber from any potential damage during shipping. Here is a breakdown of our packaging and shipping process:

Packaging:

The Thermal Shock Test Chamber is first wrapped in a layer of protective foam to prevent any scratches or dings.
It is then placed in a sturdy cardboard box, which is specifically designed to fit the chamber and provide additional protection.
The box is sealed with high-strength tape to ensure that it does not open during transit.
For added protection, the chamber is placed in a larger crate or pallet, depending on its size and weight.
The crate or pallet is then securely strapped and labeled with clear instructions and handling precautions.

Shipping:

We work with reliable and trusted shipping companies to ensure timely and safe delivery of the Thermal Shock Test Chamber.
The shipping method and carrier are selected based on the destination, size, and weight of the chamber.
We provide tracking information to our customers so they can monitor the progress of their shipment.
For international shipments, we handle all necessary documentation and customs procedures to ensure a smooth delivery process.

At our company, we take great care in packaging and shipping our products to maintain their quality and integrity. We are dedicated to providing our customers with the best experience possible, from purchase to delivery.
