Product Description:

The Thermal Shock Test Chamber is a high-quality, durable and efficient testing equipment designed for conducting thermal shock tests on various samples. It is suitable for a wide range of industries such as electronics, aerospace, automotive, and more.

The power supply for the Thermal Shock Test Chamber is available in different options depending on the chamber's size. The IE31 80L-100L option runs on AC380V, 50Hz, and 18KW. The IE31 150L-225L option runs on AC380V, 50Hz, and 22KW. The IE31A 408L option runs on AC380V, 50Hz, and 25KW. This ensures stable and reliable power supply for the chamber's operation.

The outer material of the chamber is made of high-quality carbon steel plate, which is known for its durability and strength. The surface is treated with electrostatic color spray to provide a smooth and aesthetically pleasing finish. The left side of the chamber is equipped with a φ50mm diameter hole for easy access and convenience.

The Thermal Shock Test Chamber comes with a stainless steel sample rack that has 2 layers and is height adjustable. This allows for convenient placement of samples of different sizes and shapes. Each layer can bear a weight of up to 30kg, ensuring the safety of the samples during the testing process.

The temperature recovery time for the Thermal Shock Test Chamber is within 5 minutes, ensuring efficient and quick testing of samples. This feature saves time and increases productivity, making it an ideal choice for industries with strict time constraints.

The cooling rate of the Thermal Shock Test Chamber varies depending on the chamber's size. The IE31 80L-100L option takes approximately 55 minutes for the temperature to drop from room temperature to -55℃. The IE31A 150L-408L option takes about 60 minutes for the temperature to drop to -55℃. This fast cooling rate ensures accurate and precise testing results.

• Programmable Thermal Shock Chamber
• Programmable Humidity Thermal Shock Test Chamber
• Programmable Temperature Impact Test Chamber
• Thermal Shock Testing Equipment

Overall, the Thermal Shock Test Chamber is a reliable and efficient testing equipment that meets industry standards and offers exceptional performance. Its advanced features and durable construction make it a valuable addition to any laboratory or testing facility.

Applications:

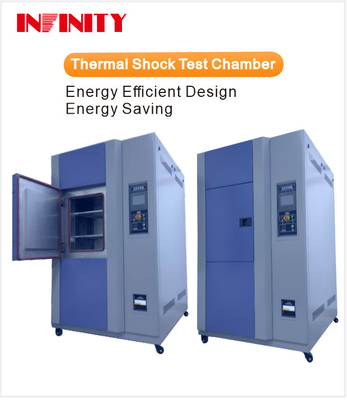

INFINITY IE31 Series Thermal Shock Test Chamber

INFINITY IE31 Series Thermal Shock Test Chamber is a high-quality and reliable product designed and manufactured by INFINITY, a leading brand in China. It is certified with CE and ISO, ensuring its quality and safety. The minimum order quantity is 1, and the price is negotiable based on your specific needs. The packaging is carefully designed to protect the product during transportation, with clear sheets, sponges, and a wooden carton. The delivery time is 20-30 days after the order is confirmed, and we accept various payment methods such as TT, PayPal, and Moneygram. Our supply ability is 200 sets per month, ensuring timely delivery for our customers.

The INFINITY IE31 Series Thermal Shock Test Chamber is widely used in various industries, including electronics, aerospace, automotive, and medical industries. It is the perfect solution for testing the ability of a product to withstand extreme temperature changes, ensuring its reliability and durability. The chamber is designed to simulate the harsh environments that a product may encounter during its lifetime, providing accurate and reliable results.

• Model	IE 3180L		IE 31100L		IE 31150L		IE 31225L	IE 31408L
  Temperature range	-40℃ ～ +150℃
  Temperature fluctuation	±1℃
  Temperature uniformity	≦2.0℃
  Temperature recovery time	Within 5M in c
  Heating rate (heat storage area)	Up from RT to + 150℃ About 35m in is required				Up from RT to + 150℃ About 40m in is required
  Cooling rate (cold storage area)	Down from RT to-40℃ Approximately 55min is required				Down from RT to-40℃ Approximately 60min is required
  Internal chamber size: WxHxD(mm )	500x 400x400		500x 400x500		500x 600x500		500x750x600	600×850×800
  Out chamber size: WxHxD(mm )	1480×1450 ×1950		1480×1485×2050		1500×1750×2150		1600×1900×2250	1800x2000x2500
  Thermal insulation box	● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber.
  Chamber door	Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature.
  Observation window	A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation.

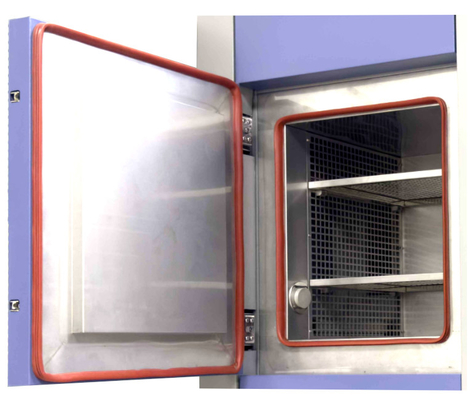

  Specimen holder	Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer.
  Refrigeration compressor	France taikang fully closed compressor	France taikang fully closed compressor			Half-compact compressor in Bizel, Germany	Half-compact compressor in Bizel, Germany		Half-compact compressor in Bizel, Germany
  Cooling medium	Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic
  Condenser mode	air-cooled	air-cooled			water-cooled	water-cooled		water-cooled
  Safety protection device	Heater air defense incineration protection; heater over current protection; circulation fan overcurrent overload protection; compressor high pressure protection;. Compressor overheat protection; compressor overcurrent protection; overvoltage underreverse phase protection; circuit breaker; leakage protection.
  Power	AC380V;50Hz;18KW			AC 380;V50Hz;18KW	AC 380;V50Hz;22KW	AC 380;V50Hz;22KW		AC 380;V50Hz;25KW



The INFINITY IE31 Series Thermal Shock Test Chamber is equipped with advanced and programmable features, making it easy to operate and customize according to your testing requirements. The temperature and time can be set and controlled precisely, with a test temperature range of -40°C~+150°C and a temperature fluctuation of ±1℃. The chamber also has a fast temperature recovery time of ≤5 minutes, allowing for efficient and continuous testing. With these programmable features, the chamber can simulate various extreme temperature changes, providing accurate and reliable results for your product testing needs.

The INFINITY IE31 Series Thermal Shock Test Chamber is a top-of-the-line product that is suitable for a wide range of industries and applications. Its advanced features, reliable performance, and high-quality design make it an essential tool for testing the durability and reliability of products in extreme temperature conditions. Choose INFINITY, and experience the best thermal shock test chamber for your testing needs.

Customization:

Brand Name: INFINITY

Model Number: IE31 Series

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

• GB/T2423.1-2001 Low Temperature Test Method
• GB/T2423.2 - 2001
• GB/T2423.22-1989 Temperature Change Test
• National Military Standard GJB150.3-86
• National Military Standard GJB150.4-86
• National Military Standard GJB150.5-86
• GJB150.5-86 Temperature Shock Test
• GJB360.7-87 Temperature Impact Test
• GJB367.2-87405 Temperature Impact Test
• J/T10187-91Y73 Series Temperature Change Test Box - Three Box Type
• Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change

Programmable Thermal Shock Test Chamber

• Programmable Hot Cold Shock Test Chamber
• Programmable Alternating Thermal Shock Chamber
• Programmable High-Low Temperature Shock Test Chamber

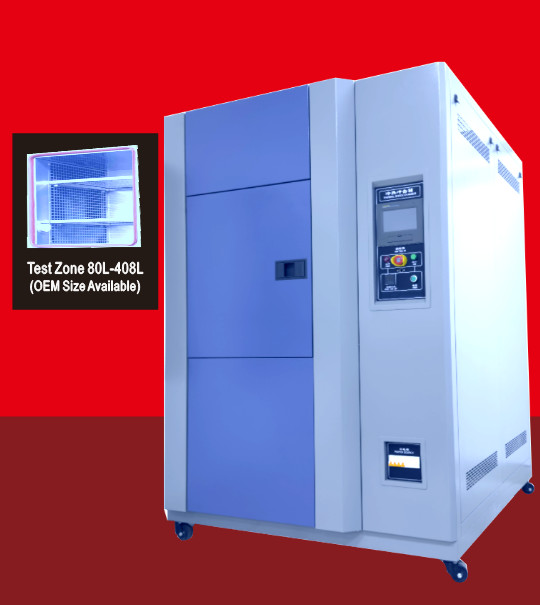

• Test Chamber Size: 80L/150L/225L/408L
• Condenser System: IE31 80L-100L: Air-cooled; IE31 150L-408L: Water-cooled
• Temperature Uniformity: ≦2.0℃

Packing and Shipping:

Our thermal shock test chamber is carefully packaged to ensure safe and secure delivery to our customers. The packaging materials used are specifically chosen to protect the equipment during transit and handling.

The chamber is first wrapped in a layer of protective bubble wrap and then placed in a sturdy cardboard box. The corners and edges of the box are reinforced with additional cardboard to prevent any damage from impact during shipping.

For international shipping, the chamber is placed in a wooden crate for added protection. The crate is then secured with straps and marked with "Fragile" and "Handle with Care" labels.

Once packaged, the chamber is shipped via a reliable courier service, with tracking information provided to the customer for their convenience.

We take great care in packaging and shipping our thermal shock test chamber to ensure it arrives at its destination in perfect condition, ready for use.

FAQ:

• Q: What is the brand name of this product?
  A: The brand name of this product is INFINITY.
• Q: What is the model number of this product?
  A: The model number of this product is IE31 Series.
• Q: Where is this product made?
  A: This product is made in China.
• Q: What certifications does this product have?
  A: This product is certified with CE and ISO.
• Q: What is the minimum order quantity for this product?
  A: The minimum order quantity for this product is 1.
• Q: Is the price negotiable for this product?
  A: Yes, the price for this product is negotiable.
• Q: How is this product packaged?
  A: This product is packaged with clear sheet, sponge, and wood carton.
• Q: What is the delivery time for this product?
  A: The delivery time for this product is 20-30 days after order confirmed.
• Q: What are the payment terms for this product?
  A: The payment terms for this product are TT, PAYPAL, Moneygram, etc.
• Q: How many sets of this product are available per month?
  A: This product has a supply ability of 200 sets per month.
