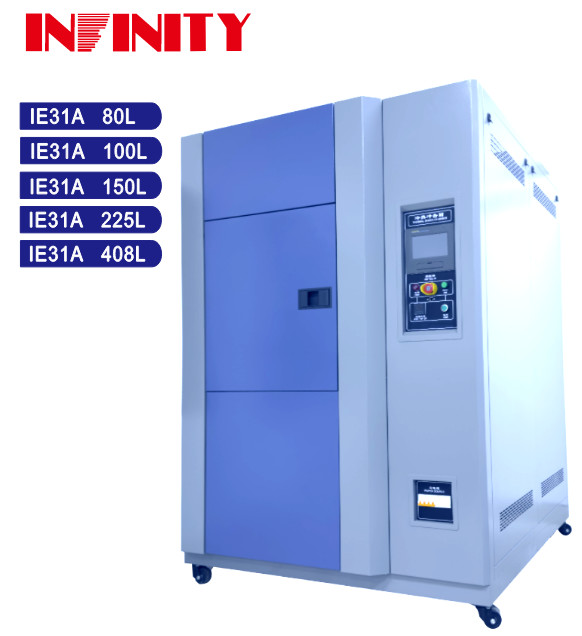

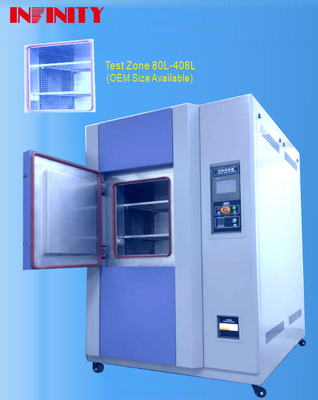

150L Programmable High-Low Temperature Shock Test Chamber Temperature Uniformity ≦2.0C

150L Programmable High-Low Temperature Shock Test Chamber Temperature Uniformity ≦2.0C

Product Description:

The Thermal Shock Test Chamber is a highly advanced and versatile product designed for conducting thermal shock tests on a wide range of materials and components. It is specifically designed to meet the needs of various industries, including electronics, automotive, aerospace, and medical equipment.

The Thermal Shock Test Chamber is available in two different volume sizes, 80L and 408L. This allows users to choose the chamber size that best suits their testing needs. The 80L chamber is ideal for smaller components and materials, while the 408L chamber is suitable for larger items.

The chamber uses non-fluorine environmental refrigerants, R404A and R23, which conform to environmental regulations and are safe and non-toxic. This ensures that the testing process is not harmful to the environment or the user.

The Thermal Shock Test Chamber is a type of programmable temperature impact test chamber. It is specifically designed to subject materials and components to sudden changes in temperature, simulating the harsh conditions they may experience in their intended use environment.

The chamber is equipped with an advanced IE31 condenser system. The 80L chamber uses an air-cooled condenser, while the larger chambers (100L-408L) use a water-cooled condenser. This ensures efficient cooling and temperature control during the testing process.

The heating rate of the Thermal Shock Test Chamber varies depending on the chamber size. The 80L and 100L chambers take approximately 40 minutes for the temperature to drop from room temperature to -55℃, while the larger chambers (150L-408L) take about 50 minutes to reach the same temperature.

The Thermal Shock Test Chamber is equipped with advanced programmable features that allow users to control the temperature and timing of the test. This includes programmable temperature impact test, programmable rapid temperature change test, and various other customizable options.

The Thermal Shock Test Chamber is a highly reliable and efficient product that is essential for conducting thermal shock tests. With its various features and options, it can meet the diverse testing needs of different industries and ensure the quality and reliability of materials and components.

Model	IE31A80L			IE31A100L	IE31A150L		IE31A225L	IE31A408L
temperature range	-55℃ ～ +150℃
temperature fluctuation	±1℃
temperature uniformity	≦2.0℃
temperature recovery time	WITHIN 5Mins
Heating rate	It takes about 40 minutes for RT to rise to +150℃				It takes about 50min for RT to rise to +150℃
Cooling rate	It takes about 65min for RT to drop to -55℃				It takes about 65min for RT to drop to -55℃
Test zone dimension WxHxD(mm)	500x400x400			500x400x500	500x600x500		500x750x600	600×850×800
Out-box dimension: WxHxD(mm)	1480×1450 ×1950			1480×1485×2050	1500×1750×2150		1600×1900×2250	1800x2000x2500
Warm-box	● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole. ● Inner chamber material : SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber.
Chamber door	For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature.
Inspection window	The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation.
SAMPLE HOLDER	Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.
Refrigeration compressor	France Tecumseh fully closed compressor	German Bitzer semi-compact compressor			German Bitzer semi-compact compressor	German Bitzer semi-compact compressor		German Bitzer semi-compact compressor
Coolants	Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic
Condenser system	air-cooled	water-cooled			water-cooled	water-cooled		water-cooled
Safety protection device	Heater anti-burning protection; Heater over current protection; Circulating fan over current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over current protection; Over voltage under inverse-phase protection; Circuit breaker; Leakage protection.
Power supply	AC380V;50Hz;18KW		AC380;V50Hz;18KW		AC380;V50Hz;22KW	AC380;V50Hz;22KW		AC380;V50Hz;25KW

Applications:

The INFINITY IE31A Series Thermal Shock Test Chamber, proudly Made in China, is a state-of-the-art testing equipment designed to simulate extreme temperature changes in a controlled environment. With its CE and ISO certifications, this chamber guarantees reliable and accurate results for various testing needs.

The chamber's brand name, INFINITY, assures customers of its high quality and durability. Its model number, IE31A Series, indicates its advanced features and customization options. This product is suitable for a wide range of applications, making it an essential tool for industries such as electronics, automotive, aerospace, and more.

• Brand Name: INFINITY
• Model Number: IE31A Series
• Place of Origin: MADE IN CHINA
• Certification: CE ISO
• Minimum Order Quantity: 1
• Price: Negotiate
• Packaging Details: Clear sheet+sponge+wood carton
• Delivery Time: 20-30 days after order confirmed
• Payment Terms: TT PAYPAL Moneygram and so on
• Supply Ability: 200 sets / month

The INFINITY Thermal Shock Test Chamber is used for testing the effects of extreme temperature changes on products and materials. It is commonly used for quality control, research and development, and product performance evaluation. This chamber is ideal for testing electronic components, automotive parts, aerospace materials, and other products that are exposed to extreme temperature changes in their daily use.

The chamber is also suitable for testing the durability and reliability of products in different environmental conditions. By subjecting the samples to rapid and extreme temperature variations, the chamber simulates real-world scenarios and helps identify potential weaknesses and flaws in the products.

• Programmable Hot Cold Shock Test Chamber
• Programmable Cryogenic Thermal Shock Chamber
• Thermal Shock Testing Equipment
• Thermal Shock Simulation Chamber
• Temperature range: -55℃ ～ +150℃
• Refrigeration compressor: IE31 80L France Tecumseh Fully Closed Compressor ; IE31A 100L-408L Use German Bitzer Semi-compact Compressor
• Insulation material: Hard Polyurethane Foam Insulation Layer + Glass Fiber
• Sample holder: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer
• Outer material of the chamber: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole

The INFINITY Thermal Shock Test Chamber can be customized according to the specific needs and requirements of the customers. This includes the size, temperature range, and other features of the chamber. The company also offers a variety of sample holders and racks to accommodate different types of products.

The outer material and color of the chamber can also be customized to match the customer's preferences. The company offers a range of options for the refrigeration compressor and insulation material to suit the specific testing needs of the customers.

The INFINITY IE31A Series Thermal Shock Test Chamber is a reliable and efficient testing equipment designed to meet the diverse needs of different industries. With its advanced features, customization options, and high-quality materials, this chamber is a valuable investment for any company looking to ensure the durability and reliability of their products. Contact us now to learn more about this product and how it can benefit your business.



Customization:

Brand Name: INFINITY

Model Number: IE31A Series

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Heating rate: IE31A 80L - 100L: It Takes About 40min For RT To Drop To -55℃; IE31A 150L - 408L: It Takes About 50min For RT To Drop To -55℃

Chamber Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.

Power supply: IE31A 80L -100L: AC380V;50Hz;18KW IE31A 150L - 225L:AC380;V50Hz;22KW; IE31A 408L:AC380;V50Hz;25KW

Insulation material: Hard Polyurethane Foam Insulation Layer + Glass Fiber.

Condenser system: IE31 80L: Air-cooled; IE31A 100L-408L: Water-cooled

Key words: Programmable Alternating Thermal Shock Chamber, Programmable Thermal Shock Chamber, Programmable Thermal Cycling Shock Test Chamber



Packing and Shipping:

Our thermal shock test chamber is carefully packaged to ensure safe delivery to our customers. The packaging materials used are sturdy and provide excellent protection against any potential damage during transportation.

The thermal shock test chamber is first placed in a durable wooden crate, which is then sealed securely. The crate is then placed on a pallet and wrapped with stretch film to prevent any movement during shipping.

For international shipping, the pallet is placed inside a strong and weather-resistant wooden box. This provides an additional layer of protection for the test chamber during long-distance transportation.

We work with reliable and experienced shipping companies to ensure timely and safe delivery of our products. Our thermal shock test chamber can be shipped by air, sea, or land, depending on the customer's preference.

We also offer the option of customized packaging, such as adding foam inserts or extra padding, for customers with specific transportation requirements.

Our packaging and shipping process is designed to ensure that our thermal shock test chamber reaches our customers in perfect condition, ready to perform accurate and precise temperature shock testing.



FAQ:

• Q: What is the model number of this product?
• A: The model number of this product is IE31A Series.

Q: Where is this product made? A: This product is made in China.

• Q: What certifications does this product have?
• A: This product has CE and ISO certifications.

Q: What is the minimum order quantity for this product? A: The minimum order quantity for this product is 1 set.

• Q: Is the price of this product negotiable?
• A: Yes, the price of this product is negotiable.

Q: How is this product packaged? A: This product is packaged with clear sheet, sponge, and wood carton.

• Q: How long is the delivery time for this product?
• A: The delivery time for this product is 20-30 days after order confirmed.

Q: What are the accepted payment terms for this product? A: The accepted payment terms for this product are TT, PayPal, Moneygram, and others.

• Q: What is the supply ability for this product?
• A: The supply ability for this product is 200 sets per month.
