| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | IN-5600 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Alcohol Abrasion Testing Machine: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Alcohol Abrasion Test Machine: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | Ethanol Abrasion Test Machine: 200 sets per month |
| Testing Stroke: | 2~20mm Or Specified By User | Load: | 80~1000gf |
|---|---|---|---|
| Poise: | 10, 20, 50, 100, 200, 500kgf | Testing Speed: | 10~60 Times/min （digital Display） |
| Abrasion Medium: | Ethanol, Eraser，Pencil | Dimension: | 530x490x850mm |
| Weight: | 45kg | Power Supply: | AC220V 50Hz 5A Or Specified By User |
| Highlight: | din abrasion tester,rotary abrasion tester |
||
Application:

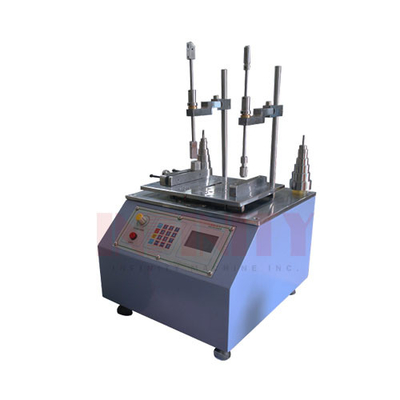

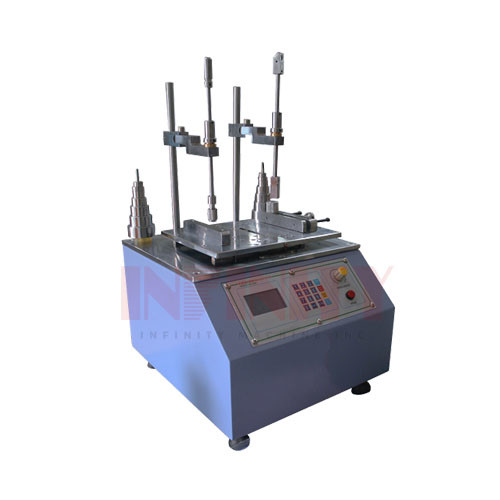

Alcohol abrasion resistance tester apply for abrasion test for coating surface or silkscreen printing of mobile phone, computer, electronic devices, to check the anti-abrasion ability and the adhesive ability of coating or silkscreen printing.
Feature:
Alcohol / pencil / eraser abrasion resistance test machine can test abrasion (with alcohol/eraser),and hardness test with pencil drawing at the same time.
With many tester cap, jig, ethanol/pencil/eraser/rubber abrasion resistance tester suitable for testing mobile and laptop computer and so on.
Digital display for speed, times, abrasion resistance testing machine can adjust the stroke under non- stop working.
Abrasion resistance test equipment adopt Japan precision component, low noise, durable using.
Abrasion resistance test device adopt Japan Mitsubishi LCD touching screen control.(optional)
Specification:
| Model | IN-5600 |
| Testing stroke | 2~20mm or 5~50mm or specified by user |
| Load | 80~1000gf |
| Poise | 10, 20, 50, 100, 200, 500kgf |
| Max supporting weight on table | 5kgf |
| Testing speed | 10~60 times/min |
| Control method | digital display or touch panel (option) |
| Counter | 1~999,999times(can be set) |
| Abrasion medium | Ethanol/alcohol, eraser, Pencil |
| Dimension (WxDxH) | 530x490x850mm |
| Weight | 45kg |
| Power supply | AC220V 50Hz 5A or specified by user |
Service:
For more information about abrasion resistance testing machines, please contact us.
