| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | IN-300SD |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Capacity: | 300KN (30T) | Effective Range: | 6KN~300KN |
|---|---|---|---|
| Force Accuracy: | ±1% | Deformation Testing Accuracy: | ±0.5% |
| Displacement Measurement Resolution: | 0.01mm | The Max Tension Space: | 800mm |
| The Max Compression Pace: | 700mm | Flat Sample Clamping Thickness: | 0~15mm |
| Flat Sample Clamping Width: | 80mm | Clamping Diameter Of Round Specimen: | φ6~φ26mm |
| Highlight: | hydraulic testing equipment,computerised universal testing machine |
||

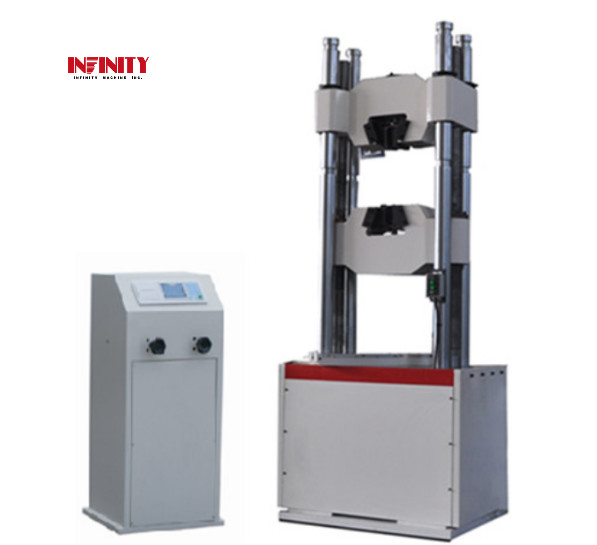

Digital Display Hydraulic Universal Testing Machine with High Pressure Pump
Model: IN-300SD/600SD/1000SD
Purpose:
Digital-display hydraulic universal testing machine adopts six-column main machine with oil cylinder underneath. It is used for tensile, compression, bending and shearing test on various metallic materials; also used for compression test on non-metallic materials including plastics, concrete and cement. If added simple attachment, it can do various performance tests on tape chain, steel wipe rope, welding electrode, tile and components. This machine adopts oil cylinder underneath, with low height, it is specially suitable for engineering construction department.
With electronic force measurement and digital display for force-time curve, testing force, force peak value and yield force of materials with obvious yield feature, the test data is more convenient and visual; by imputing specimen number and cross-sectional area, you can directly test material’s tensile strength, yield strength and other mechanical properties; test result can be printed.
Specification:
| Model | IN-300SD | IN-600SD | IN-1000SD |
| Capacity | 300KN (30T) | 600KN (60T) | 1000KN (100T) |
|
Testing force effective range |
6KN~300KN | 12KN~600KN | 20KN~1000KN |
| Force accuracy | ±1% | ||
| Displacement measurement resolution | 0.01mm | ||
| The Max tensile space(Including stroke of piston) | 800mm | 800mm | 850mm |
| The Max compression pace (Including stroke of piston) | 700mm | 700mm | 750mm |
| Flat sample clamping thickness | 0~15mm | 0~30mm | 0~40mm |
| Flat sample clamping width | 80mm | 80mm | 120mm |
| Clamping diameter of Round specimen(mm) | φ6~φ26 | φ13~φ40 | φ13~φ60 |
| Compression plate | 204mmX204mm | 204mmX204mm | 204mmX204mm |
| Support roller space of bending test | 450mm | 450mm | 450mm |
| Width of support roller | 140mm | 140mm | 140mm |
| Piston stroke | 250mm | 250mm | 250mm |
| Diameter of pivot | 30mm | 30mm | 40mm |
| Pump type | High-pressure pump | ||
| Dimension |
Machine: 990x600x2435mm Oil source: 560x510x1200mm |
Machine: 900x600x2425mm Oil source: 560x510x1200mm |
Machine: 1100x770x2490mm Oil source: 560x510x1200mm |
| Weight | About 2700kg | About 2800kg | About 4500kg |
| Power supply | Three phases AC380V 50Hz or specified by user | ||
Basic configuration of system:
Main machine of tester
Digital-display electrical system
Oil source control cabinet
High-precision load cell
Flat specimen jaw:0～15mm
Round specimen jaw:φ6～φ26mm
Full set attachment grips include: compression fixture & bending fixture
Technical data: Operation manual
