| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8108 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Test Counter: | 1 Pc | Applied Tensile Force: | 4～111N |
|---|---|---|---|
| Torsion Angle: | 360° | Torsion Speed: | 10～60rpm (adjustable) |
| Spacing Of Grips: | 203～500mm (adjustable) | Weight: | 115kg |
| Dimension: | 1300x520x1200mm | Power: | AC220V,3A Or Specified By User |
| Highlight: | torsional testing machine,torque testing machine |
||

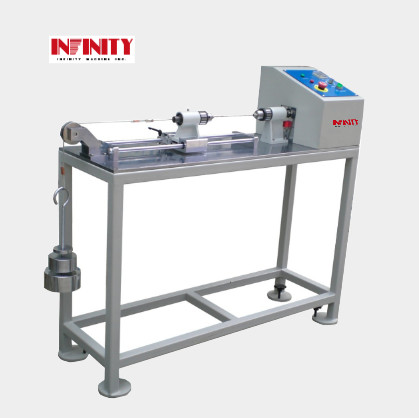

Computerised Torsion Spring Tester 360° ASTM A 938-2004 Electric Type
Model: RS-8108
Purpose:
This tester is suitable for the twist strength testing of metal wires and the cable isolation layer, put one end of specimen on the fixture and fix it, and twist another end of the specimen till the specimen is broken, and collect the cycles of twisting.
Standard: ASTM A 938-2004
Specification:
| Model | RS-8108 |
| Test counter | 1 pc |
| Applied Tensile Force | 4～111N |
| Torsion angle | 360° |
| Torsion speed | 10～60rpm (adjustable) |
| Spacing of grips | 203～500mm (adjustable) |
| Set counter | 1~999,999times (can set) |
| Weight | 115kg |
| Dimension (WxDxH) | 1300x520x1200mm |
| Power | AC220V,3A or specified by user |
