| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Model Number: | B8120R |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Stalinite Glass Shotgun Bag Impact Test Machine: Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Laminated Glass Impact Tester: Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | Shotgun bag impact testing machine: 50 sets per month |
| Product Name: | Glass Impact Testing Machine/Glass Drop Impact Test Machine/Impact Drop Tester | Model: | B8120R |
|---|---|---|---|
| Impact Way: | Pendulum Bob | Swing Arm Radius: | 300~1200mm |
| Impact Canister ’s Weight: | 45kg±0.1kg | The Canister Ball Dia.: | ∮2.5mm |
| Warranty: | 12months | Power Supply: | AC220V 50Hz Or Specified By User |
| Highlight: | packaging testing instruments,packaging testing equipment,Safety Glass Impact Test Equipment |
||

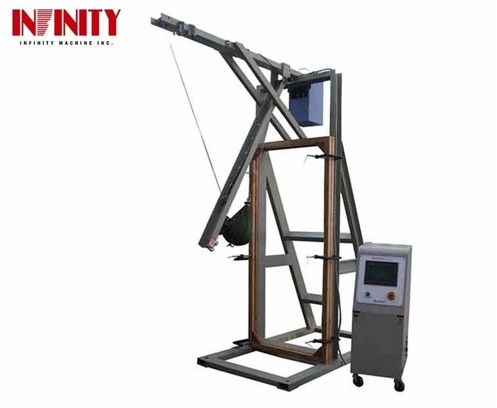

Safety Glass Impact Test Equipment Tempered Glass Pendulum Impact Testing Machine
Toughened Glass Impact Tester Machine
Model: B8120R
Application:
Shot Bag Impact Apparatus is built to meet GB9963,GB/T9963,ECE R43 and used to shot bag impact testing or pendulum test for testing glass.
Standard:
ANSI Z97.1,ISO/DIS12542 1~12543-6:1997,AS/NZS2208:1996,GB/T9962-1999
Specification:
| Model | B8120R |
| Impact way | Pendulum bob |
| Swing arm Radius | 1530mm |
| Impact height | 300~1200mm |
| Impact canister ’s weight | 45kg±0.1kg |
| The canister ball dia. | ∮2.5mm |
| Specimen size | H1930xW864mm |
| Inner size of Wooden Fixing frame |
H1911xW845mm The part which contact the specimen is the rubber with hardness Shore 50 degree |
| Dimension(WxDxH) | 1200x1800x2200mm |
| Weight | About 700kg |
| Power | 1∮ AC220V 3A or specified by user |
