| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE20-1800L |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Programmable Rapid Temperature Change Test Chamber | Model: | IE20-1800L |
|---|---|---|---|
| Application: | Suitable For Electrical, Electronic, Mechanical And Other Products, Parts, Materials And Other Products | Feature: | Energy Saving And Consumption Reduction;Easy To Operate;High Reliability |
| Temperature Range: | -70℃ ～ +150℃ | Heating Rate: | From -50℃ To +100℃，within 30min (Linear 5℃/min) |
| Temperature Decrease Rate: | From +100℃ To -50℃，within 35min (Linear 4℃/min) | Humidity Range: | 20%R.H～98%R.H |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Rapid Temperature Change Test Chamber,Programmable Temperature Change Test Chamber,Customizable Temperature Change Test Chamber |
||

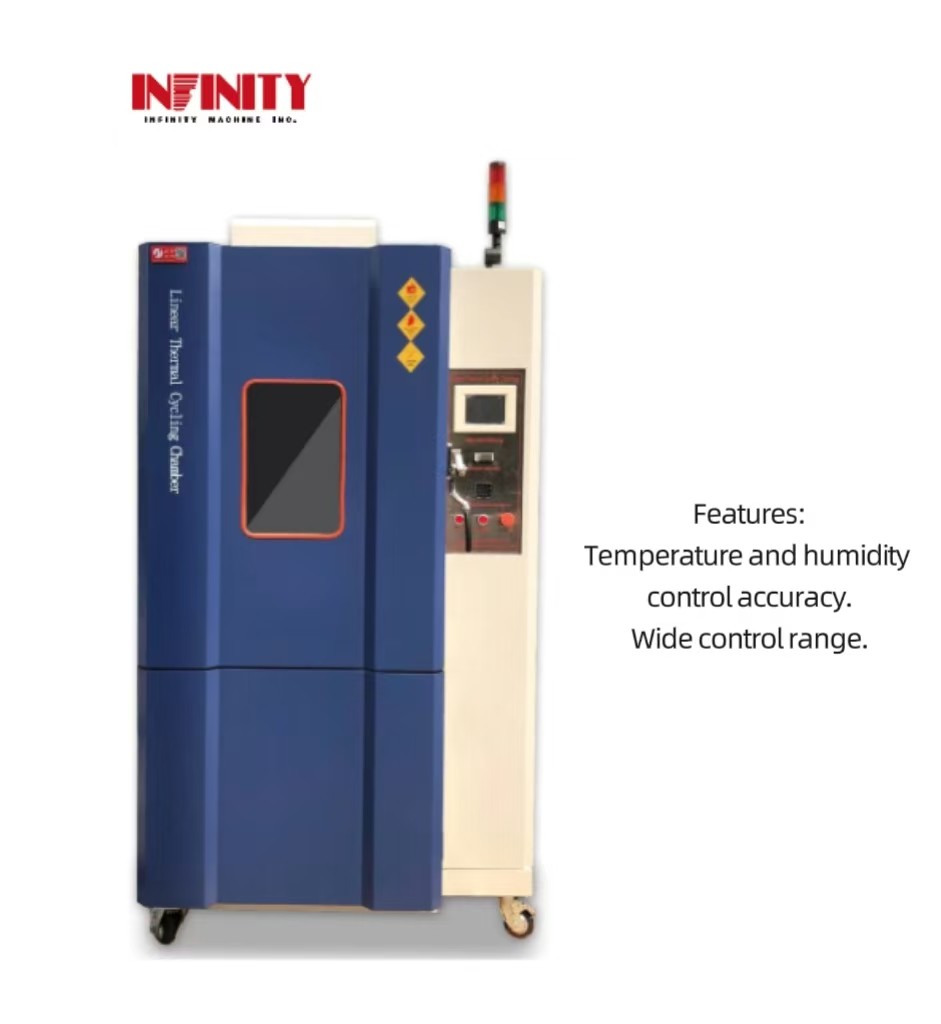

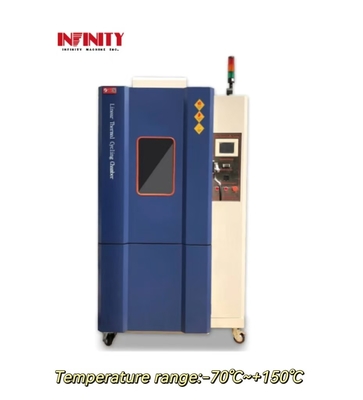

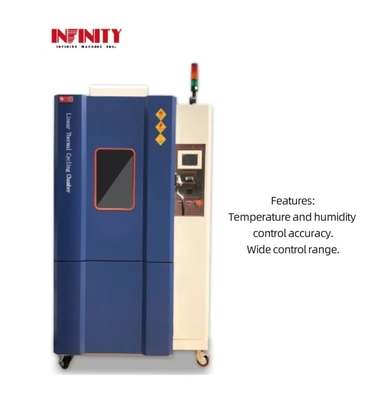

Eco-friendly Programmable Rapid Temperature Change Test Chamber Customizable Capacity
Model:IE20-1800L
Equipment Overview:
This series of constant temperature and humidity chambers is suitable for environmental simulation reliability testing of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range. The performance indicators meet the requirements of GB5170.2.3.5.6-95 "Basic Parameter Calibration Method for Environmental Testing Equipment of Electrical and Electronic Products - Low Temperature, High Temperature, Constant Damp Heat, and Alternating Damp Heat Testing Equipment".
Range of application:
Suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.
Applicable standards:
GB-2423.1-2008(IEC68-2-1) Test A: Low temperature test method.GB-2423.2-2008 (IEC68-2-2) Test B: High temperature test method.GJB360.8-2009(MIL-STD.202F)High temperature life test.GJBl50.3-2009(MIL-STD-810D)High temperature test method.GJBl50.4-2009(MIL-STD-810D)Low temperature test method.GB2423.3-2008 (IEC68-2-3) Test Ca: Constant Damp Heat Test Method.GB2423.4-2008 (IEC68-2-30) Test Db: Alternating Damp Heat Test Method.GJBl50.9-2009 (MIL-STD-810D) Wet Heat Test Method.
Features:
Specification parameter:
| Model |
IE20-1800L |
| Temperature range |
-70℃ ～ +150℃ |
| Temperature fluctuation |
±0.5℃ |
| Temperature uniformity |
≦2.0℃ |
| Heating rate |
From -50℃ to +100℃,within 30min (Linear 5℃/min) |
| Temperature decrease rate |
From +100℃ to -50℃,within 35min (Linear 4℃/min) |
| Humidity range |
20%R.H～98%R.H |
| Humidity deviation |
±2.5％RH |
| Humidity evenness |
±2.0％RH(no-load) |
| Humidity fluctuation |
±1.0％RH |
|
Inner box size WxHxD(mm) |
1200×1000×1500 |
|
Outside box size WxHxD(mm) |
2050×1950×2200 |
| Insulated box |
● Outer wall material: high-quality carbon steel plate, surface treated with electrostatic color spraying. The diameter of the hole on the left side of the box is 100mm ● Inner wall material: SUS304 # matte stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer+glass fiber. |
| Door | Single door, install door frame heating wire at the door frame to prevent condensation at the door frame in low temperature conditions. |
| Inspection window | Install a W 500 × H600mm observation window on the box door, and multi-layer hollow electric heating coated glass can effectively insulate and prevent condensation. |
| Lighting device |
One LED lighting device, installed on the window |
| Sample holder | Stainless steel sample rack with 2 layers, adjustable layer height, and a load-bearing capacity of 30kg per layer. |
| Refrigeration compressor |
France Tecumseh fully closed compressor |
| Refrigerant | Non fluorine environmentally friendly refrigerant R404A, compliant with environmental regulations, safe and non-toxic |
| Condenser system |
Water-cooled |
| Safety protection device | Heater anti-burning protection; Humidifier anti-burn protection; Heater over-current protection; Humidifier over-current protection; Circulating fan over-current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over-current protection; Over-voltage under-inverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
| Power supply |
AC380;V50Hz;30KW |
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Environmental Test Chamber will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
