| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | ID1200 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Directional Drop Testing Machine | Model: | ID1200 |
|---|---|---|---|
| Application: | This Equipment Is Suitable For Drop Testing Of Mobile Phones, Tablet Computers, And Various Small Consumer Electronic Products. | Feature: | Adopts Color LCD Touch Screen + PLC For Action Control And Setting. The Drop Height Can Be Set Directly. It Will Automatically Stop When Reaching The Set Height. The Number Of Drops Can Be Preset And Has A Power-off Memory Function. All Controls Are Comple |
| Standards: | JIS C 0044 ；IEC 60068-2-32 | Drop Height: | 300~2000mm（or Customized） |
| Maximum Weight Of Specimen Allowed: | 3kg | Maximum Sample Size Allowed: | Suitable For 17-inch Notebooks, Max. Length 40cm |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Touch Screen Display Drop Testing Machine,Directional Drop Testing Machine,Electronic Products Drop Testing Machine |
||

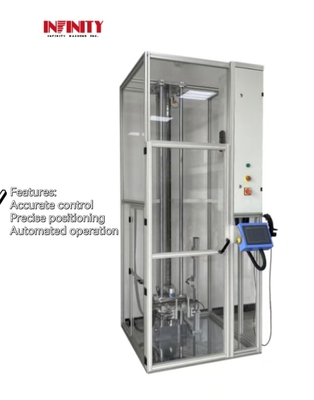

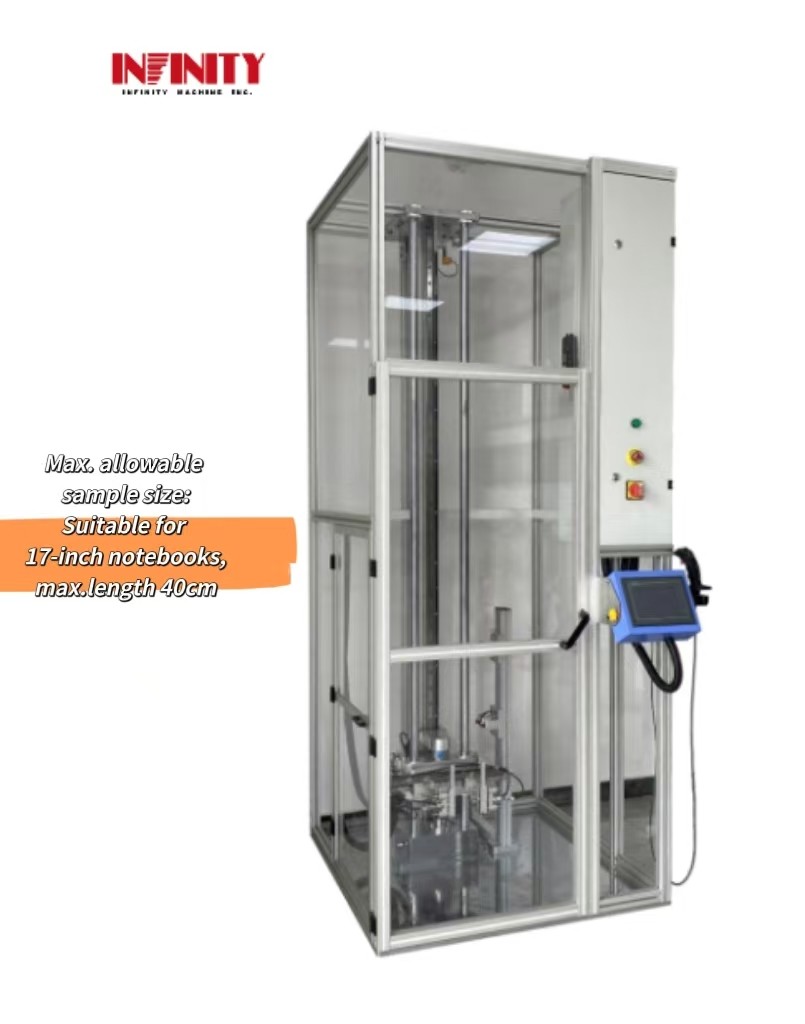

Touch Screen Display Directional Drop Testing Machine for Electronic Products
Model :ID1200
Application of equipment:
This equipment is suitable for drop testing of mobile phones, tablet computers, and various small consumer electronic products. It can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.
Features:
Specification parameter:
|
Projects |
Specifications |
|
Implementation standards |
JIS C 0044 ；IEC 60068-2-32 |
|
Drop height |
300~2000mm(Or customized) |
|
Maximum weight of specimen allowed |
3Kg |
|
Maximum sample size allowed |
Suitable for 17-inch notebooks, maximum length 40cm |
|
Drop medium |
Steel plate, 19mm wooden board, marble plate (or specified) |
|
Sample fixture method |
Clamping type |
|
Number of drops |
1~999999 (Can be set) |
|
Gas source |
≥0.5MPa |
|
Drop acceleration |
-5%(Above 0.95G) |
|
Machine size (WxDxH) |
W1200xD1200xH2200mm |
|
Machine weight |
Around 460kg |
|
Working power supply |
AC220V 5A 50Hz |
Clamp display:
Clamping method. 0 degree, 45 degree, 90 degree with automatic positioning fixture
Dimensions:(mm)
Support and Services:
The Drop Testing Machine product technical support and services include:
- Installation and setup guidance
- Calibration and maintenance services
- Troubleshooting and repair assistance
- Software updates and upgrades
- Training and education on machine operation and safety
- Consultation on testing standards and procedures
Packing and Shipping:
Product Packaging:
The Drop Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Drop Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
