| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF2441 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Servo Controlled Universal Tensile And Compressive Testing Machine | Application: | Suitable For Tensile, Compressive, Bending, Peeling, Shearing, Tearing, Bursting, Puncturing, Fatigue And Other Tests On Materials Such As Metal Wire, Metal Foil, Metal Sheet And Metal Tape, Rubber, Plastic, Sea/foam, Waterproof Materials, Wires And Cables |
|---|---|---|---|
| Product Model Number: | IF2441 | Force Capacity: | 1000Kg(10KN) |
| Unit Of Force Value: (switchable): | N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² | Force Value Resolution: | 1/500,000 |
| Force Accuracy: | ±0.5% | Motor: | AC Servo Motor |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Electronic Tensile Compression Strength Testing Machine,Universal Tensile Compression Strength Testing Machine,Muti Function tensile compression testing machine |
||

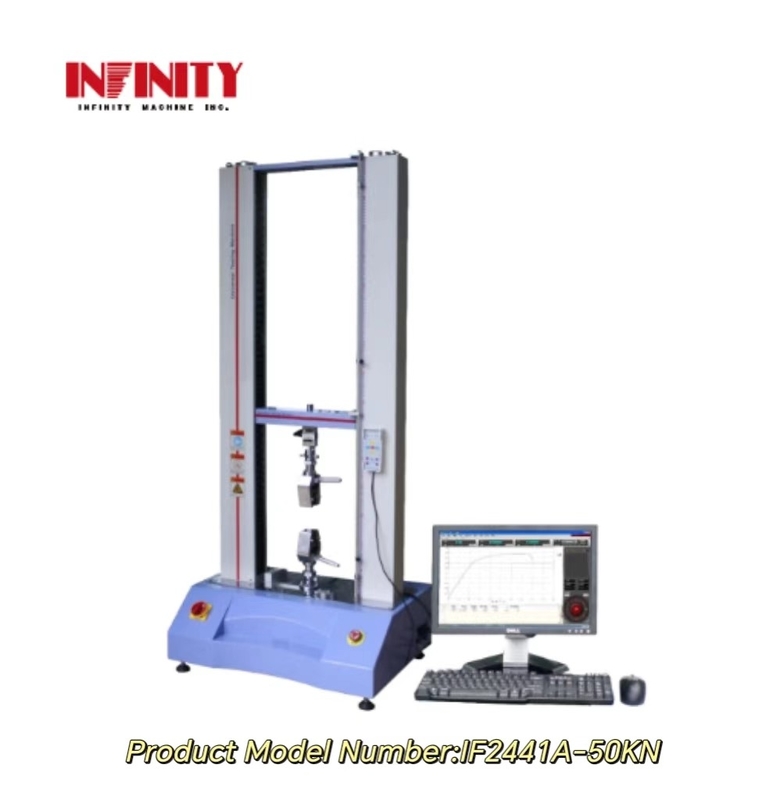

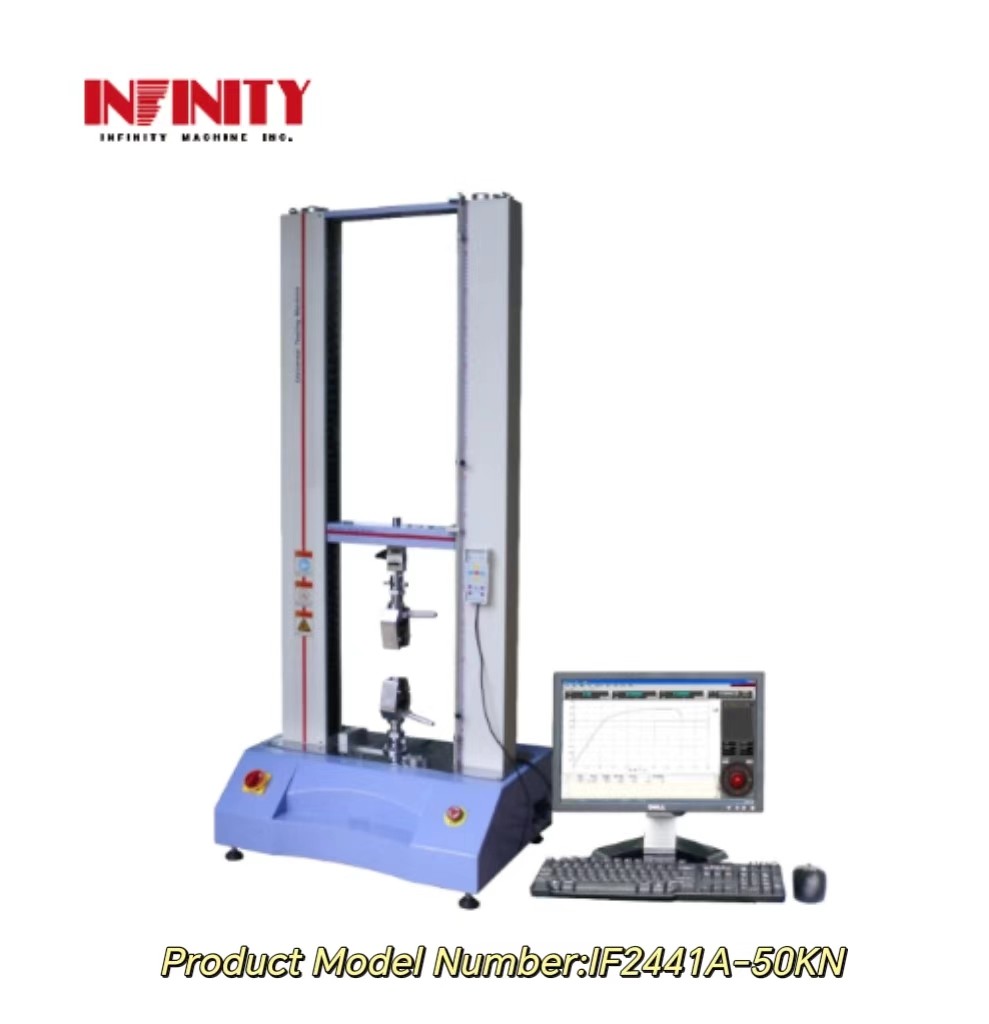

Muti-function Universal Electronic Tensile Compression Strength Testing Machine
Model :IF2441
Application:
Suitable for tensile, compressive, bending, peeling, shearing, tearing, bursting, puncturing, fatigue and other tests on materials such as metal wire, metal foil, metal sheet and metal tape, rubber, plastic, sea/foam, waterproof materials, wires and cables, textiles, mesh ropes, non-woven fabrics, etc.
Standards:
This testing machine is manufactured in accordance with the standards of "Electronic Universal Testing Machine" GB/T 16491-2008, "General Technical Requirements for Testing Machines" GB2611-2007, "Testing of Force Measurement System of Tensile and Compressive Testing Machines", "Technical Conditions for Streptometers" JB6146-2007, and "General Specification for License Assessment of Manufacturing Measuring Instruments" JJF1246-2010.
Features:

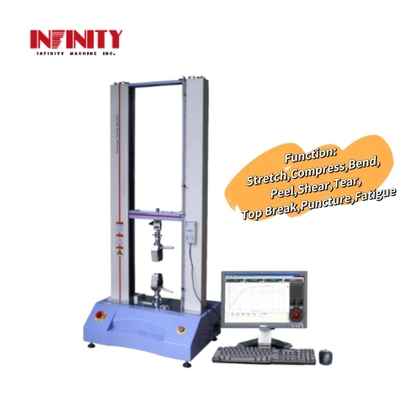

1.Multifunctional:
With different fixtures, stretching, compression, bending, shear, tear, stripping and other tests.
2.High-accuracy:
Japanese Panasonic AC servo motor drive, high precision gap-free ball screw drive, with high precision TRANSCELL explosion-proof LOADCELL, force value accuracy up to ± 0.5%; displacement accuracy up to 0.01mm.
3.High intelligence:
The functions of automatic discrimination break, automatic return, and curve combination, such as load-to-time displacement, displacement-time stress-strain, strain-time, stress-time and other curve analysis.
4.High application:
9 languages can be switched: Simple / Traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, global general use.
Specification parameter:
| Model | IF2441 |
| Force value capacity |
1000Kg(10KN) |
| Force value unit(switchable) | N, KN, gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² |
| Force value decomposition degree | 1/500,000 |
| Force value accuracy | ±0.5% |
|
Test trip |
600mm |
| Test space effective width | 400mm |
| Test speed | 0.01~500mm/min |
| Speed accuracy | ±0.5% |
| Displacement resolution | 0.01mm |
| Motor |
AC servo motor |
| Drive link | High-precision ball-rolling screw |
| Equipment Size (WxDxH) | 830x670x1940mm |
| Weight of equipment | 350 Kg |
| Working power supply | AC220V 50/60Hz or specified by user |
Testing software:
Professional test report:
The report developed based on Crystal Reports10.0 can automatically calculate the strength, elastic modulus E, RP0.2, ReL, ReH, elongation, etc. The title and content of the report can be freely changed, and the curve is automatically generated. It can be exported in Excel, PDF and other formats.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Universal Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Universal Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
