| Product Name: | Tumble Drop Test Machine | Model: | IB1151 |
|---|---|---|---|
| Application: | This Equipment Is Suitable For Rotational Drop Testing Of Mobile Phones, Smart Tablets, And Various Small Portable Electronic Products. | Feature: | Designed With Dual Stations To Meet Simultaneous Testing Of 500 And 1000mm Drop Heights. |
| Implementation Standards: | IEC 60068-2-32；GB/T 2423.8-1995 | Drop Height: | 500（1set）1000mm（1set） |
| Maximum Weight Of Test Piece: | 5KG | Drop Frequency: | 1~40 Times / Min (customized) |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Notebook Drop Resistance Test Machine,High Stability Tumble Drop Test Machine,Dual Station Tumble Drop Test Machine |
||

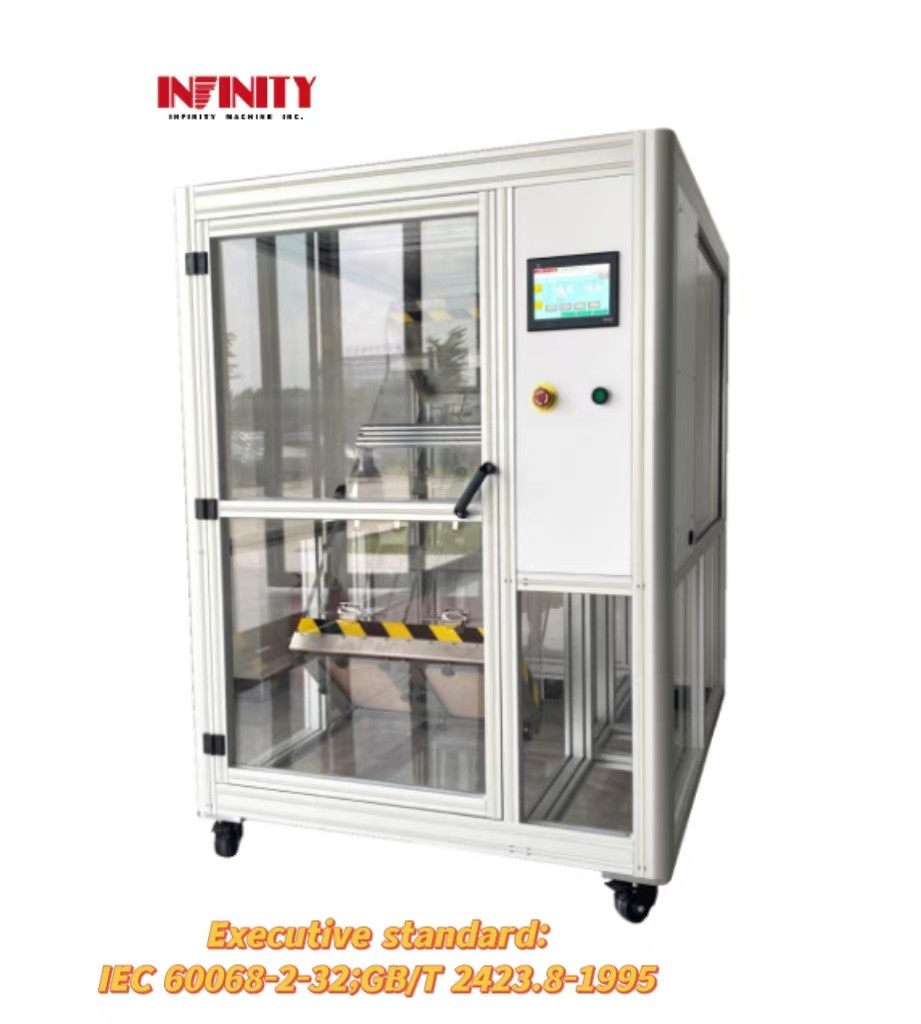

High Stability Notebook Drop Resistance Test Dual Station Tumble Drop Test Machine
Model:IB1151
Equipment use:
This equipment is suitable for rotational drop testing of mobile phones, smart tablets, and various small portable electronic products to evaluate the product's ability to withstand rotational drops after multiple drops.
Features:
Specifications:
| Projects | Specifications |
| Implementation standards | IEC 60068-2-32；GB/T 2423.8-1995 |
| Drop height |
500(1set) 1000mm(1set) |
| Max. weight of test sample | 5KG |
| Drop frequency |
1~40 times/min (settable) |
| Roller width | 300mm |
| Barrel material | Transparent acrylic |
|
Falling plank material |
3mm thickness steel plate+19mm thickness solid wood board(or specify) |
| Number of drops | 1~9999999 (settable) |
| Machine size (WxDxH) |
W1445xD1560xH1650mm |
| Machine weight |
378KG |
| Working power supply | AC220V 5A 50Hz |
| Equipment power | 750Ｗ |
Dimensions:(mm)
Recommended products:
1.Repeated Slight drop Test Machine:This machine is suitable for repeated micro drop testing of electronic products such as mobile phones, tablets, laptops, e-books, etc. Intended to simulate the testing of products that are lightly dropped onto surfaces such as desktops, metal surfaces, marble slabs, etc. during use, in order to evaluate the impact of slight drops on the overall product performance, the durability of the shell, and the resistance of the internal structure of the product to light drops.
2.Carton Drop Test Machine:Suitable for testing the packing situation after free dropping and to evaluate the anti-impact strength in the process of shipping.
3.Directional Drop Test Machine:Suitable for drop testing of mobile phones, tablets, and various small consumer electronic products, it can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Drop Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Drop Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
