| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE2 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Features: | Durable Use;High Reliability | Product Name: | Precision High Temperature Aging Test Chamber |
|---|---|---|---|
| Model: | IE2 Series | Application: | Suitable For High Temperature Aging Reliability Test Of Industrial Products. |
| Standards：: | GB-2423.2-89(IEC68-2-2);GBJ150.3(MIL-STD-810D);GJB360.8-87(MIL-STD-202F) | Capacity: | 100L,150L,225L,408L,800L |
| Temperature Range: | RT+10℃～+250℃ | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | IE2 Series Aging Test Chamber,Industrial Products Aging Test Chamber,Precision High Temperature Aging Test Chamber |
||

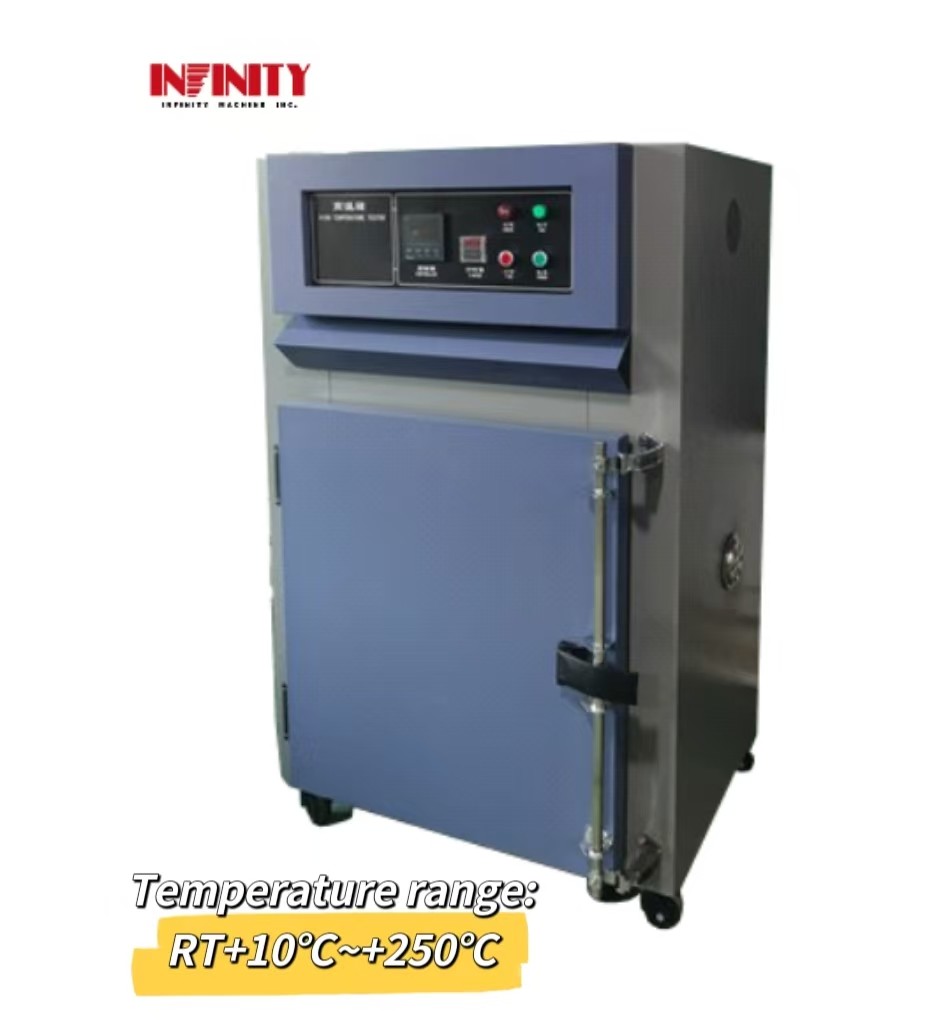

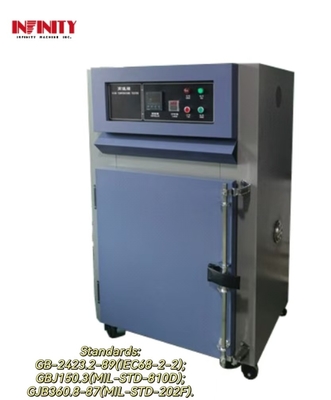

IE2 Series Precision High Temperature Aging Test Chamber for Industrial Products
This series of high temperature chamber is suitable for high temperature aging reliability test of industrial products.
Standards:
GB-2423.2-89(IEC68-2-2);GBJ150.3(MIL-STD-810D);GJB360.8-87(MIL-STD-202F)
Features:
Specification parameters:
| Model |
IE2100L |
IE2150L |
IE2225L |
IE2408L |
IE2800L |
|||||
| Temperature range |
RT+10℃～+250℃ |
|||||||||
| Temperature fluctuation |
±1℃ |
|||||||||
| Temperature uniformity |
≦2.0℃ |
|||||||||
| Heating rate |
About 5 ℃/min (when unloaded, ambient temperature+25 ℃) |
|||||||||
| Time setting range |
0~9999 hours, minutes, seconds |
|||||||||
| Inner box size: WxDxH (mm) |
500x400x500 |
500x500x600 |
600×500×750 | 800×650×800 | 1000×1000×800 | |||||
| Outer box size: WxDxH (mm) |
780×650×1200 |
900×850×1300 |
900×850 ×1450 | 1200×950 ×1600 | 1450×1480 ×1700 | |||||
| Box |
● Inner wall material: matte stainless steel plate ● Insulation material: High quality cold steel plate (spray coated 1.2mm thick) |
|||||||||
| Sample holder | The work compartment is divided into 2 layers of pallets, which are sturdy and not easily dislodged, and can be freely disassembled and assembled in a rack style; The tray is made of SUS304 # grid style stainless steel, which is sturdy and easy to clean | |||||||||
| Safety protection devices | Motor overload protector; Air burning prevention protector; Over-temperature protector; Power supply under phase, reverse phase protector; Buzzer alarm. | |||||||||
| Power supply | AC220V;50Hz;3.5KW | AC380;V50Hz;4KW | AC380;V50Hz;4KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | |||||
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Environmental Test Chamber will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
