| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE10A1-M |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Programmable Constant Temperature And Humidity Test Chamber | Model: | IE10A1-M |
|---|---|---|---|
| Temperature Range: | 0℃ ～ +100℃ | Heating Rate: | From 0℃ Rise To +100℃ Within 40min (No Load, Ambient Temperature +25℃) |
| Cooling Rate: | From +20℃ Down To 0℃ Within 40min (No Load, Ambient Temperature +25℃) | Humidity Control Range: | 20%R.H～98%R.H |
| Inner Box Size: WxHxD(mm): | 1300*1300*2600mm | Outer Box Size: WxHxD(mm): | 2100*1750*2850mm |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Temperature Control Environmental Test Chamber,Components Environmental Test Chamber,Humidity Control Environmental Test Chamber |
||
Temperature and Humidity Control Accuracy Environmental Test Chamber for Components

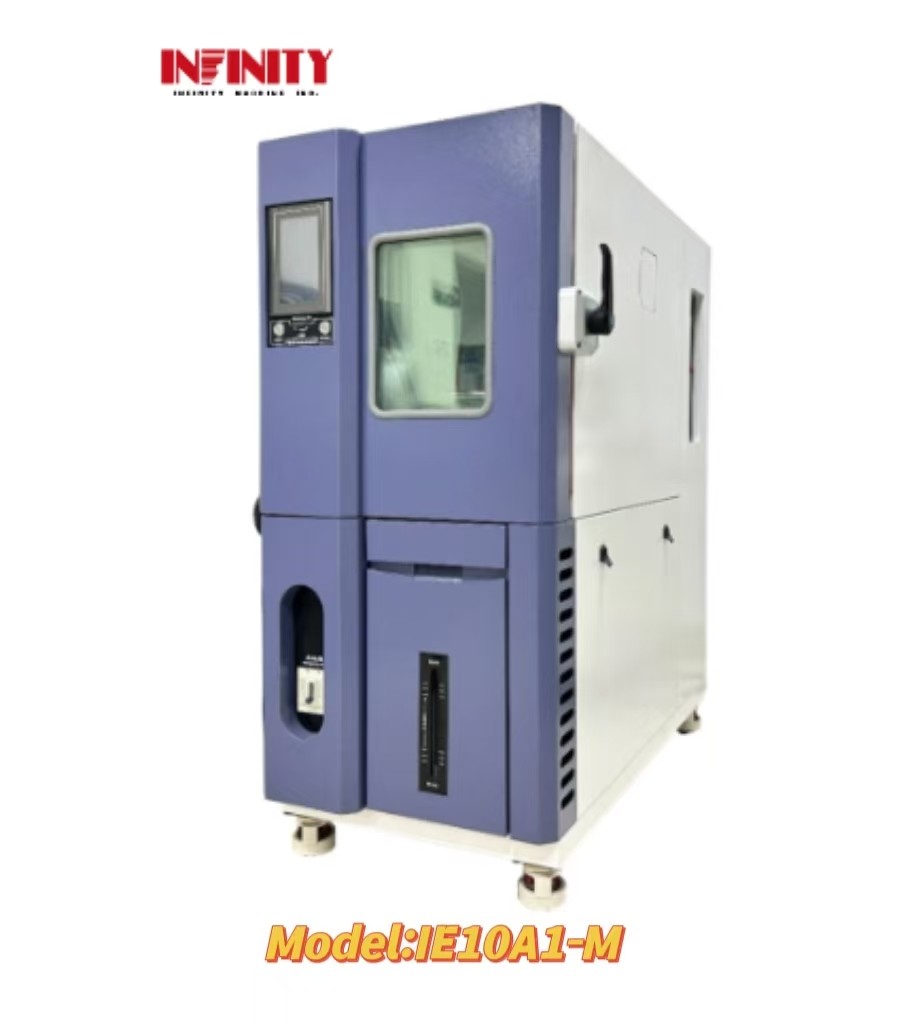

Model:IE10A1-M
Equipment Overview:
This series of constant temperature and humidity chambers is suitable for environmental simulation reliability testing of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range. The performance indicators meet the requirements of GB5170.2.3.5.6-95 "Basic Parameter Calibration Method for Environmental Testing Equipment of Electrical and Electronic Products - Low Temperature, High Temperature, Constant Damp Heat, and Alternating Damp Heat Testing Equipment".
Scope of application:
Suitable for conducting high and low temperature, humidity and heat tests on electrical, electronic, mechanical and other products, components, materials, etc., simulating temperature and humidity changes to conduct quality and reliability tests on products, components, materials, etc.
Applicable standards:
Features:
Specification parameters:
| Model |
IE10A1-M |
| Temperature range |
0℃ ～ +100℃ |
| Temperature fluctuation |
±0.5℃ |
| Temperature uniformity |
≦2.0℃ |
| Heating rate |
From 0℃ rise to +100℃ within 40min (No load, ambient temperature +25℃) |
| Cooling rate |
From +20℃ down to 0℃ within 40min (No load, ambient temperature +25℃) |
| Humidity control range |
20%R.H～98%R.H |
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
| Humidity uniformity |
±3.0％RH(no-load) |
| Humidity fluctuation |
±1.0％RH |
|
Inner box size: WxHxD(mm) |
1300*1300*2600mm |
|
Outer box size: WxHxD(mm) |
2100*1750*2850mm |
| Insulated box |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole. ● Inner wall material: SUS304 # matte stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer+glass fiber. |
| Box door | Single door, install door frame heating wire at the door frame to prevent condensation at the door frame in low temperature conditions. |
| Observation window | Install a W 300 × H 400mm observation window on the box door, and multi-layer hollow electric heating coated glass can effectively insulate and prevent condensation. |
| Lighting device |
One LED lighting device, installed on the window. |
| Sample holder |
Excluding sample holder, can be customized if necessary. |
| Refrigeration compressor |
French Tecumseh fully closed compressor |
| Refrigerant | Non fluorine environmentally friendly refrigerant R404A, compliant with environmental regulations, safe and non-toxic |
| Condenser method |
Air-cooled |
| Safety protection device |
Heater anti air burn protection; Humidifier anti burn protection; Heater over-current protection; Humidifier over-current protection; Circulating fan over-current overload protection; Compressor high pressure protection Compressor overheat protection; Compressor over-current protection; Over-voltage and under reverse phase protection; Line circuit breaker; Leakage protection; Humidifier low water level protection; Low water level warning in the water tank. |
| Power supply |
AC380; V50Hz; 13KW |

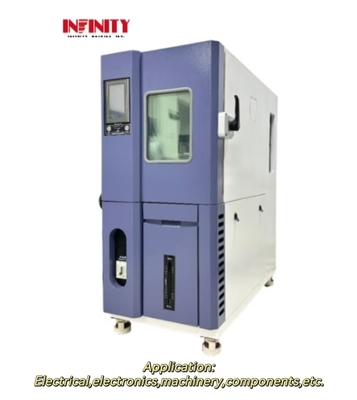

Equipment picture:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Emvironmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Emvironmental Test Chamber will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
