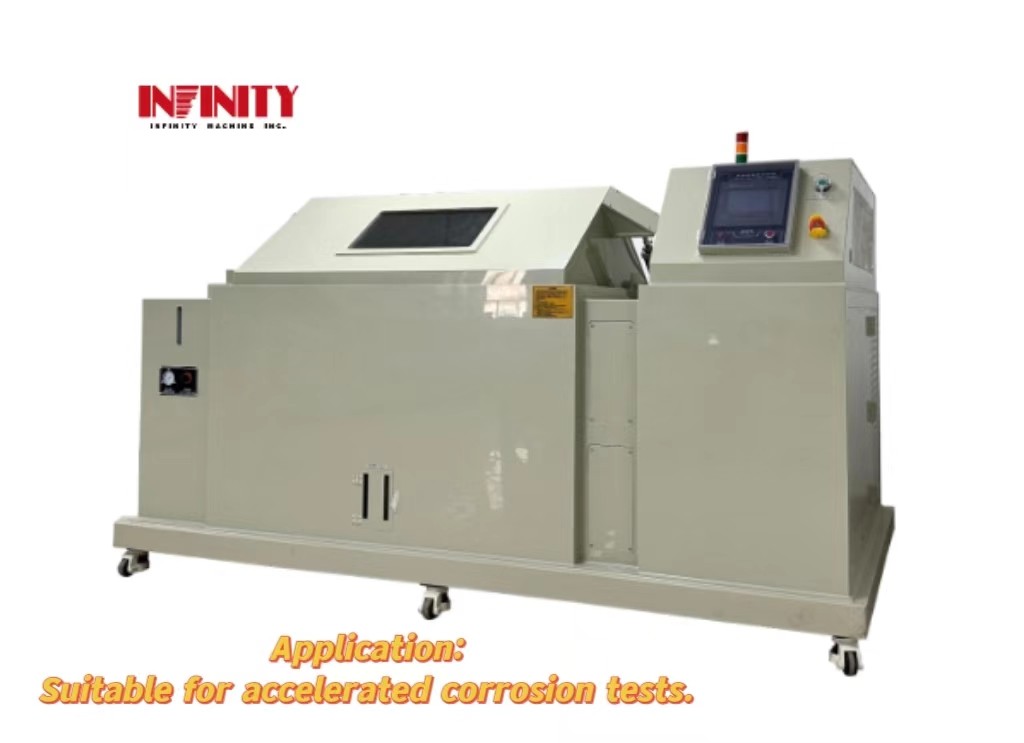

Energy Saving Environmental Test Chamber for Metal Dry and Wet Salt Spray Test

Model:IE41 Series

Equipment overview:

This equipment is designed to simulate and increase the environmental effects on metal materials exposed to outdoor atmospheres that contain salt contamination and can accelerate corrosion. The equipment includes test methods for cyclic exposure of specimens to salt spray, dryness, and hot and humid environments. This equipment test is a comparative test, and the test results cannot predict the long-term results of the corrosion resistance of the same metal material used under this environmental condition. However, this method can still provide valuable information on the performance of materials exposed to salt contamination similar to the test conditions. Compared with traditional accelerated corrosion tests, such as neutral salt spray test (NSS), acetic acid salt spray test (AASS), and copper accelerated acetic acid salt spray test (CASS), the biggest advantage of this equipment test is that it can perform better Reproduce corrosion that occurs in outdoor salt-contaminated environments.

It is also suitable for accelerated corrosion tests, such as metals and their alloys, metal coatings (anodic and cathodic), conversion coatings, anodized coatings, organic coatings on metal materials, etc.

Applicable standards:

•    GB/T20854-2007/ISO14993-2001 Dry and wet salt spray test
• GB-T5170.8-2008_ Inspection methods for environmental test equipment for electrical and electronic products___Salt spray test equipment
• GJB150.11A-2009 Military Equipment Laboratory Environmental Test Methods Salt Spray Test
• GBT2424.17-2008 Salt spray test method
• GB-T2423.18-2000 Sodium chloride alternating salt spray test method
• GB-T2423.3-2006(IEC6008-2-78-2001) Test cab: constant damp heat test method
• GBT2423_4-2008 Humidity and heat alternating test method
• IEC60068-2-52-2017 Environmental testing Part 2-25 Test Test Kb circulating salt spray (sodium chloride solution)
• IEC 60068-2-11-1982 Electrical technology. Basic environmental test procedures. Part 2: Test. Section 11: Test Ka: Salt spray

Features:

• Special designs can be made according to customer needs.
• PT100 temperature sensor, high accuracy and low maintenance.
• Water can be added manually or automatically according to the customer's installation location, which is easy to use.
• The temperature control room and the laboratory are independent and connected through a damper control. They have a complete structure and are easier to maintain.
• Energy-saving design, individually controlled according to different tests.
• It can conduct salt spray neutrality test, corrosion resistance test, drying test, humidity test, and standing test separately. It can also perform salt spray, dry and wet, and standing mixed tests with automatic control.
• Can automatically cycle spray, continuous spray, timed spray.
• It can realize automatic cycle tests of salt spray, damp heat and drying without moving the product, which is easy to use.

Specifications:
