| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | ID6500 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Packaging Incline Impact Testing Machine | Application: | Suitable For Testing The Reliability Of Packaging. |
|---|---|---|---|
| Standard: | ISO 10531:1992 | Model: | ID6500 |
| Maximum Weight Of Test Piece: | 2000kg | Maximum Allowable Specimen Size: | 1600x1600x1600（ L×W×H ） |
| Maximum Sliding Length Of The Specimen: | 7500mm | Impact Speed Range: | 1.305 ～ 5m/s |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Packaging Incline Impact Testing Machine,Easy Operation Impact Testing Machine,2000kg Impact Testing Machine |
||

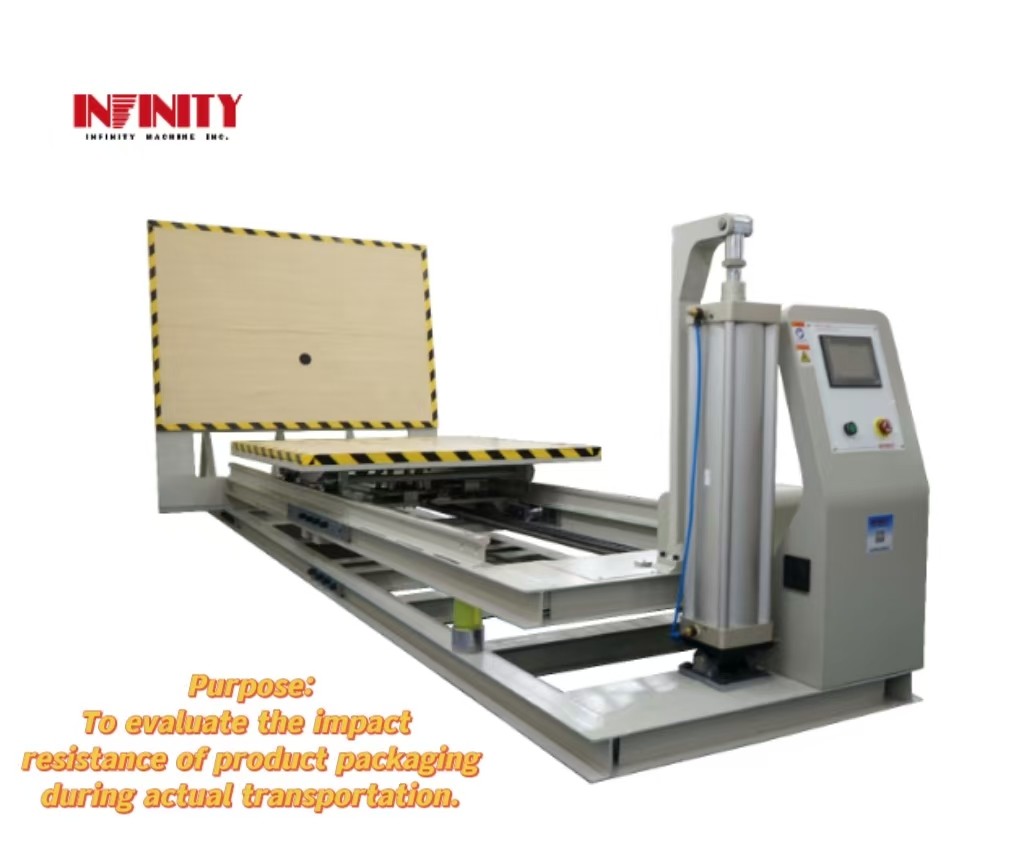

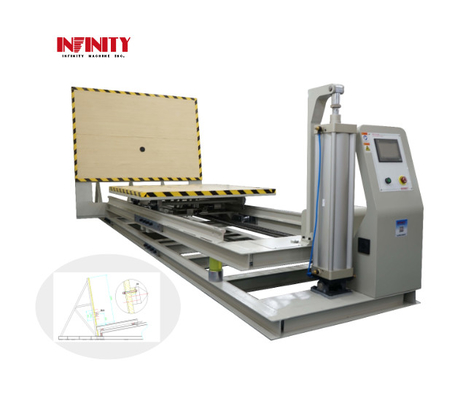

Max. Load 2000kg Easy Operation Packaging Incline Impact Testing Machine
Model:ID6500
Application of equipment:
It is suitable for product packaging boxes to simulate the slope impact test caused by the package tilting and sliding during transportation or dock handling to test the reliability of the packaging.
Testing standards:
Features:
Specification parameters:
|
Projects |
Specifications |
| Max. weight of test piece |
2000kg |
| Max. allowable specimen size |
1600x1600x1600( L×W×H ) |
| Angle between impact surface and track plane |
90±1° |
| Max. sliding length of the specimen |
7500mm |
| Impact speed range |
1.305 ～ 5m/s |
| Impact velocity error |
≤±5% |
| Impact plate size |
W1600×H1600 mm |
| Impact board description: |
1.The surface of the impact baffle should be flat, and its size should be larger than the size of the impacted part of the test sample. 2.The impact surface must have sufficient hardness. 3.When subjected to a load of 200kg on its surface, the deformation shall not exceed 2mm. 4．Install dampers on the baffle structure frame to prevent secondary impact. |
| Equipment size |
Length 11000 x Width 1600 x Height 1950mm |
| Device power supply |
AC220V 50HZ(or specify) |
Device control interface:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Impact Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Impact Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
Related products recommendation:
1.IZOD Digital Impact Testing Machine (Model # ID6002): used to measure the impact resistance of various tough material specimens under specific angles and loads.
2.Packaging Inclined Impact Testing Machine (# Model ID6001): Suitable for product packaging boxes, simulating the slope impact test caused by packaging tilting and sliding during transportation or dock handling to test the reliability of packaging.
3.Three-axis Automatic Falling Ball Impact Testing Machine (# ID6150):Suitable for the impact test of mobile phones, tablets, audio and other electronic products.
