| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE61 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | UV Climatic Chamber | Application: | It Is Widely Used To Evaluate The Weather Resistance Of The Material. |
|---|---|---|---|
| Applicable Standard: | ISO 4892-3、ISO 11507 | Feature: | Provides The Best Sunlight UV Simulation, Low Maintenance And Easy To Use. |
| Model: | IE61 Series | Temperature Range: | RT+20℃~70℃ |
| Humidity Range: | ≥90%RH | Box Structure: | Indoor And Outdoor Boxes: SUS304# Stainless Steel Is Used In The Indoor And Outdoor Boxes |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | Electronic Product UV Weathering Test Chamber,Electronic Product Weathering Test Chamber,Climatic Environment UV Weathering Test Chamber |
||

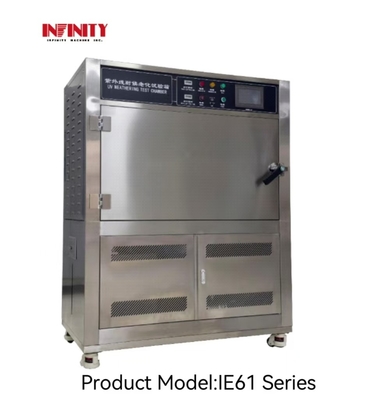

UV Weathering Test Chamber Climatic Environment Simulator for Electronic Product
Model: IE61 series
Equipment Overview:
This series uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.
Applicable standards:

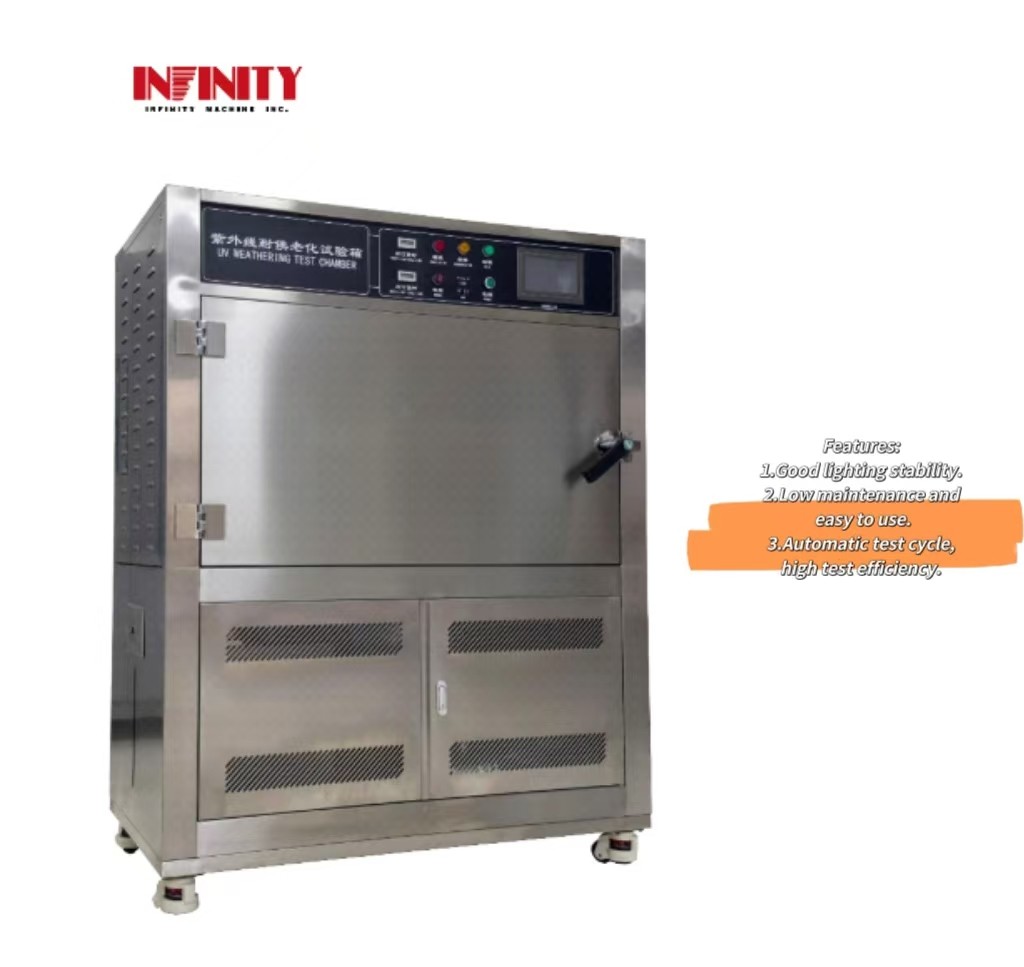

Features:
Using the original Q-LAB lamp, the light stability is good, and the test results are high reproducibility.Provides the best sunlight UV simulation, low maintenance and easy to use.Automatic operation of equipment control, automatic test cycle, saving labor, improve test efficiency.Specification parameter:
| Model number |
IE61304 |
IE61313 |
| Temperature range |
RT+20℃~70℃ |
|
| Humidity range |
≥90%RH |
|
| Temperature fluctuation |
±0.5℃ |
|
| Temperature uniformity |
≦1.0℃ |
|
| Center distance inside the lamp |
70mm |
|
| The distance between Sample and the center of the lamp |
50±3mm |
|
| Modulator tube /lamp | UVA-340 L=1200/40W,8 pcs | UVB-313 L=1200/40W,8 pcs |
| Irradiance | Adjustable within 1.2W/㎡ | Adjustable within 1.0W/㎡ |
| Ultraviolet wavelength |
315-400nm |
280-315nm |
| Effective irradiation region |
900×210mm |
|
| Irradiated blackboard temperature |
50℃~70℃ |
|
| Inner box size:WxHxD(mm) |
1180*650*600 |
|
| Outer box size:WxDxH(mm) |
1300*620*1630 |
|
| Box structure | Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes | |
|
Sample holder |
Aluminum frame type base frame vision plate, 24 pcs |
|
| Standard sample size |
75×290mm(Special specifications need to be explained) |
|
| Safety protection device | Leakage circuit breaker control circuit, overload, short circuit alarm, over-temperature alarm, water shortage protection | |
| Power supply |
AC220V;50Hz;5KW |
|
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Environmental Test Cahmber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Environmental Test Cahmber will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
