| Product Name: | Servo Control Universal Tensile Testing Machine | Model: | IF2A1-300KN |
|---|---|---|---|
| Capacity: | 300KN | Load Resolution: | 1/500,000 |
| Effective Width: | 400mm | Test Speed: | 0.001~300mm/min |
| Warranty: | 1 Year | Power: | Electronic |
| Highlight: | Computer Control Universal Tensile Testing Machine,Metal Material Universal Tensile Testing Machine,Metal Material Cyclic Holding Test |
||

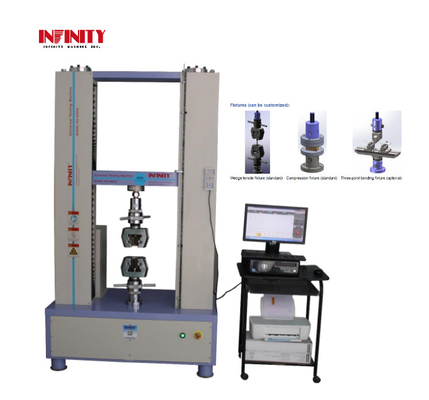

Metal Material Cyclic Holding Test Computer Control Universal Tensile Testing Machine
Model:IF2A1-300KN
Purpose:
This machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.

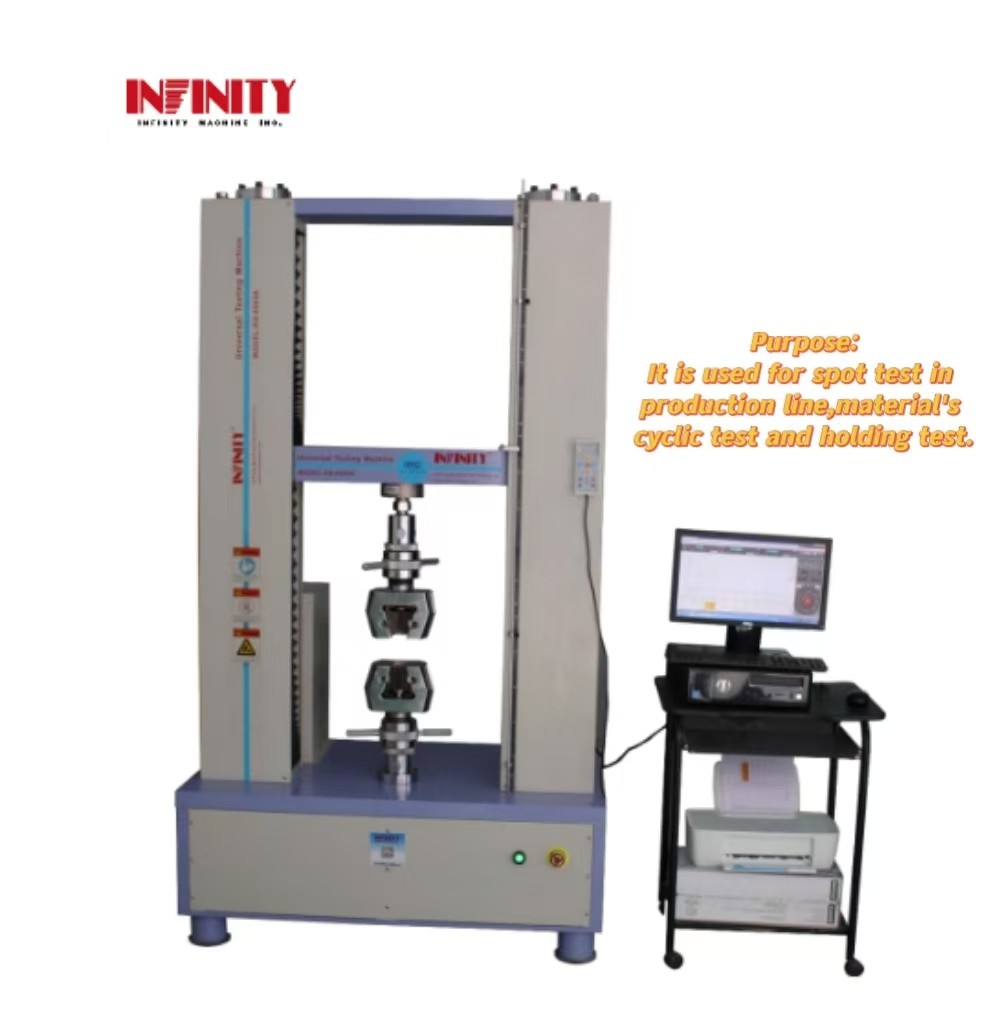

Computer control style IF2A1-300KN ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).
Applications:
Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.
Fixtures (can be customized):
Specification:
|
Model |
IF2A1-300KN |
|
Capacity |
300KN |
|
Unit (switchable) |
N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2 |
|
Load resolution |
1/500,000 |
|
Load accuracy |
±0.25% |
|
Load range |
Rangless |
|
Stroke (exclude the grips) |
650mm |
|
Effective width |
400mm |
|
Test speed |
0.001~300mm/min |
|
Speed accuracy |
±0.5% |
|
Displacement resolution |
0.001mm |
|
Allow sample size (plate) |
0~15mm |
|
Allow sample size (bar) |
10~32mm |
|
Software |
Closed-loop control software |
|
Motor |
AC servo Motor |
|
Transmission rod |
High accuracy ball screw |
|
Main unit dimension (WxDxH) |
1220x720x2200mm |
|
Main unit weight |
1500 Kg |
|
Power Supply |
380V AC, 50 HZ, 3 PHASE |
Features:
High accuracy:
Adopt AC servo motor to driving the high precise ball screw working, with high precise explosion-proof load cell. Strength accuracy reached to ±0.25% & displacement accuracy reach to 0.001mm.
High performance:
Automatic broken identification, automatically return, point collected by hand, units switching and 9 kinds of languages can be selected: Chinese, English, Japanese, Germany, French, Russian, Spanish and Portuguese.
Superior software program:
Can achieve the closed loop control in force value, speed & displacement, so can satisfy the fatigue test of rubber and durable test of other material in the condition of low cycle. Can record and memorize the whole testing data. And also had many kinds of analysis curve: stress vs strain curve, strength vs deformation curve, strength vs displacement curve, strength vs time curve, time vs deformation curve.
Multi-function:
Can coordinate with different grips, the tests of tensile, compression, bending, shearing, tearing, peeling, etc can be done.
Configuration:
Software control:
High analysis & precision, easy operating, apply for testing of tensile, compression, pushing, bending, cutting, shearing, tearing on all material
1. Tensile Test graph.
2. Compression test graph.
3. Peeling test graph.
4.Shearing test graph.
5. Holding force test graph (fatigue test)
Testing Report:
Testing report can be output as PDF file or printed.There are Chinese version and English version.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Packing and Shipping:
Product Packaging:
The Universal Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
Shipping:
The shipping of the Universal Testing Machine will be handled by a reliable and experienced shipping company. The transportation will be arranged to ensure timely delivery and safe handling of the product. The customer will be provided with the tracking information to monitor the shipment status.
