| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE60 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | UV Climatic Chamber | Model: | IE60 Series |
|---|---|---|---|
| Temperature Range: | RT+20℃~70℃ | Humidity Range: | ≥90%RH |
| Applicable Standard: | ISO 4892-3、ISO 11507;ASTM D4329、D499、D4587、D5208、G154、G53； | Feature: | Automatic Operation Of Equipment Control, Automatic Test Cycle, Saving Labor, Improve Test Efficiency. |
| Box Structure: | Indoor And Outdoor Boxes: SUS304# Stainless Steel Is Used In The Indoor And Outdoor Boxes | Sample Holder: | Aluminum Frame Type Base Frame Vision Plate, 24pcs |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | High Efficiency Weathering Aging Test Chamber,UV Accelerated Weathering Aging Test Chamber,Automatic Weathering Aging Test Chamber |
||

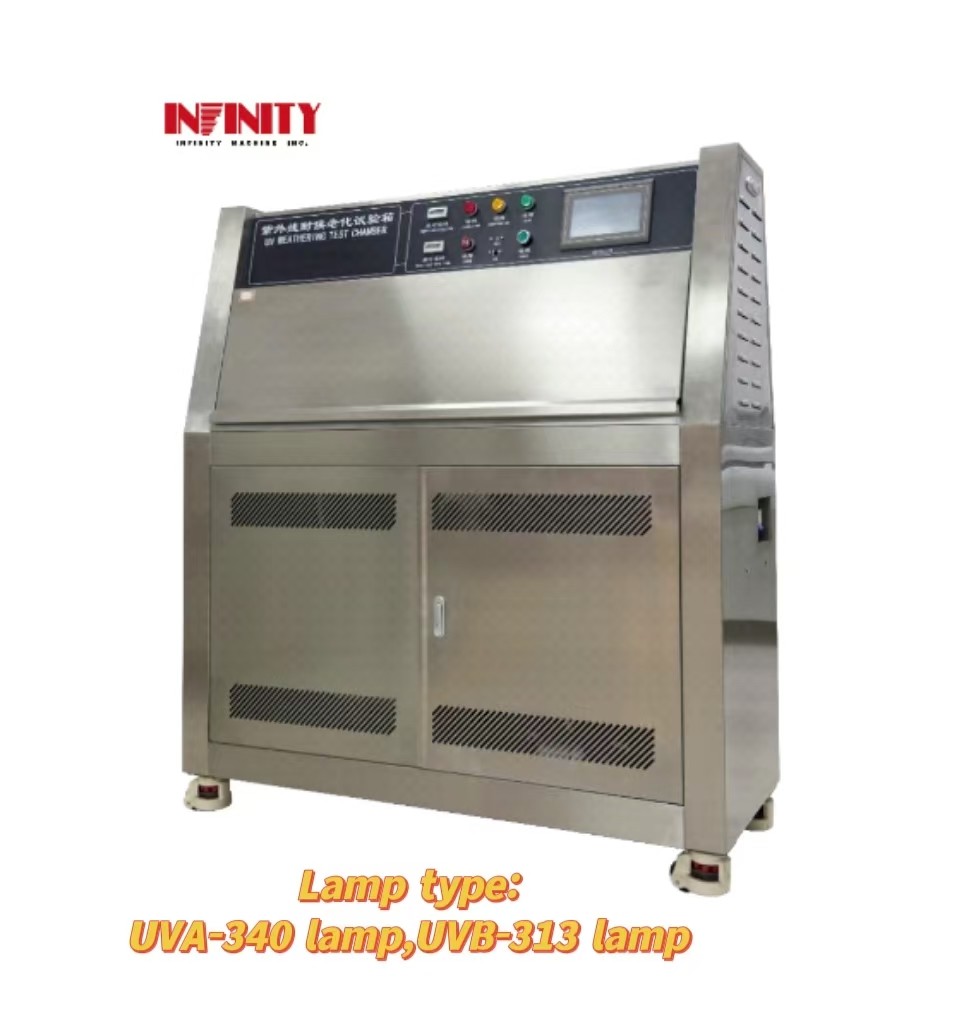

High Efficiency Automatic Operation UV Accelerated Weathering Aging Test Chamber
Model: IE60 series
Equipment Overview:
This series uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.
Applicable standards:
Features:
Specification parameter:
|
Model |
IE60304 |
IE60313 |
| Temperature range |
RT+20℃~70℃ |
|
| Humidity range |
≥90%RH |
|
| Temperature fluctuation |
±0.5℃ |
|
| Temperature uniformity |
≦1.0℃ |
|
| Center distance inside the lamp |
70mm |
|
| The distance between the specimen and the center of the lamp |
50±3mm |
|
| Modulator tube | UVA-340 L=1200/40W,8pcs | UVB-313 L=1200/40W,8pcs |
| Irradiance | Adjustable within 1.2W/m² | Adjustable within 1.0W/m² |
| Ultraviolet wavelength |
315-400nm |
280-315nm |
| Effective irradiation region |
900×210mm |
|
| Irradiated blackboard temperature |
50℃~70℃ |
|
| Internal dimension:WxHxD(mm) |
1140*400*390 |
|
| Outside box size:WxDxH(mm) |
1300*500*1360 |
|
| Box structure | Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes | |
| Sample holder | Aluminum frame type base frame vision plate, 24pcs | |
| Standard sample size | 75×290mm (Special specifications need to be explained) | |
| Safety protection device | Leakage circuit breaker control circuit, overload, short circuit alarm, over temperature alarm, water shortage protection | |
| Power supply |
AC220V;50Hz;5KW |
|
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
