| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IF2441A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Features: | Multi-function;High Precision;High Intelligence;High Applicability | Product Name: | Servo Controlled Universal Tensile And Compressive Testing Machine |
|---|---|---|---|
| Product Model Number: | IF2441A | Test: | Tensile, Compression, Bending, Stripping, Shearing, Tearing, Bursting, Puncture, Fatigue |
| Force Capacity: | 5000kg(50KN) | Unit Of Force Value: (switchable): | N, KN, Gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² |
| Force Value Resolution: | 1/500,000 | Force Accuracy: | ±0.5% |
| Motor: | AC Servo Motor | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | Compressive Strength Tensile Testing Equipment,Double Column Tensile Testing Equipment,AC Servo Tensile Testing Equipment |
||

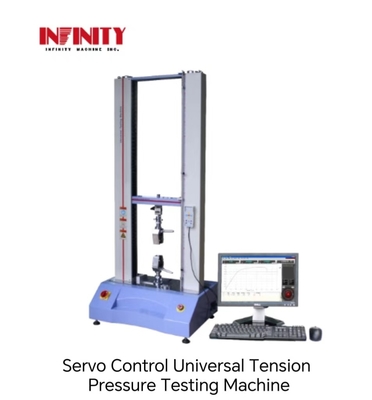

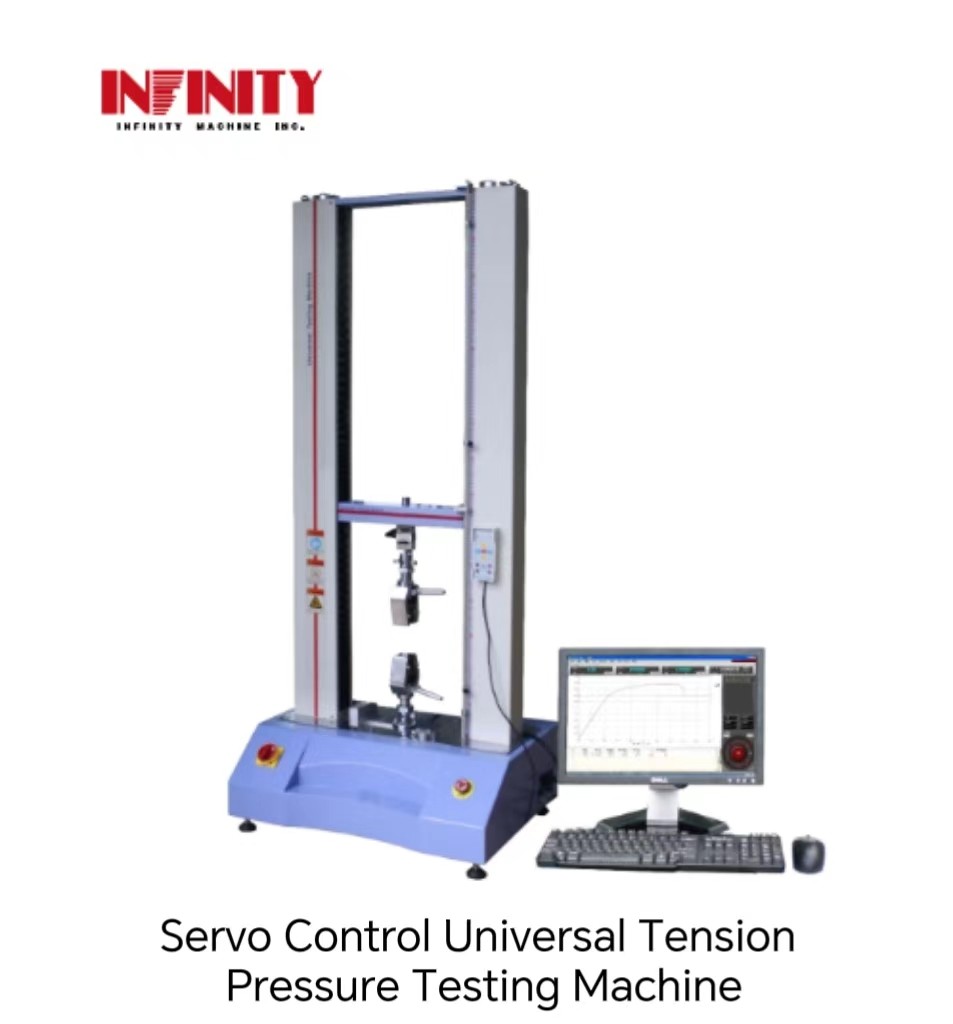

Double Column AC Servo Universal Tensile and Compressive Strength Testing Equipment
Model Number:IF2441A
Application:
Suitable for metal wire, metal foil, metal sheet and metal tape, rubber, plastic, sea/foam, waterproof material, wire and cable, textile, net rope, non-woven fabric and other materials tensile, compression, bending, stripping, shearing, tearing, bursting, puncture, fatigue and other tests.
Standards:
This testing machine is based on the <electronic universal testing machine> GB/T 16491-2008, <General Technical requirements for Testing machine> GB2611-2007, <Testing of tensile and compression testing machine force measurement system>, <extension meter technical conditions> JB6146-2007, <General Specifications for the Licensing and Assessment of Manufacturing Measuring instruments>JJF1246-2010 standard manufacturing.

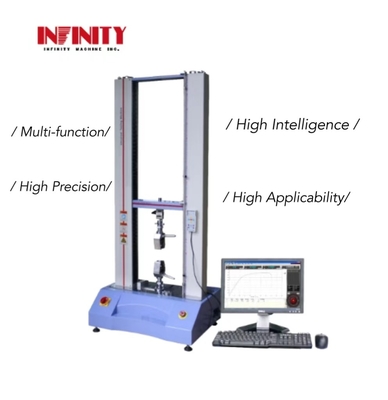

Features:
1.Multi-function:
With different fixtures, tensile, compression, bending, shearing, tearing, stripping and other tests can be carried out.
2.High precision:
Japan Panasonic AC servo motor drive, high-precision no-backlash ball screw transmission, with the United States TRANSCELL high-precision explosion-proof LOADCELL, force accuracy up to: ±0.5%; Displacement accuracy up to 0.01mm.
3.High intelligence:
Automatic identification of fracture, automatic return, curve multi-combination functions, such as load-displacement, load-time, displacement-time stress-strain, strain-time, stress-time and other curve analysis.
4.High applicability:
9 languages can be switched: simple/traditional Chinese, English, Japanese, German, French, Russian, Spanish, Portuguese, universal.
Specification parameter:
| Model | IF2441A |
| Force capacity | 5000Kg(50KN) |
| Unit of force value: (switchable) | N, KN, gf,Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² |
| Force value resolution | 1/500,000 |
| Force accuracy | ±0.5% |
| Test trip | 600mm |
| Effective width of test space | 400mm |
| Testing speed | 0.01~500mm/min |
| Velocity accuracy | ±0.5% |
| Displacement resolution | 0.01mm |
| Motor | AC servo motor |
| Transmission rod | High precision ball screw |
| Equipment Size: (WxDxH) | 830x670x1940mm |
| Weight | 350 kg |
| Power | AC220V 50/60Hz or specified by user |
Testing software:
Professional test report:
A report developed based on Crystal Reports version 10.0, which can automatically calculate strength, elastic modulus E RP0.2,ReL,ReH, Extension rate, report header and content can be freely modified, and curves are automatically generated. Can be exported in Excel, PDF, and other formats.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintenance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Universal Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
