| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE10A1 series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Programmable Constant Temperature And Humidity Test Chamber | Model: | IE10A1 Series |
|---|---|---|---|
| Applicable Standard: | GJBl50.3-2009(MIL-STD-810D) High Temperature Test Method | Capacity: | 150L,225L,408L,800L,1000L |
| Temperature Range: | -20℃ ～ +150℃ | Humidity Control Range: | 20%R.H～98%R.H |
| Heating Rate: | From -20℃ To +100℃ Within 40 Min (No Load, Ambient Temperature +25℃) | Temperature Decrease Rate: | From +20℃ To -20℃ Within 40 Min (No Load, Ambient Temperature +25℃) |
| Power: | Electronic | Warranty: | 1 Year |
| Highlight: | High Temperature Test Chamber,Temperature Humidity Test Chamber,Humidity Test Chamber |
||
GJBl50.3-2009(MIL-STD-810D) High Temperature Test Temperature and Humidity Test Chamber
Product model: IE10A1 series
Equipment Overview:
This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low temperature, high temperature, constant wet heat, alternating-wet heat test equipment for environmental test equipment of electrical and electronic products basic Parameter Verification Method".
Range of application:
Suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.
Applicable standards:
Specification parameter:
| Model |
IE10A1150L |
IE10A1225L |
IE10A1408L | IE10A1800L | IE10A11000L | |||||
| Temperature range |
-20℃ ～ +150℃ |
|||||||||
| Temperature fluctuation |
±0.5℃ |
|||||||||
|
Temperature uniformity
|
≦2.0℃ |
|||||||||
| Heating rate |
From -20℃ to +100℃ within 40min (No load, ambient temperature +25℃) |
|||||||||
| Temperature decrease rate |
From +20℃ to -20℃ within 40min (No load, ambient temperature +25℃) |
|||||||||
| Humidity control range |
20%R.H～98%R.H |
|||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity evenness |
±3.0％RH (no-load test) |
|||||||||
| humidity fluctuation |
±1.0％RH |
|||||||||
|
Inner box size WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Outside box size WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Fluid warmers |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole ● Inner wall material :SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||||
| Door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||||
| Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||||
| Lighting device |
1 set LED lighting device, installed on the window. |
|||||||||
| Sample holder |
Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. |
|||||||||
| Refrigeration compressor |
France Tecumseh fully closed compressor |
|||||||||
| Refrigerant | Non-fluorine environmental refrigerant R404A, in line with environmental regulations, safe and non-toxic | |||||||||
| Condenser system |
Air-cooled |
|||||||||
| Safety protection device |
Heater anti-burning protection; Humidifier anti-burn protection; Heater overcurrent protection; Humidifier overcurrent protection; Circulating fan overcurrent overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor overcurrent protection; Overvoltage underinverse-phase protection; Circuit breaker; Leakage protection; Humidifier low water level protection; Tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||

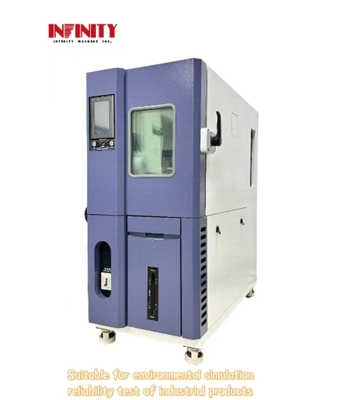

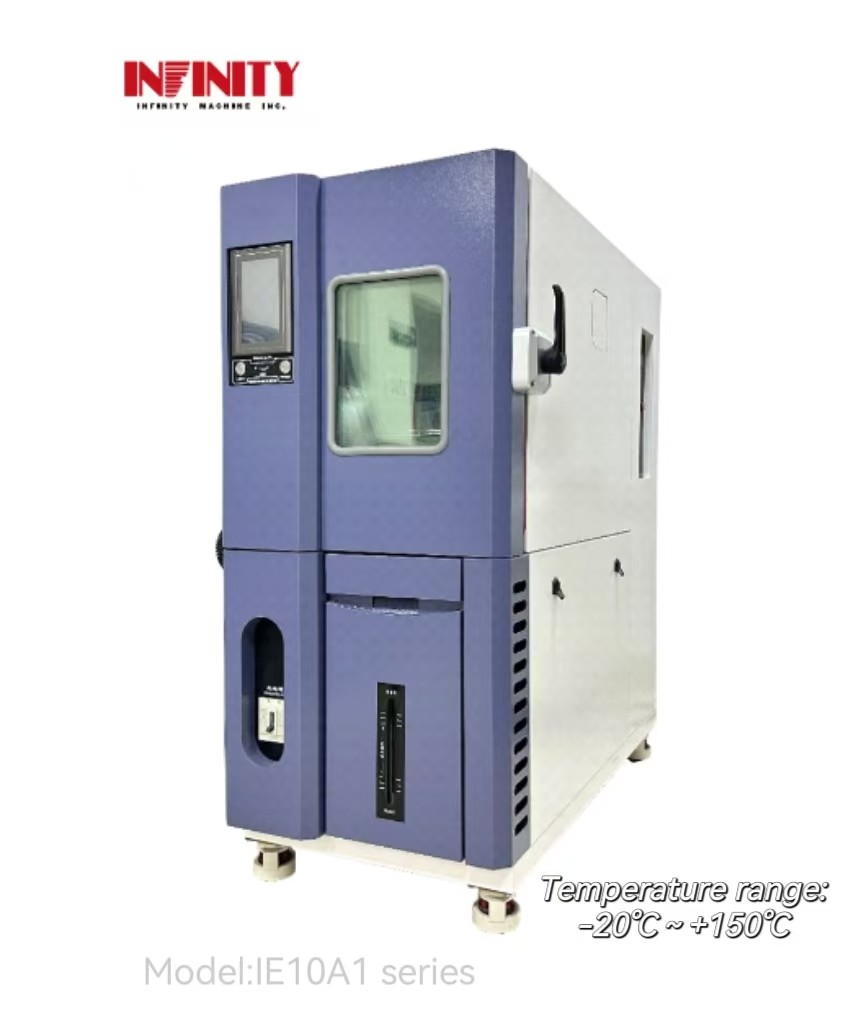

Equipment picture:
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
