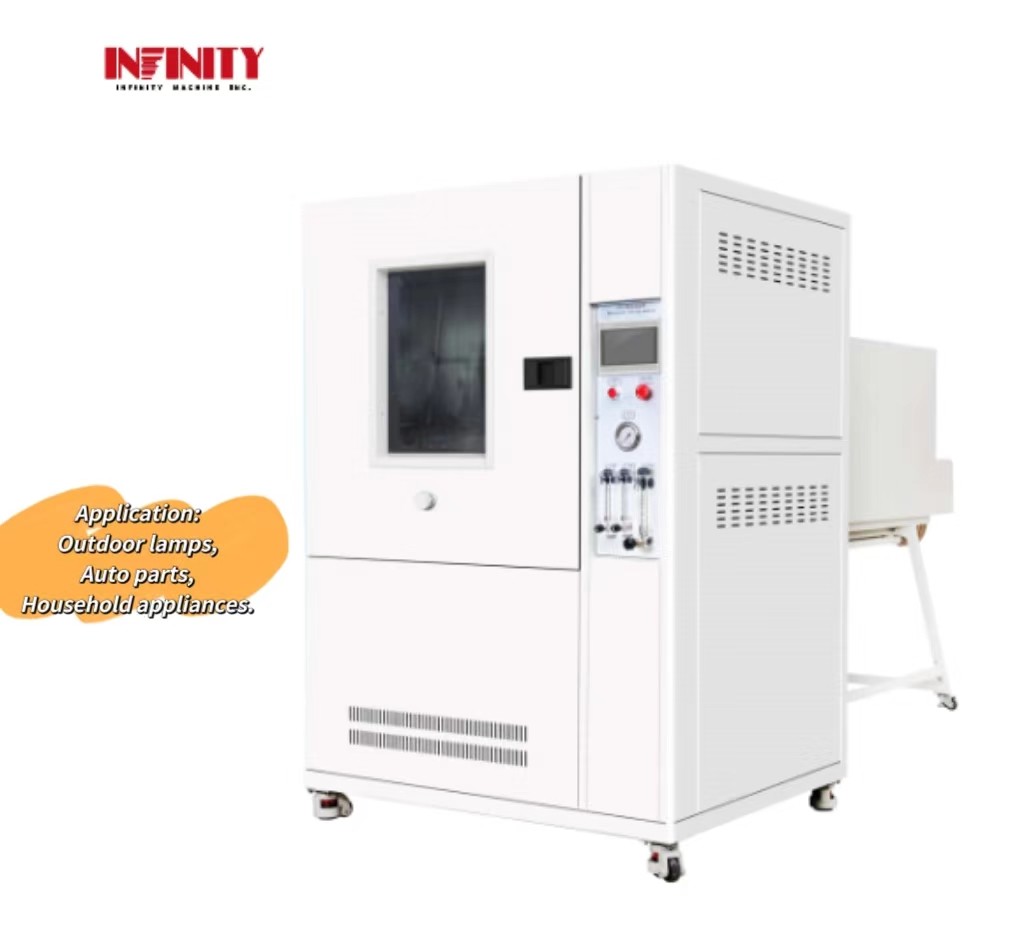

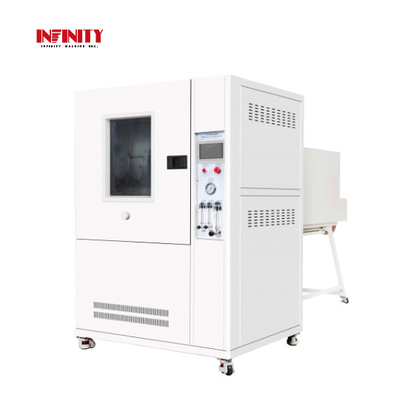

Electrical Components IPX1~6 Waterproof Rating Test Comprehensive Rain Test Chamber

          Electrical Components IPX1~6 Waterproof Rating Test Comprehensive Rain Test Chamber
                                                                                                Model:IE51


Equipment Overview:
Applications: Outdoor lamps, household appliances, auto parts and other electronic and electrical products.
Equipment function: The main role of the equipment is used for electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts and other products in the simulation of rain, splashing, spraying weather conditions, the physical and other related performance of the product test. After the test, through the verification to determine whether the performance of the product meets the requirements, in order to facilitate the design, improvement, verification and factory inspection of the product.

Standards:
Compliant with IEC60529:1989 +A1:1999 +A2: 2013 Degrees of protection provided by enclosures(IP Code), GB4208-2017 Degrees of Protection provided by Enclosures (IP Code) 14.2.1, 14.2.2, 14.2.3, 14.2.4 Terms and requirements of Figures 3 and 4.

Features:

• Applicable to IPX1, IPX2, IPX3, IPX4, IPX5, IPX6 waterproof grade test of products.
• The shell is made of domestic high quality steel plate, the surface is sprayed with baking paint, beautiful and durable.
• The inner box, turntable, pendulum tube, etc., are made of SUS304# stainless steel plate to ensure that there is no rust for a long time.
• Box-type structure; With water tank, circulation water; Automatic water control, and low water level alarm detection.
• The door has a transparent observation window (tempered glass material), and the LED light is installed in the box to facilitate the              observation of the internal test situation.
• IPX1, 2: Drop water tank adopts vacuum design, stainless steel material; The nozzle contact position adopts brass conical design for easy installation of water nozzle.
• IPX1,2:With compressed air drying function, after the completion of the test, the excess water can be removed from the drip box to avoid water fouling and plugging the pinhole. (Note: Air supply required by user)
• IPX3,4:The pendulum tube drive adopts domestic high-quality stepper motor, the pendulum tube speed and Angle are accurate and adjustable, and there is no out-of-step problem (out-of-step: it will cause the pendulum tube to act abnormally and crash into the middle turntable shaft, causing equipment damage)
• IPX5,6:Manufactured according to IEC60529 specifications (as shown below) :
•
• Filtration measures: the standard high-precision filter can effectively filter impurities in tap water; The filter element can be replaced regularly.
• Turntable drive: The use of domestic high-quality stepper motor, speed and Angle can be set on the touch screen (adjustable), accurate stepless adjustable within the standard range, and can automatically control positive and negative rotation (positive and negative rotation: suitable for sample power testing, to prevent winding).
• The test box is equipped with a sample power socket (AC220,10A), and the sample power on and off time can be controlled by the program: power off (0-999min) - power on (0-999min) - power off (0-999min), which is suitable for the sample to be on and off during the test.
• The test time can be set on the touch screen, and the setting range is 0-999min(adjustable).
• Core control system adopts 7 inch touch screen + Panasonic PLC, electrical components such as LS, Omron and other imported brands, wiring process in line with national standards, reasonable layout of the board, solid wiring, clearly marked.

Specification parameter:

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.

Product Packaging:

The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
