| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | IE31A series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Programmable Thermal Shock Test Chamber | Standard: | GJB367. 2-87 405 Temperature Shock Test |
|---|---|---|---|
| Feature: | Simple Operation;High Reliability;Energy Saving And Consumption Reduction | Model: | IE31A Series |
| Temperature Range: | -55℃ ～ +150℃ | Capacity: | 80L,100L,150L,225L,408L |
| Condenser Mode: | Air-cooled;water-cooled | Power: | Electronic |
| Warranty: | 1 Year | ||
| Highlight: | 405 Temperature Shock Test Chamber,Cold Hot Shock Chamber,Programmable Cold Hot Shock Chamber |
||

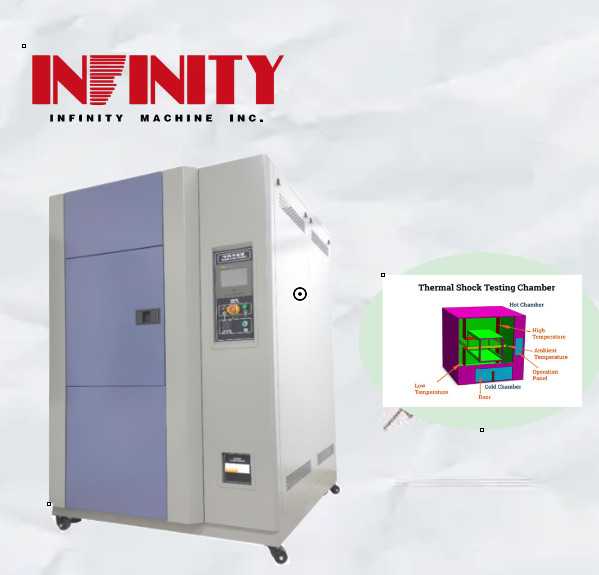

Lab GJB367. 2-87 405 Temperature Shock Test Programmable Cold and Hot Shock Chamber
Product model: IE31A series
Equipment overview:
For users to the whole machine (or parts), electrical appliances, instruments, materials, coating, coating for the corresponding climate mutation test, suitable for electrical, electronics, machinery industry and other products, parts, materials, such as high and low temperature, humidity test, simulate the temperature and humidity changes under the condition of cold and hot impact test, so as to evaluate the quality of the test products.
Standards:
GB/T2423.1-2001 Low temperature test method; GB/T2423.2-2001; GB/T2423.22-1989 temperature change test; military standard GJB150.3-86; military standard GJB150.4-86; military standard GJB150.5-86; GJB150.5-86 temperature impact test; GJB360.7-87 temperature shock test; GJB367. 2-87 405 Temperature shock test; J / T10187-91Y73 series temperature change test box-three box type; meet the standard IEC68-2-14_ test method N_ temperature change.
Features:
Specification :
|
Model |
IE31A80L |
IE31A100L |
IE31A150L |
IE31A225L |
IE31A408L |
|||
| Temperature range |
-55℃ ～ +150℃ |
|||||||
| Temperature fluctuation |
±1℃ |
|||||||
| Temperature uniformity |
≦2.0℃ |
|||||||
|
Temperature recovery time |
Within 5Minc |
|||||||
|
Heating rate (heat storage area) |
Up from RT to + 150℃ About 40min |
Up from RT to + 150℃ About 50min |
||||||
|
Cooling rate (cold storage area) |
Down from RT to-55℃ About 65min |
Down from RT to-55℃ About 70min |
||||||
|
Inner box size: WxHxD(mm ) |
500x 400x400 |
500x 400x500 |
500x 600x500 |
500x750x600 |
600×850×800 | |||
|
Outer box size: WxHxD(mm ) |
1480×1450×1950 |
1480×1485×2050 |
1500×1750×2150 |
1600×1900×2250 |
1800x2000x2500 | |||
|
Thermal insulation box |
● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the chamber is φ 50mm hole. ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
|||||||
|
Box door |
Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. |
|||||||
| Observation window |
W300 H400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. |
|||||||
| Sample holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | |||||||

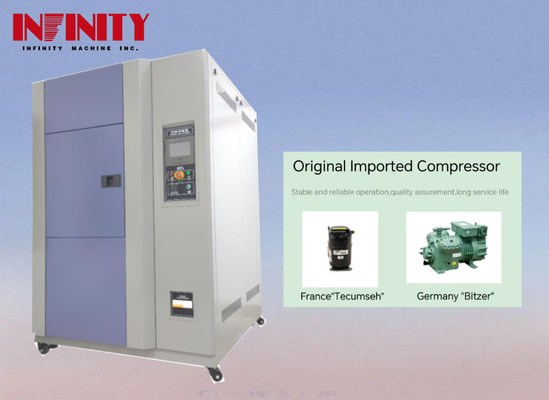

| Refrigeration compressor | France Tecumseh fully closed compressor | German Bitzer Half-compact compressor | German Bitzer Half-compact compressor | German Bitzer Half-compact compressor | German Bitzer Half-compact compressor | |||
| Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | |||||||
| Condenser mode | air-cooled | water-cooled | water-cooled | water-cooled | water-cooled | |||
| Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheating protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | |||||||
| Source | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW | |||
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
