| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE ISO |
| Model Number: | ID6151 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200SETS PER MONTH |
| Product Name: | Falling Dart Impact Testing Machine | Model: | ID6151 |
|---|---|---|---|
| Measuring Range: | 300g-2000g | Impact Height: | 660-1500mm |
| Equipment Input Voltage: | AC220V 50Hz , 2A | Equipment Power: | 100W |
| Equipment Pressure: | 0.6MPA | Warranty: | 1 Year |
| Highlight: | 300g Falling Dart Impact Testing Machine,2000g Falling Dart Impact Testing Machine,Precision Falling Dart Impact Testing Machine |
||

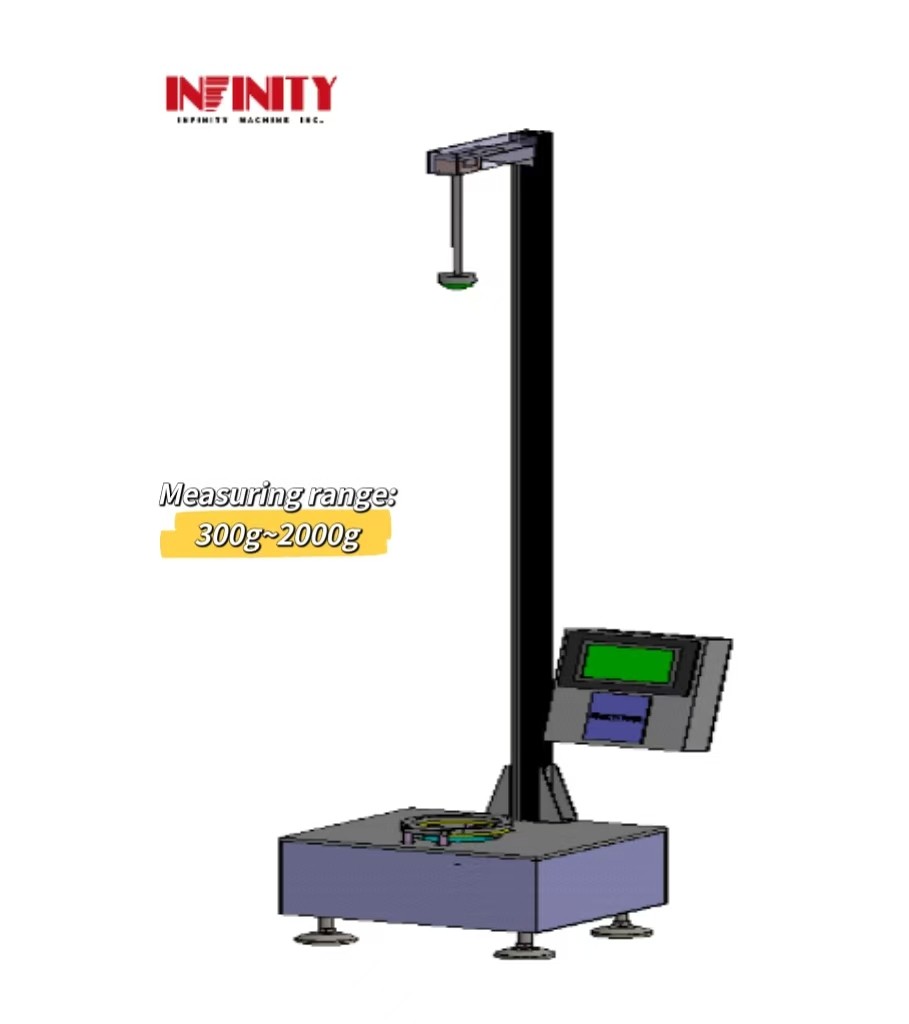

High Precision Falling Dart Impact Testing Machine Measuring Range 300g-2000g
Model:ID6151
Equipment functions and features:
This equipment is suitable for plastic film and thin sheet with thickness less than 1mm, free to do drop dart test at a given height. Determination of the energy of plastic film and wafer samples when the number of breakage reaches 50%. Expressed as impact damage mass. The significance of the drop dart test is that it can effectively avoid the occurrence of packaging surface damage when the packaging material is impacted and dropped due to insufficient toughness, so as to improve the impact resistance of the material.
Equipment Composition:
Pneumatic fixtures; Falling dart adsorption component.
Equipment technical parameter:
|
Projects |
Specifications |
|
Measuring range |
300g-2000g |
|
Impact height |
660-1500mm |
|
Equipment input voltage |
AC220V 50Hz , 2A |
|
Equipment power |
100W |
|
Equipment pressure |
0.6MPA |
|
Equipment size |
W400xD350 x 2180 mm |
|
Equipment weight |
50KG |

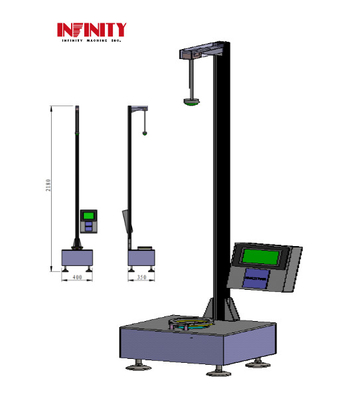

Equipment appearance dimensions:

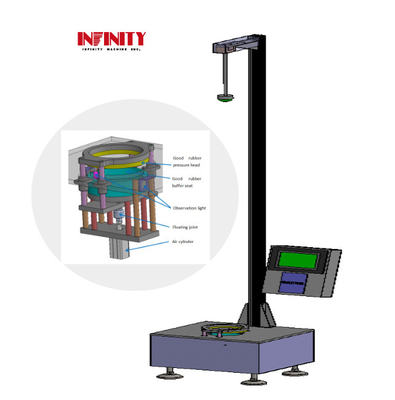

Detailed description of equipment structure:
Equipment characteristics:
1,The 7-inch HMI human-machine interface LCD touch screen facilitates parameter settings and experimental operations.
2,Support two experimental methods, A method and B method.
3,Automatic calculation of test results greatly facilitates users and saves time.
4,Drop dart electromagnetic adsorption, fixed position automatic release, sample pneumatic clamping.
5,Professional computer software (optional).
6,There are two test start modes: manual and foot pedal.
7,Built in observation light facilitates the judgment of sample status.
8,Micro printers are convenient for printing test results.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Impact Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
