| Product Name: | Programmable Constant Temperature And Humidity Test Chamber | Model: | IE10 Series |
|---|---|---|---|
| Temperature Range: | -40℃ ～ +150℃ | Humidity Control Range: | 20%R.H～98%R.H |
| Feature: | Energy Saving And Consumption Reduction | Capacity: | 150L~1000L(Customizable) |
| Power: | Electronic | Warranty Period: | 1 Year |
| Highlight: | Industrial Environmental Test Chamber,Humidity Change Environmental Test Chamber,Temperature Change Environmental Test Chamber |
||
Industrial Temperature and Humidity Change Reliability Testing Environmental Test Chamber
Product model: IE10 series
Equipment Overview:
This series of constant temperature and humidity box is suitable for environmental simulation reliability test of industrial products, with the characteristics of temperature and humidity control accuracy and wide control range, and the performance indicators meet the requirements of GB5170.2.3.5.6-95 "Low temperature, high temperature, constant wet heat, alternating-wet heat test equipment for environmental test equipment of electrical and electronic products basic Parameter Verification Method".
Range of application:
Suitable for electrical, electronic, mechanical and other products, parts, materials and other products, high and low temperature, wet and hot test, simulate the temperature and humidity change conditions of products, parts, materials and other quality and reliability test.
Applicable standards:
Specification parameter:
| Model |
IE10150L |
IE10225L |
IE10408L |
IE10800L |
IE101000L |
|||||
| Temperature range |
-40℃ ～ +150℃ |
|||||||||
| Temperature fluctuation |
±0.5℃ |
|||||||||
| Temperature uniformity |
≦2.0℃ |
|||||||||
| Core speed |
From -40℃ to +100℃ within 60min (When no load, ambient temperature +25℃) |
|||||||||
| Cooling rate |
From +20℃ to -40℃ within 60min (When no load, ambient temperature +25℃) |
|||||||||
| Humidity control range |
20%R.H～98%R.H |
|||||||||
| Humidity deviation |
±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
|||||||||
| Humidity uniformity |
±3.0％RH(No load) |
|||||||||
| Humidity fluctuation |
±1.0％RH |
|||||||||
|
Inner box size: WxHxD(mm) |
500x600x500 | 500x750x600 | 600×850×800 | 1000×1000×800 | 1000×1000×1000 | |||||
|
Carton size: WxHxD(mm) |
720×1500×1270 | 720×1650×1370 | 820×1750 ×1580 | 1220×1940 ×1620 | 1220×1940 ×1820 | |||||
| Insulated box |
●Outer wall material: high-quality carbon steel plate, surface treated with electrostatic color spraying. The diameter of the left side of the box is φ50mm hole ● Inner wall material: SUS304# matte stainless steel plate. ● Insulation material: rigid polyurethane foam insulation layer + fiberglass. |
|||||||||
| Box door | For single-door doors, install a door frame heating wire at the door frame to prevent condensation on the door frame at low temperatures. | |||||||||
| Observation window | Install a W 300×H 400mm observation window on the door. Multi-layer hollow electrothermal coated glass can effectively insulate heat and prevent condensation. | |||||||||
| Lighting fixtures |
1 LED lighting device, installed on the window |
|||||||||
| Sample holder |
Stainless steel sample rack with 2 layers, adjustable layer height, load capacity 30kg/layer. |
|||||||||
| Refrigeration Compressors |
French Taikang fully enclosed compressor |
|||||||||
| Refrigerant | Non-fluorine environmentally friendly refrigerant R404A, complies with environmental regulations, safe and non-toxic | |||||||||
| Condenser method |
Air-cooled |
|||||||||
| Safety protection device |
Heater air-fire protection; humidifier fire-proof protection; heater over-current protection; humidifier over-current protection; circulation fan over-current and overload protection; compressor high-voltage protection; compressor over-heat protection; compressor over-current protection; over-voltage Under reverse phase protection; circuit breaker; leakage protection; humidifier low water level protection; Water tank low water level warning. |
|||||||||
| Power supply | AC220V;50Hz;4.5KW | AC380;V50Hz;6KW | AC380;V50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | |||||

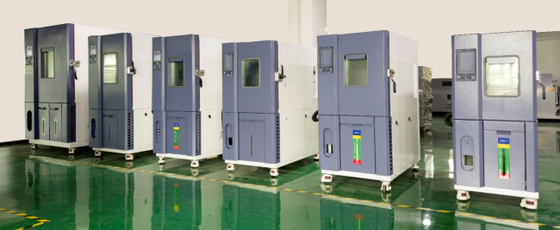

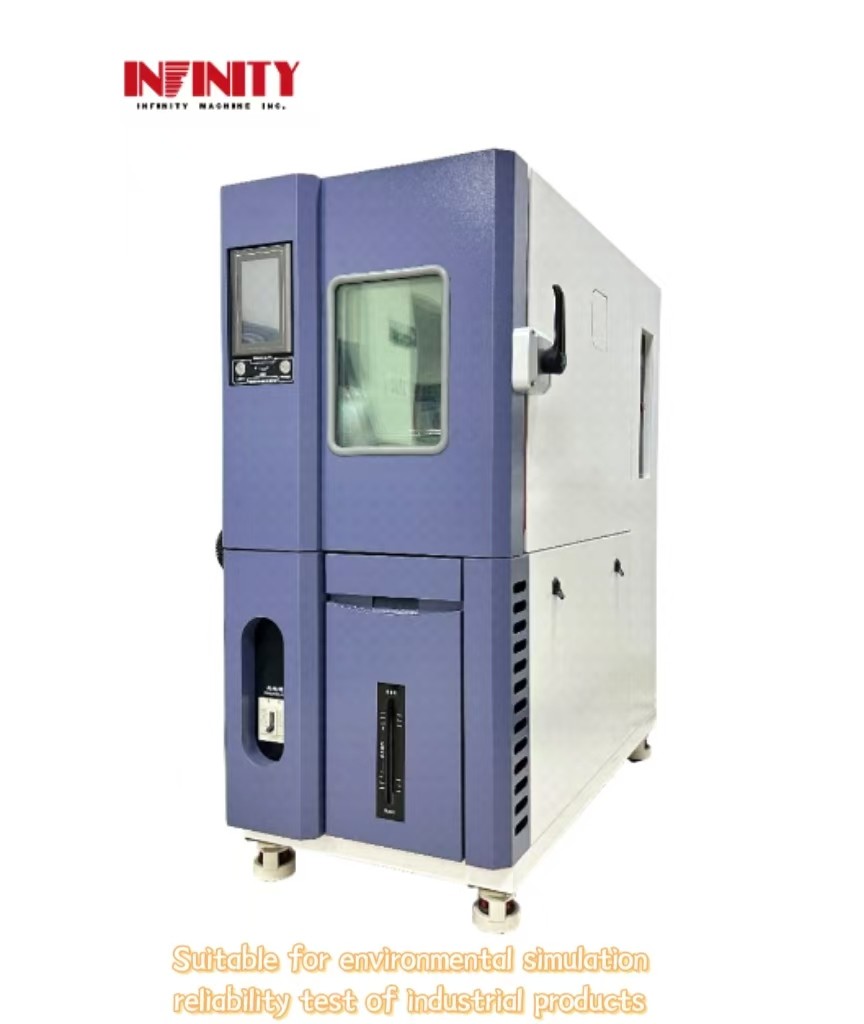

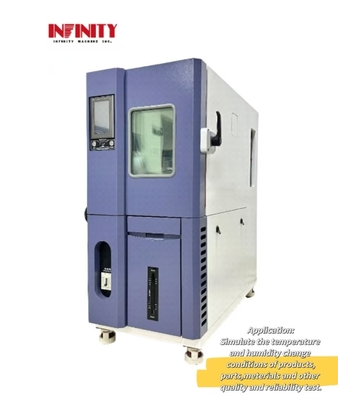

Equipment picture:
Support and Services:
The Environmental Test Chamber product technical support and services include:
- Installation and setup guidance
- Calibration and maintenance services
- Troubleshooting and repair assistance
- Software updates and upgrades
- Training and education on machine operation and safety
- Consultation on testing standards and procedures
Product Packaging:
The Environmental Test Chamber will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
